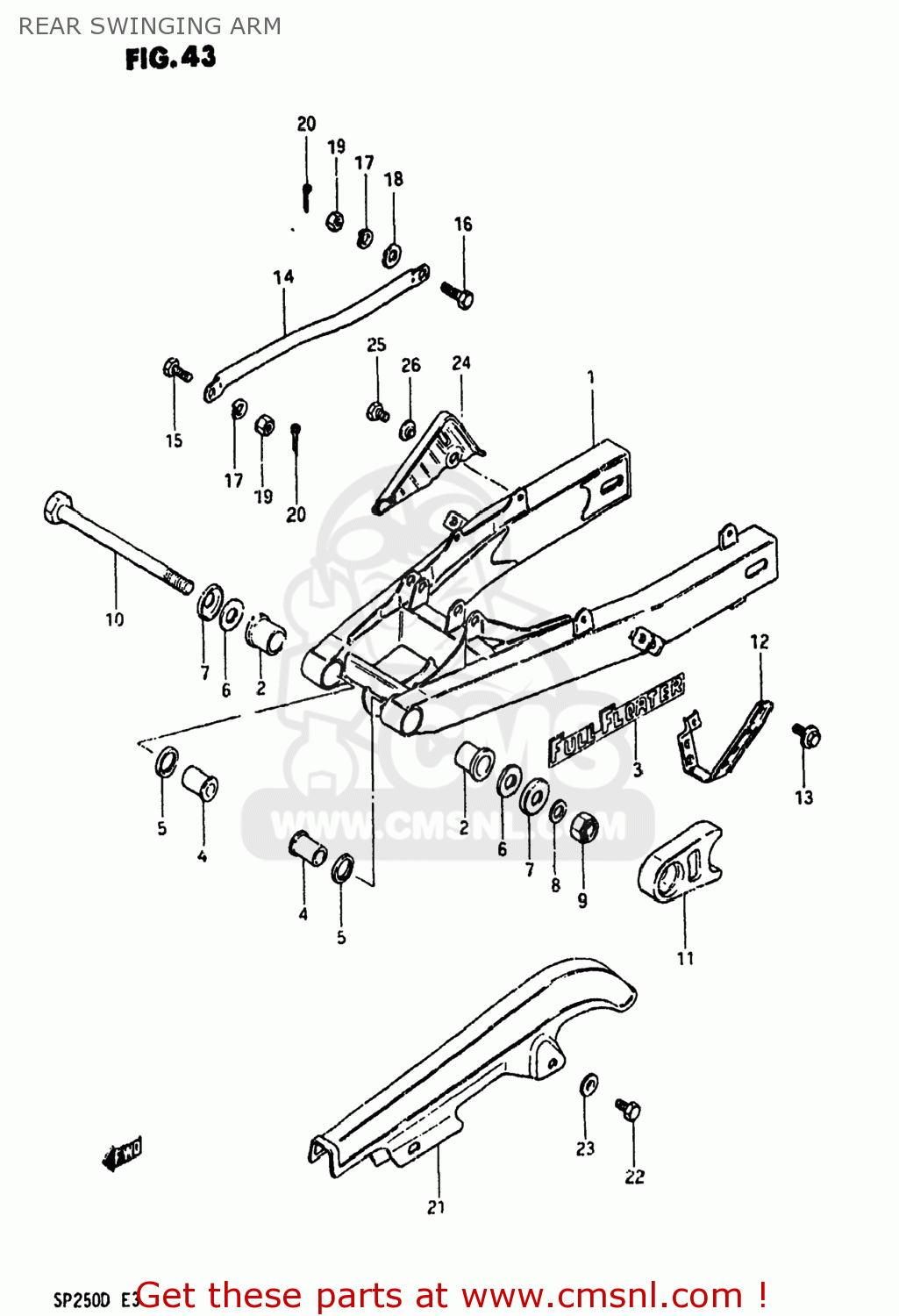

REAR SWINGING ARM

ref

part #

description

quantity

1-1

610003820008C
ref: 1-1
61000-38201-08C

SWING ARM ASSEMBLY,REAR

€ 123.50

1-2

610003827008C
ref: 1-2

SWINGING ARM, REAR

€ 0.00

2

6126138200
ref: 2

BUSHING,RR SWGARM PIVOT

€ 13.50

3-1

683812040064D
ref: 3-1

EMBLEM

€ 4.50

3-2

683811411069L
ref: 3-2

EMBLEM,REAR SWING ARM

€ 4.50

4

6125138200
ref: 4

SPACER,RR SWGARM PIVOT OUTER

€ 16.50

5

0928620001
ref: 5

SEAL,OIL(20X27X5)

€ 2.50

6

0821115341
ref: 6

WASHER

€ 2.00

7

6126238200
ref: 7
61262-22A00

COVER,REAR SWING ARM DUST

€ 7.50

8

0832211148
ref: 8
08322-01147

WASHER

€ 2.00

9

0831921148
ref: 9
08319-2114A

NUT 14MM

€ 3.00

10

6121138200
ref: 10
64711-26B00

SHAFT,REAR SWING ARM

€ 33.00

11

6127338200
ref: 11

BUFFER,CHAIN TOUCH DEFLECTOR

€ 9.00

12

6134130500
ref: 12
61341-30501

GUIDE,CHAIN

€ 13.00

13

0151708128
ref: 13
01550-08127

BOLT 8X12

€ 3.50

14

643113100108C
ref: 14

LINK,REAR TORQUE

€ 15.00

15

0911108012
ref: 15

BOLT(8X22.5)

€ 3.00

16

0911108013
ref: 16

BOLT(8X26.5)

€ 3.00

17

0832121088
ref: 17
08321-01087

LOCK WASHER

€ 2.00

18

0832211088
ref: 18
08322-01087

WASHER

€ 2.00

19

0914008008
ref: 19

NUT

€ 1.50

20

0411120208
ref: 20
04111-2020A

PIN 20X20

€ 1.50

21-1

6131138201291
ref: 21-1
61311-38203

CASE,CHAIN

€ 35.00

21-2

6131138202291
ref: 21-2
61311-38203

CASE,CHAIN

€ 35.00

22

0910006092
ref: 22
09100-06157

BOLT 6X8

€ 2.50

23

0916906026
ref: 23

WASHER

€ 2.00

24

6139138200
ref: 24

GUARD,PILLION FOOT

€ 0.00

25

0910006092
ref: 25
09100-06157

BOLT 6X8

€ 2.50

26

0916906026
ref: 26

WASHER

€ 2.00
