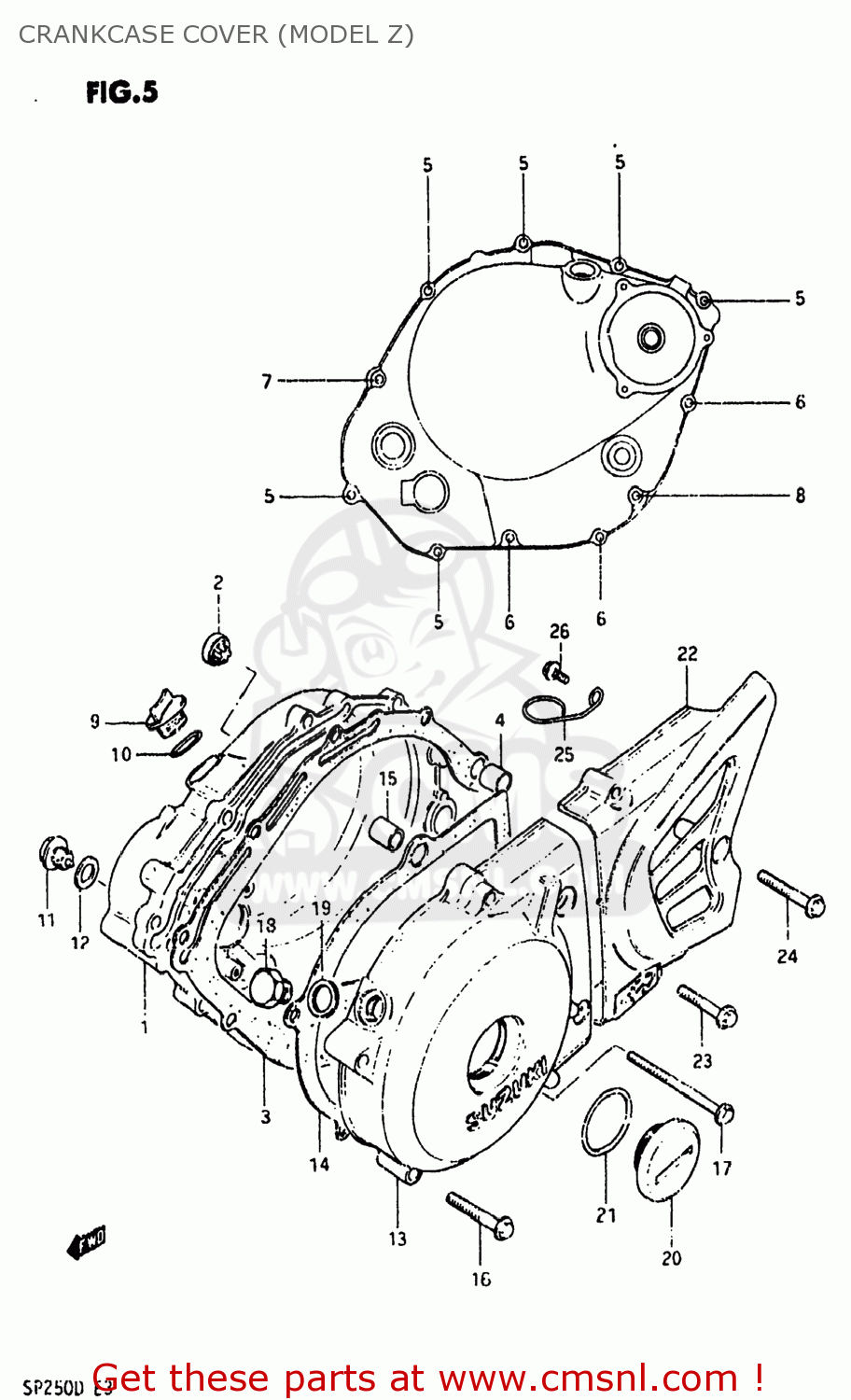

CRANKCASE COVER (MODEL Z)

ref

part #

description

quantity

1

1134038200
ref: 1
11340-38201

COVER,CLUTCH

€ 79.00

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148238200
ref: 3
11482-38212

GASKET,CLUTCH COVER (MCA)

€ 33.50

4

0920613001
ref: 4
04211-13189

PIN

€ 2.50

5

0154706258
ref: 5
01547-06257

BOLT

€ 2.50

6

0154706358
ref: 6
01547-06357

BOLT (6X35)

€ 2.50

7

0154706408
ref: 7
01547-06407

BOLT (6X40)

€ 2.50

8

0154706458
ref: 8
01547-06457

BOLT

€ 2.50

9

0925920007
ref: 9

PLUG(20X10)

€ 6.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11

0924714012
ref: 11
09247-14026

PLUG (14X12)

€ 3.50

12

0916814004
ref: 12

GASKET(14X19.2X2) (NAS)

€ 2.50

13

1135138200
ref: 13
11351-38230

COVER

€ 156.50

14

1148338200
ref: 14
11483-38210

GASKET,MAGNETO COVER (MCA)

€ 14.00

15

0920613001
ref: 15
04211-13189

PIN

€ 2.50

16

0154706358
ref: 16
01547-06357

BOLT (6X35)

€ 2.50

17

0154706508
ref: 17
01547-06507

BOLT (6X50)

€ 2.50

18

0924712104
ref: 18

PLUG,12X9

€ 2.50

19

0916812002
ref: 19

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

20

0925936006
ref: 20

PLUG

€ 4.00

21

0928033004
ref: 21

O RING(D:3.1,ID:32.7)

€ 2.50

22

1136138200
ref: 22
11361-38230

COVER,ENGINE SPROCKET

€ 43.50

23

0154405308
ref: 23
01547-05307

BOLT (5*30)

€ 2.00

24

0154405358
ref: 24

BOUT

€ 2.50

25

5862117200
ref: 25

GUIDE

€ 5.50

26

0151706108
ref: 26
01550-06107

BOLT

€ 2.50
