STEERING STEM
SP250 1983 (D) USA (E03)

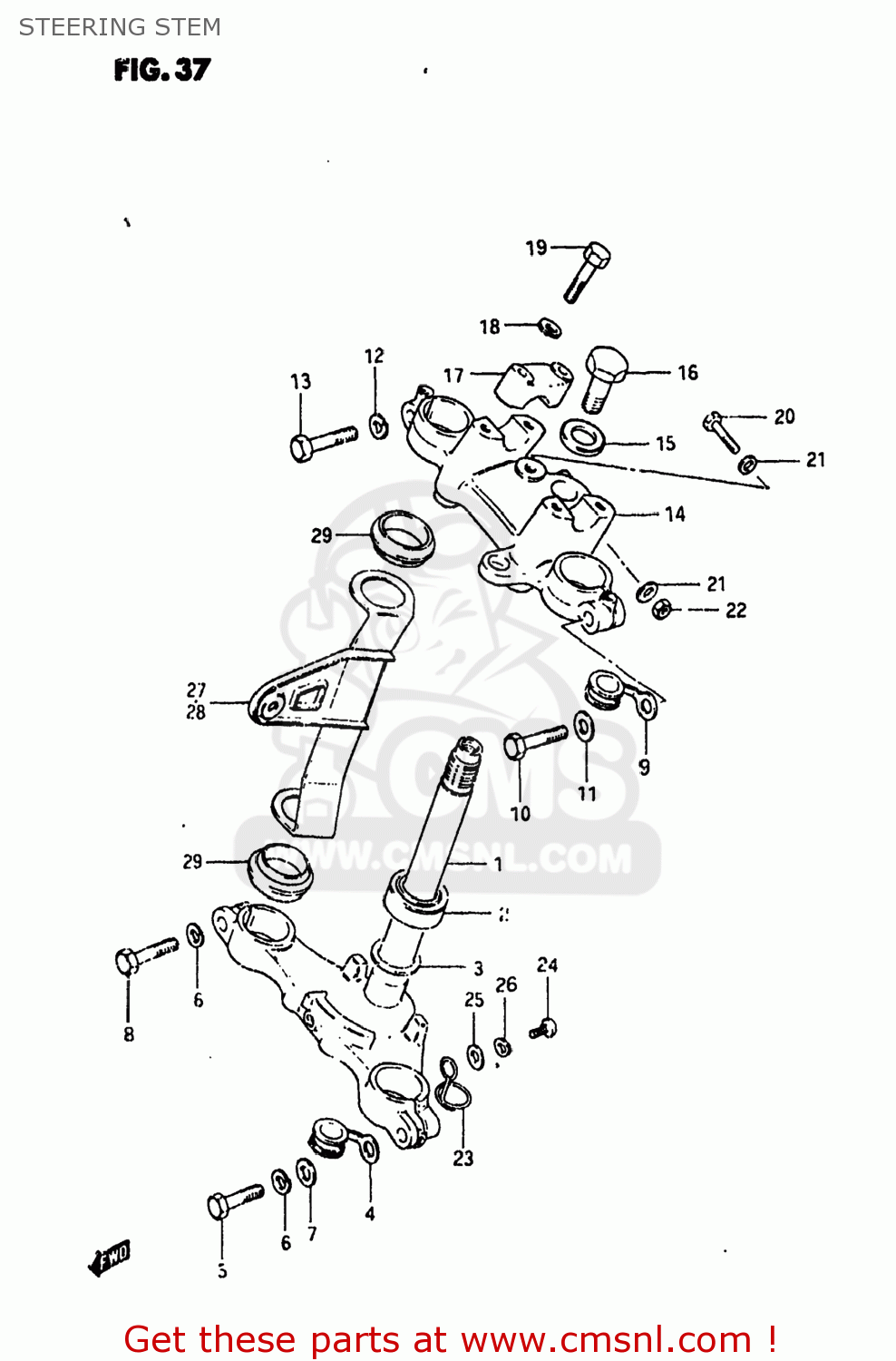

Steering stem diagram SP250 1983 (D) USA (E03)
STEERING STEM SP250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
514103821008C
ref: 1
51410-38230-08C
STEM,STEERING
€ 248.00
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
5145338250
ref: 4
CLIP,CABLE
€ 7.00
5
0110712458
ref: 5
01500-12457
BOLT 12X45
€ 5.50
6
0832121128
ref: 6
08321-01127
WASHER,LOCK 12
€ 2.50
7
0832211128
ref: 7
08322-01127
WASHER
€ 2.00
8
0110412408
ref: 8
01500-12403
BOLT
€ 3.00
9
5145538250
ref: 9
CLAMP,METER CABLE
€ 7.50
10
0110710408
ref: 10
01500-10407
BOLT 10X40
€ 3.00
11
0832211108
ref: 11
08322-01107
WASHER
€ 2.50
12
0832121108
ref: 12
08321-01107
LOCK WASHER
€ 2.00
13
0110710408
ref: 13
01500-10407
BOLT 10X40
€ 3.00
14
513113821008C
ref: 14
HEAD,STEERING STEM
€ 104.50
15
5135641310
ref: 15
WASHER
€ 6.00
16
5135130540
ref: 16
BOLT,STEERING STEM HEAD
€ 5.00
17
562114030008C
ref: 17
HOLDER,HANDLEBAR
€ 7.00
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
0120408357
ref: 19
BOLT
€ 3.50
20
0110708508
ref: 20
01500-08507
BOLT 8X50
€ 3.00
21
0832221088
ref: 21
08322-01087
WASHER
€ 2.00
22
0831012088
ref: 22
08310-00087
NUT
€ 2.00
23
5145248500
ref: 23
CLIP
€ 6.00
24
0211206148
ref: 24
SCREW
€ 2.00
25
0832221068
ref: 25
08322-01067
WASHER
€ 2.00
26
0832121068
ref: 26
08321-01067
LOCK WASHER
€ 2.50
27
5153038210291
ref: 27
51500-38810-291
BRACKET,HEADLAMP,RIGHT
€ 53.50
28
5154038210291
ref: 28
BRACKET,HEADLAMP,LEFT
€ 28.50
29
5155641410
ref: 29
GASKET
€ 6.00
