ELECTRICAL
SP250 1983 (D) USA (E03)

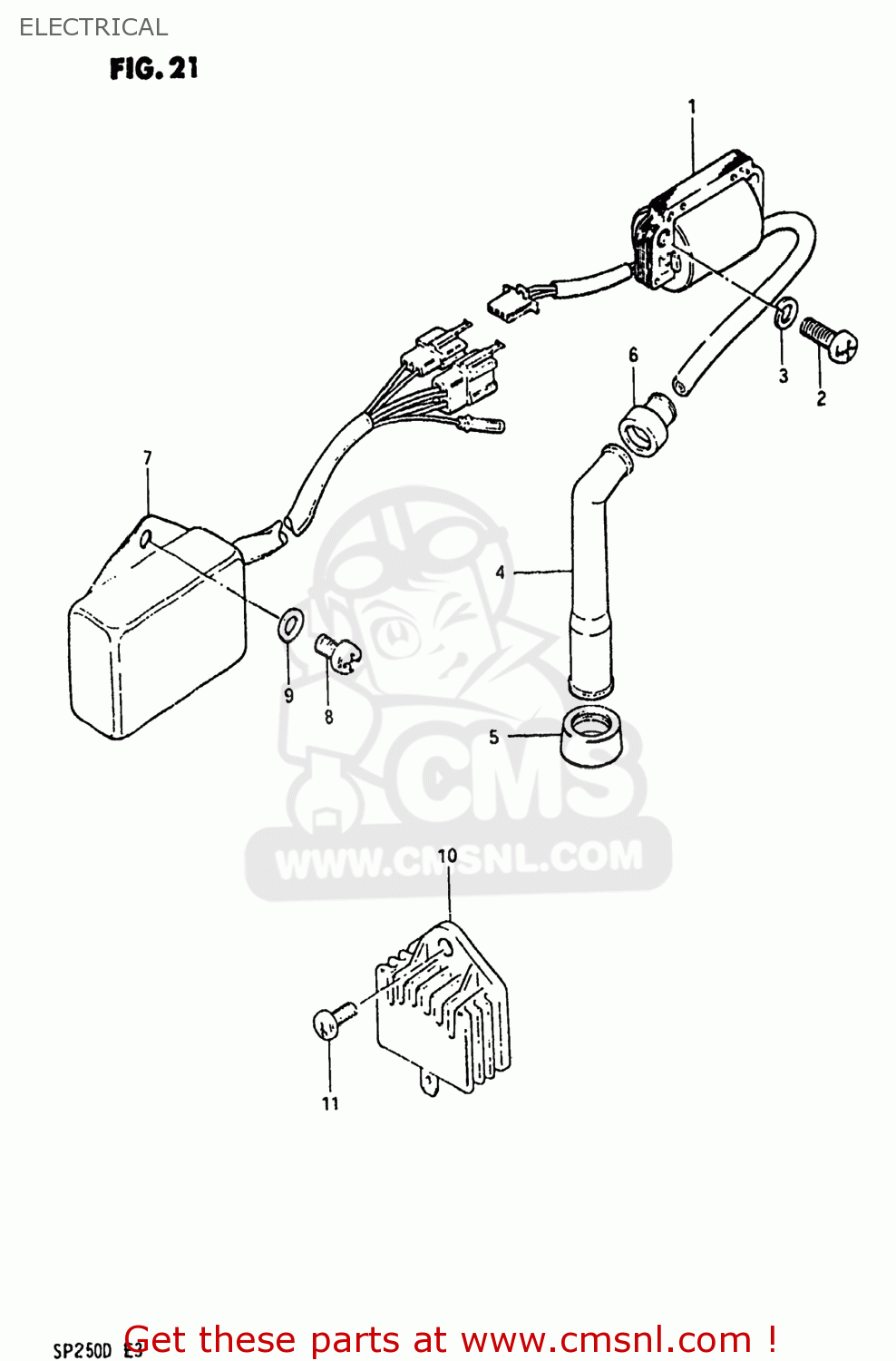

Electrical diagram SP250 1983 (D) USA (E03)
ELECTRICAL SP250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341038210
ref: 1
COIL ASSY,IGNITION
€ 104.50
2
0211206208
ref: 2
02112-06207
SCREW
€ 2.00
3
0832121068
ref: 3
08321-01067
LOCK WASHER
€ 2.50
4
3351045010
ref: 4
CAP ASSY,SPARK PLUG
€ 23.00
5
3354138210
ref: 5
SEAL,SPARK PLUG
€ 7.00
6
3354298000
ref: 6
33542-38B00
SEAL,SPARK PLU
€ 4.50
7
3290038210
ref: 7
IGNITER UNIT ASSEMBLY
€ 313.50
8
0211206108
ref: 8
02112-06107
SCREW
€ 1.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
3280038200
ref: 10
RECTIFIER ASSY,REGULATOR
€ 72.50
11
0211206128
ref: 11
02112-06127
SCREW 6X12
€ 2.00
