CYLINDER

SP250 1983 (D) USA (E03)

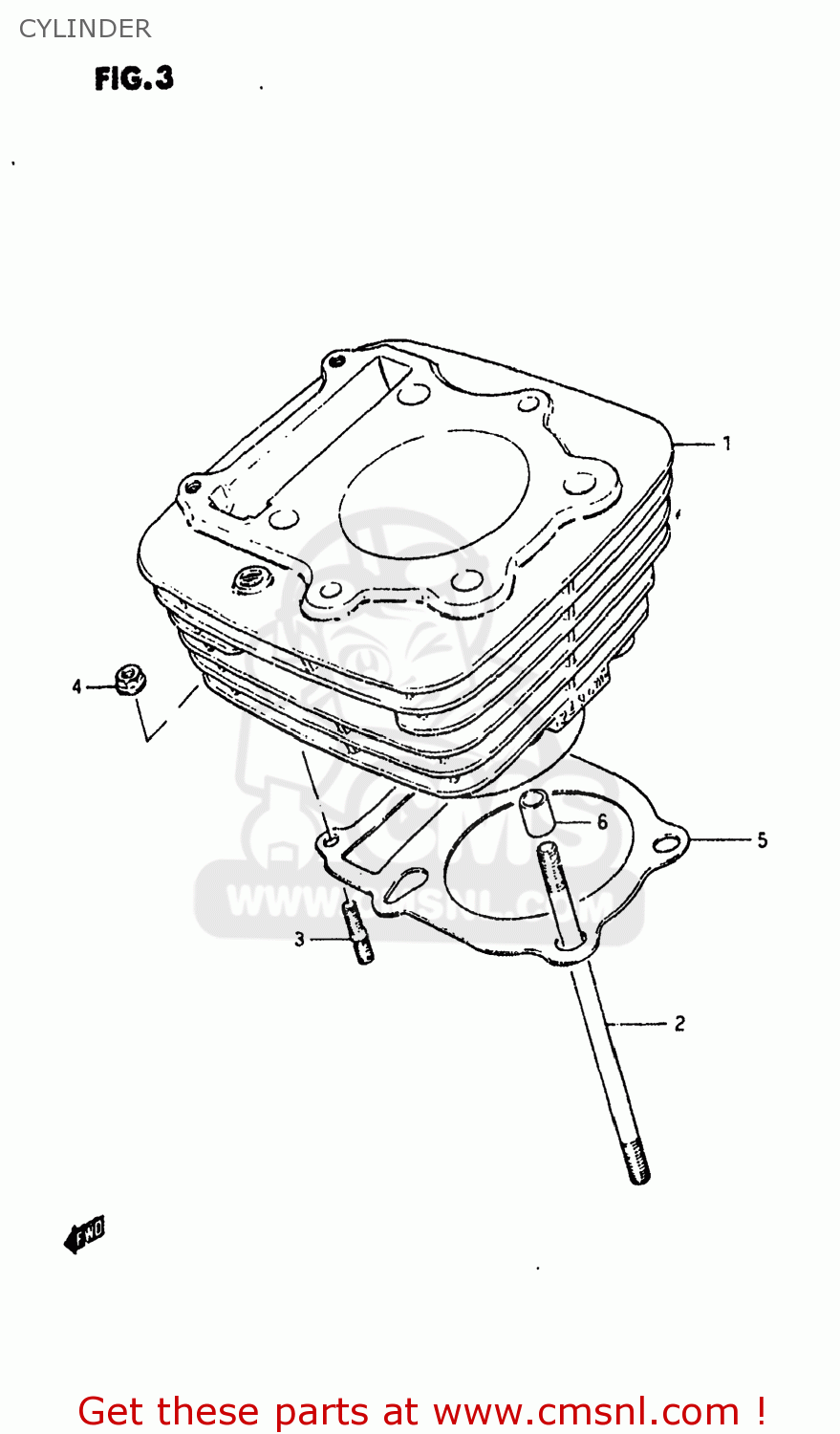

Cylinder diagram SP250 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121038200
ref: 1-1
11210-38204-0F0

CYLINDER

€ 1,003.50

1-2

1121038210
ref: 1-2
11210-38204-0F0

CYLINDER

€ 1,003.50

0910810030
ref: 2

BOLT,STUD

€ 7.50

3-1

0142106258
ref: 3-1
01421-06257

STUD 6X25

€ 2.50

3-2

0142106255
ref: 3-2
01421-0625A

STUD 6X25

€ 2.00

4-1

0831616068
ref: 4-1
08319-31067

NUT

€ 2.50

4-2

0831616065
ref: 4-2
08316-1006B

NUT

€ 2.50

5-1

1124138200
ref: 5-1
11241-38301

GASKET,CYLINDER (MCA)

€ 9.50

5-2

1124138201
ref: 5-2
11241-38301

GASKET,CYLINDER (MCA)

€ 9.50

0920613001
ref: 6
04211-13189

PIN

€ 2.50
