CLUTCH

SV650 2008 (K8) USA (E03)

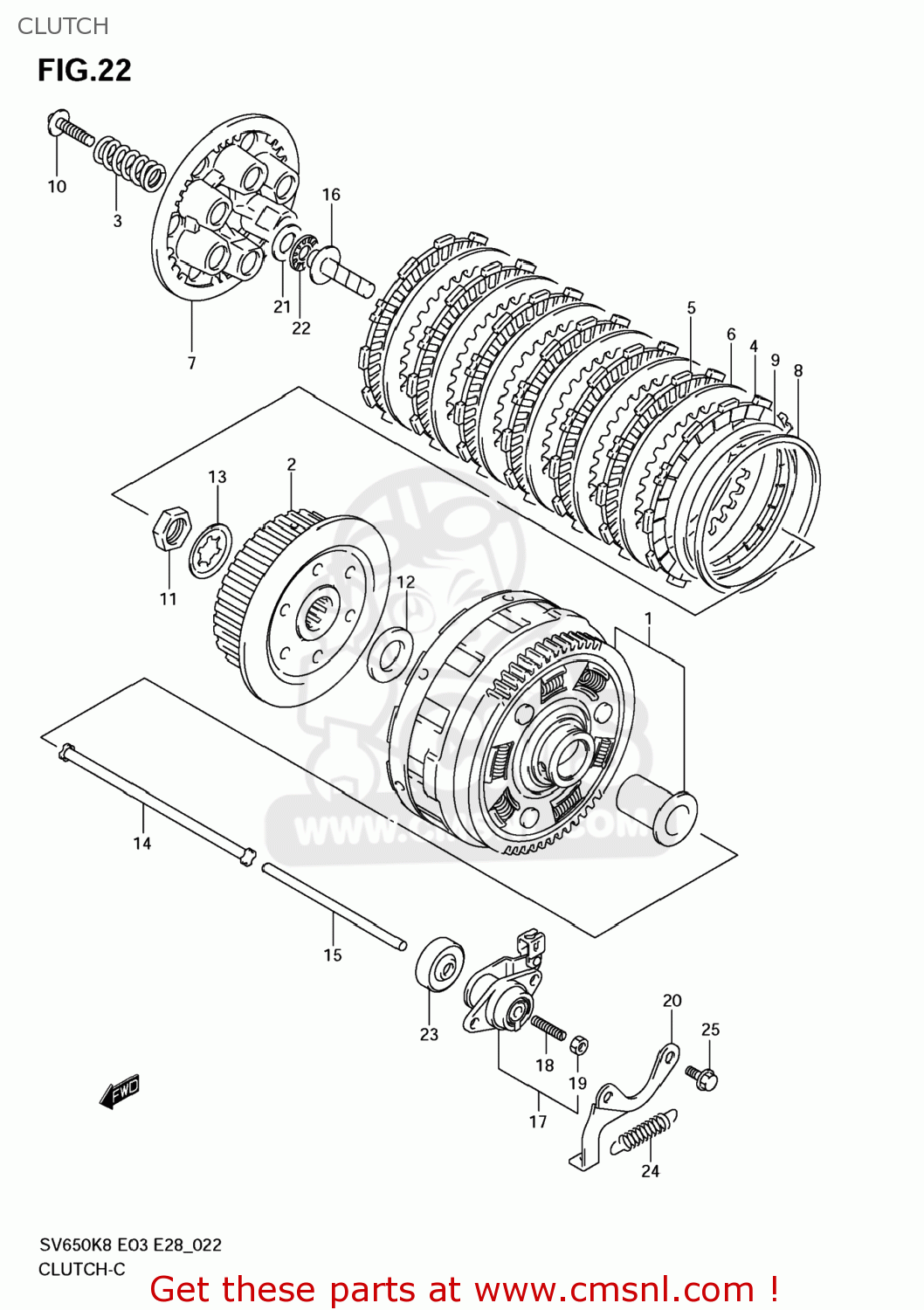

Clutch diagram SV650 2008 (K8) USA (E03)

CLUTCH SV650 2008 (K8) USA (E03)

CLUTCH SV650 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2120017860
ref: 1

GEAR ASSY,PRI DRIVEN

€ 371.00

2

2141144101
ref: 2

HUB,CLUTCH SLEEVE

€ 56.50

3

2141317G01
ref: 3

SPRING,CLUTCH

€ 7.00

4

2144229F00
ref: 4

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 13.50

5

2144129F20
ref: 5

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

6

2145128C31
ref: 6

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 10.50

7

2146214301
ref: 7

DISC,CLUTCH PRESSURE

€ 51.00

8

2147117G00
ref: 8

SEAT,WAVE WASHER

€ 8.50

9

2147217G00
ref: 9

WASHER,CLUTCH PLATE WAVE

€ 15.00

10

0911606203
ref: 10

BOLT(6X30)

€ 2.50

11

0914020001
ref: 11

NUT

€ 3.50

12

0916020067
ref: 12

WASHER(20X36X3)

€ 6.50

13

0916720006
ref: 13
09167-20009

WASHER,LOCK

€ 3.00

14

2311044111
ref: 14

ROD,PUSH,R

€ 13.00

15

2311124A01
ref: 15

ROD,CLUTCH PUSH,L

€ 15.00

16

2312144100
ref: 16

PIECE,CLUTCH PUSH

€ 21.50

17

2320011D00
ref: 17

SCREW ASSY,CLUTCH RELEASE

€ 64.50

18

0913406010
ref: 18

SCREW(6X25)

€ 3.00

19

0831000067
ref: 19

NUT

€ 2.50

20

2322619F01
ref: 20

SUPPORT,CL RLSE RETURN SPRING

€ 6.50

21

0916015045
ref: 21

WASHER(15.5X28X1)

€ 4.00

22

0926315003
ref: 22

BEARING(15X28X2)

€ 7.00

23

0928506015
ref: 23

SEAL,OIL(6X34X5.5)

€ 8.50

24

0944308001
ref: 24

SPRING

€ 3.00

25

015000616B
ref: 25

BOLT

€ 2.00
