FRONT MASTER CYLINDER (SV650K8/K9)
SV650 2008 (K8) USA (E03)

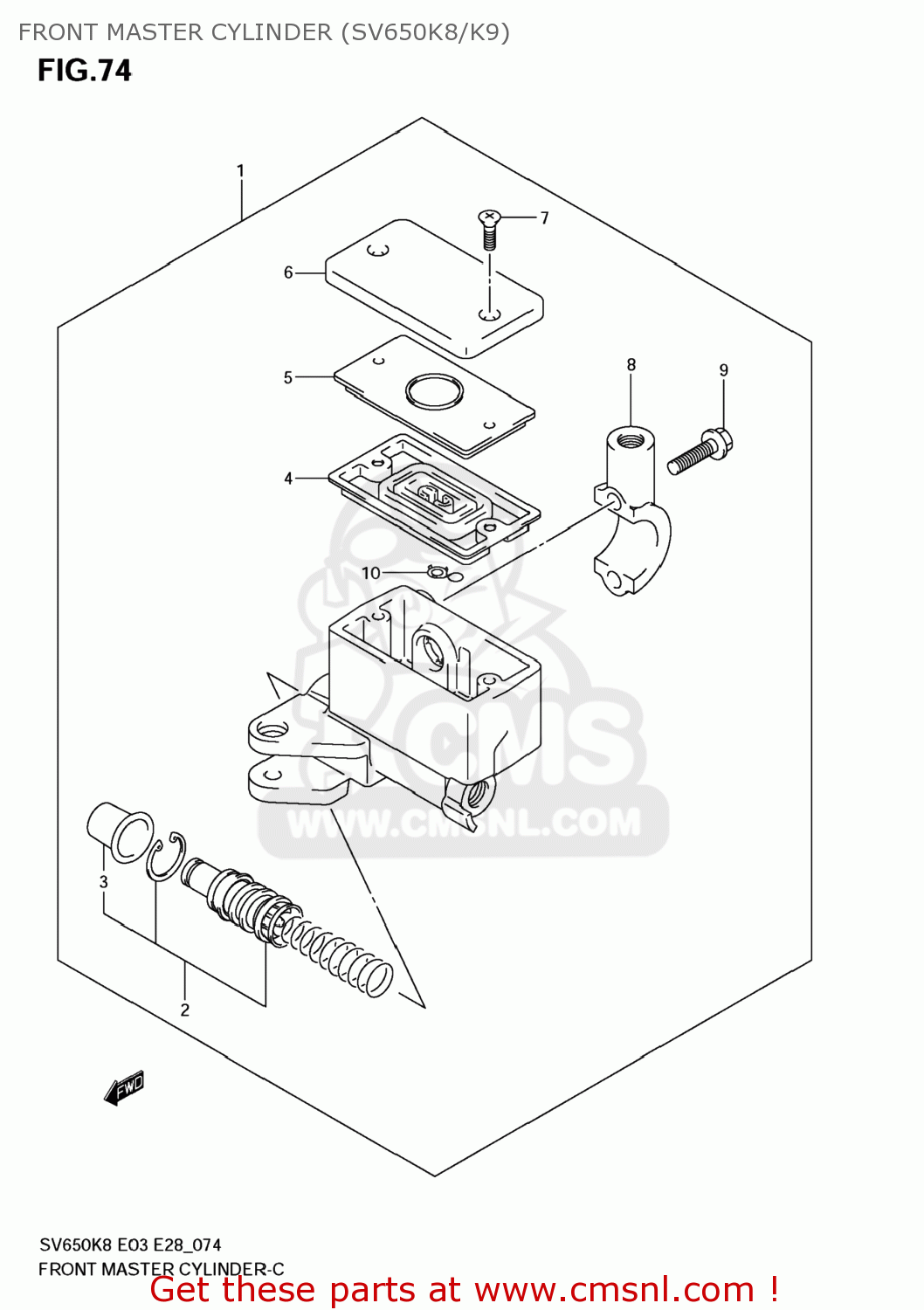

Front master cylinder (sv650k8/k9) diagram SV650 2008 (K8) USA (E03)
FRONT MASTER CYLINDER (SV650K8/K9) SV650 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960042F00
ref: 1
CYLINDER ASSY,FR MASTER
€ 271.00
2
5960045860
ref: 2
PISTON & CUP SET
€ 44.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966749460
ref: 4
5966749460
5
5966841C00
ref: 5
PLATE,DIAPHRAGM
€ 8.00
6
5966910G00
ref: 6
CAP
€ 19.00
7
6968949300
ref: 7
SCREW
€ 1.50
8
5967132F00
ref: 8
HOLDER
€ 17.00
9
5967502FA0
ref: 9
BOLT(6X22)
€ 3.00
10
5966432F00
ref: 10
PROTECTOR
€ 7.50
