REAR WHEEL (SV650AK8/SAK8/AK9/SAK9)
SV650 2008 (K8) USA (E03)

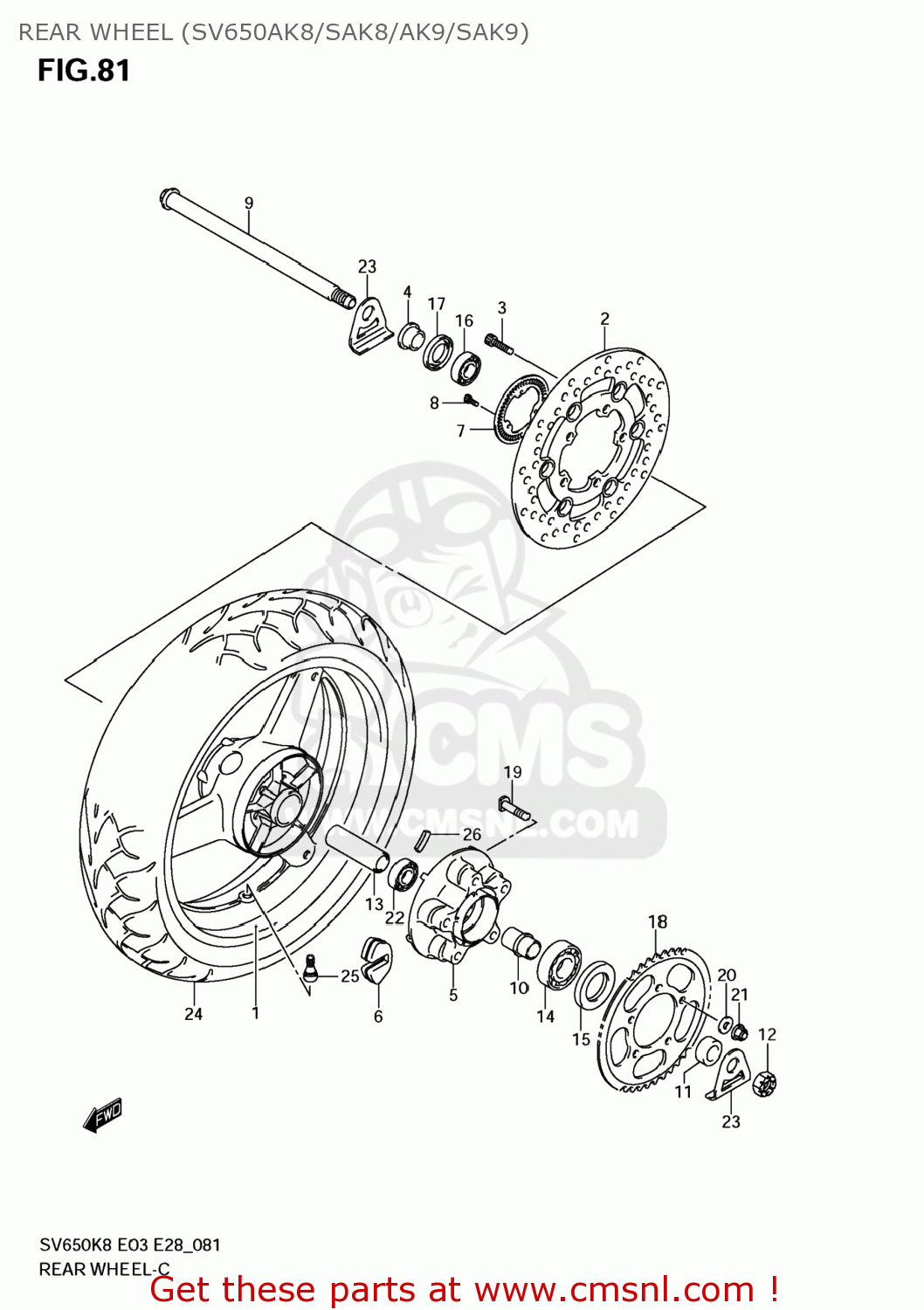

Rear wheel (sv650ak8/sak8/ak9/sak9) diagram SV650 2008 (K8) USA (E03)
REAR WHEEL (SV650AK8/SAK8/AK9/SAK9) SV650 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411108F40YMY
ref: 1-1
WHEEL,RR(17M/CXMT4.50)
€ 779.00
1-1
6411108F40YMY
ref: 1-1
WHEEL,RR(17M/CXMT4.50)
€ 779.00
1-2
6411108F40019
ref: 1-2
WHEEL,RR(17M/CXMT4.50)
€ 1,059.00
1-2
6411108F40019
ref: 1-2
WHEEL,RR(17M/CXMT4.50)
€ 1,059.00
2
6921138G00
ref: 2
DISC,RR BRAKE
€ 129.50
3
0910608148
ref: 3
BOLT(8X33)
€ 6.00
4
6474122D00
ref: 4
SPACER,RR AXLE,R
€ 9.50
5
6461119F00
ref: 5
DRUM,RR SPROCKET MOUNTING
€ 140.00
6
6465127A01
ref: 6
ABSORBER,RR HUB SHOCK
€ 6.00
7
6416217G00
ref: 7
RING,SPEED SENSOR RR(50T)
€ 14.00
8
0713005127
ref: 8
BOLT
€ 2.50
9
6471117G00
ref: 9
AXLE,RR
€ 108.00
10
6473327A00
ref: 10
RETAINER,RR HUB BEARING
€ 18.50
11
6475126E00
ref: 11
SPACER,RR AXLE,L
€ 20.50
12
083193118A
ref: 12
NUT
€ 17.50
13
0918020062
ref: 13
SPACER(20.5X28X88)
€ 11.50
14
0926220042
ref: 14
BEARING(20X47X14)
€ 21.00
15
0928528001
ref: 15
SEAL,OIL(28X47X7)
€ 11.50
16
0926225073
ref: 16
BEARING(25X62X17)
€ 21.50
17
0928535001
ref: 17
SEAL,OIL(35X62X8)
€ 9.00
18
6451132C00
ref: 18
SPROCKET,RR(NT:45-525)
€ 95.50
19
0911910043
ref: 19
BOLT(10X47)
€ 4.50
20
0916010039
ref: 20
WASHER(10.5X22X2.3)
€ 2.50
21
083193110A
ref: 21
NUT
€ 3.00
22
0812362047
ref: 22
BEARING
€ 17.00
23
6144517G00
ref: 23
WASHER,CHAIN ADJUSTER
€ 9.00
24
6511017G00
ref: 24
TIRE,RR(160/60 ZR17M/C 69W)
€ 190.00
24
6511017G00
ref: 24
TIRE,RR(160/60 ZR17M/C 69W)
€ 190.00
25
4313024A00
ref: 25
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
26-1
5541139G00
ref: 26-1
BALANCER,WHEEL(10G)
€ 5.50
26-2
5541239G00
ref: 26-2
BALANCER,WHEEL(20G)
€ 5.50
26-3
5541339G00
ref: 26-3
BALANCER,WHEEL(30G)
€ 6.00
