MUFFLER

SV650 2008 (K8) USA (E03)

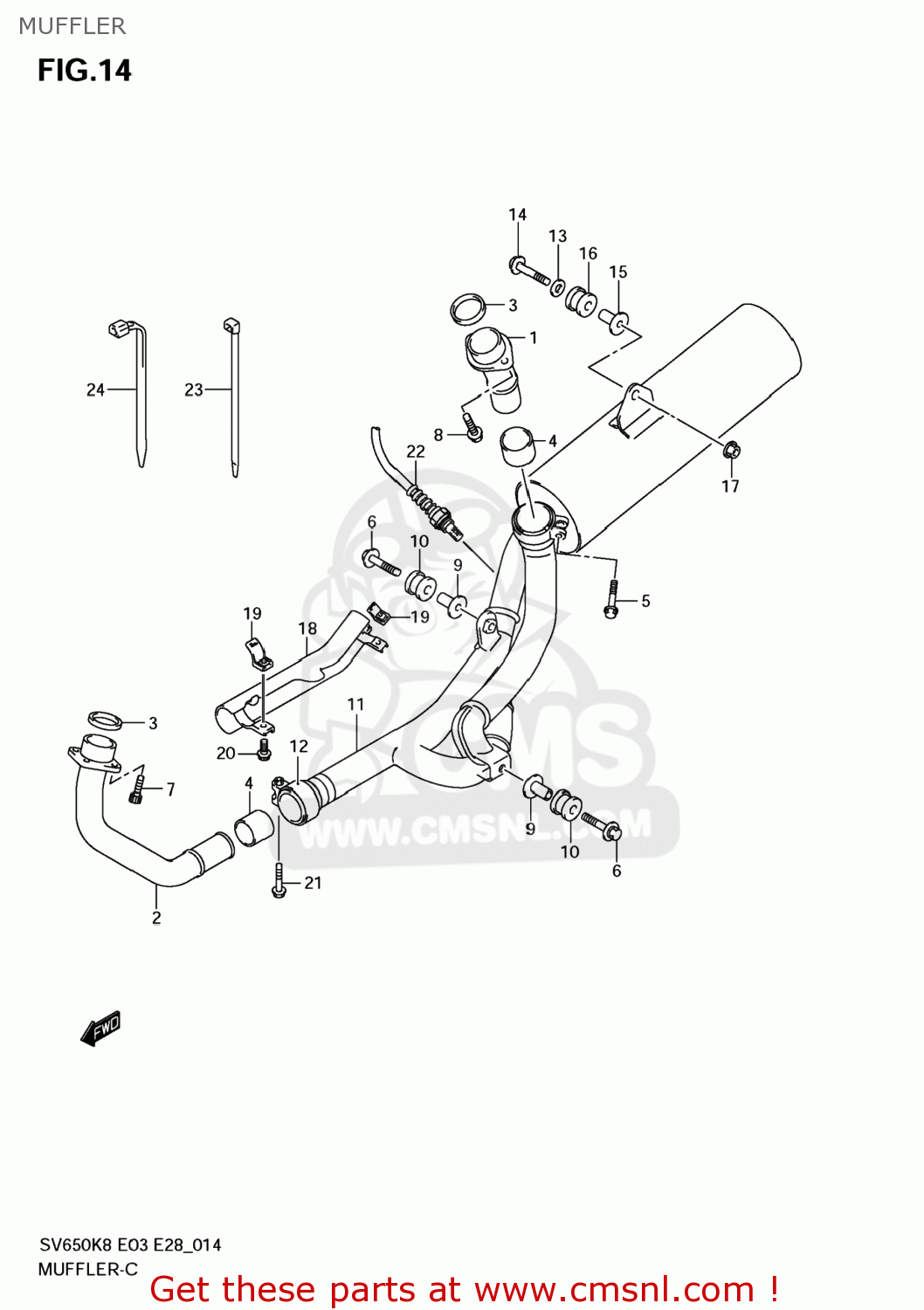

Muffler diagram SV650 2008 (K8) USA (E03)

MUFFLER SV650 2008 (K8) USA (E03)

MUFFLER SV650 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1415017G00
ref: 1

PIPE,EXHAUST RR

€ 75.00

2

1416017G00
ref: 2

PIPE,EXHAUST FR

€ 140.50

3

1418122D01
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 9.00

4

1477132E00
ref: 4

CONNECTOR,MUFFLER

€ 12.50

5

071200835B
ref: 5

BOLT

€ 4.00

6

0911808152
ref: 6
09118-08152-A05

BOLT 8X45

€ 5.00

7

0910608165
ref: 7

BOLT(8X25)

€ 5.00

8

071300825B
ref: 8

BOLT

€ 3.50

9

0918008152
ref: 9

SPACER(8.6X12X24.2)

€ 6.00

10

0932012048
ref: 10

CUSHION

€ 5.00

11-1

1430517G70H01
ref: 11-1

MUFFLER

€ 0.00

11-2

1430517G60H01
ref: 11-2

MUFFLER

€ 1,771.00

12

1445919F10
ref: 12

CLAMP,MUFFLER CONNECTOR

€ 10.50

13

0916008142
ref: 13

WASHER(8.5X28X1.5)

€ 2.50

14

0910308358
ref: 14

BOLT(8X45)

€ 3.50

15

0918008152
ref: 15

SPACER(8.6X12X24.2)

€ 6.00

16

0932012048
ref: 16

CUSHION

€ 5.00

17

083612508A
ref: 17

NUT

€ 2.50

18

1477017G00
ref: 18

COVER,EXHAUST TT

€ 67.50

19

1418517G00
ref: 19

CLAMP,EXHAUST COVER

€ 6.50

20

0910606084
ref: 20

BOLT(6X20)

€ 4.00

21

0910308365
ref: 21

BOLT(8X35)

€ 3.50

22

1821317G00
ref: 22

SENSOR,OXYGEN

€ 336.00

23

0940710404
ref: 23

CLAMP(L:100)

€ 4.00

24

0940714403
ref: 24

CLAMP(L:125)

€ 2.50
