REAR WHEEL (SV650K8/SK8/K9/SK9)
SV650 2008 (K8) USA (E03)

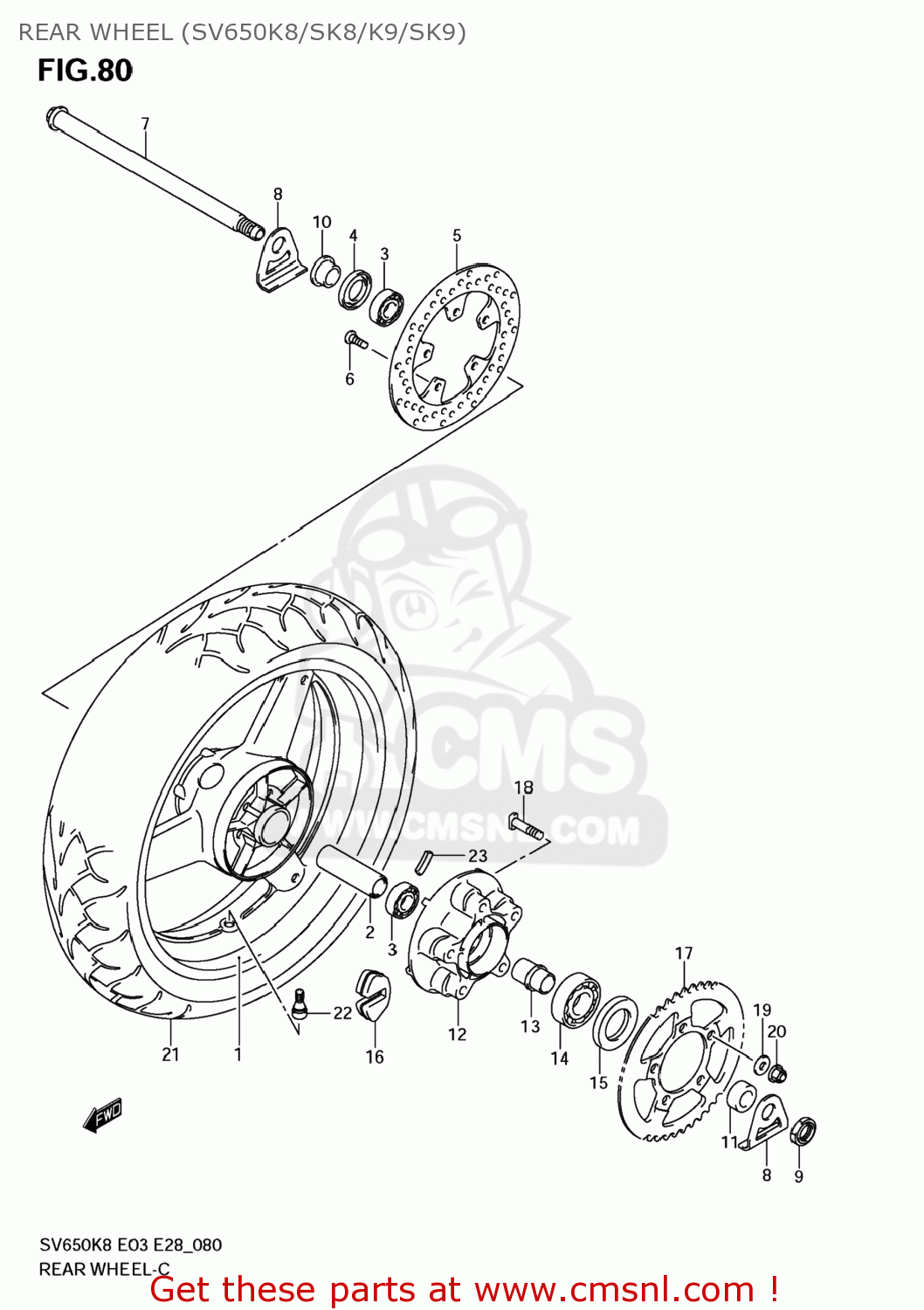

Rear wheel (sv650k8/sk8/k9/sk9) diagram SV650 2008 (K8) USA (E03)
REAR WHEEL (SV650K8/SK8/K9/SK9) SV650 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411108F11YMY
ref: 1-1
WHEEL,RR(17M/CXMT4.50)
€ 779.00
1-1
6411108F11YMY
ref: 1-1
WHEEL,RR(17M/CXMT4.50)
€ 779.00
1-2
6411108F11019
ref: 1-2
WHEEL,RR(17M/CXMT4.50)
€ 1,224.50
1-2
6411108F11019
ref: 1-2
WHEEL,RR(17M/CXMT4.50)
€ 1,224.50
2
0918020062
ref: 2
SPACER(20.5X28X88)
€ 11.50
3
0926220042
ref: 3
BEARING(20X47X14)
€ 21.00
4
0928528001
ref: 4
SEAL,OIL(28X47X7)
€ 11.50
5
6921140F10
ref: 5
DISC,RR BRAKE
€ 199.50
6
0910608148
ref: 6
BOLT(8X33)
€ 6.00
7
6471117G00
ref: 7
AXLE,RR
€ 108.00
8
6144517G00
ref: 8
WASHER,CHAIN ADJUSTER
€ 9.00
9
083193118A
ref: 9
NUT
€ 17.50
10
6474122D00
ref: 10
SPACER,RR AXLE,R
€ 9.50
11
6475126E00
ref: 11
SPACER,RR AXLE,L
€ 20.50
12
6461119F00
ref: 12
DRUM,RR SPROCKET MOUNTING
€ 140.00
13
6473327A00
ref: 13
RETAINER,RR HUB BEARING
€ 18.50
14
0926225073
ref: 14
BEARING(25X62X17)
€ 21.50
15
0928535001
ref: 15
SEAL,OIL(35X62X8)
€ 9.00
16
6465127A01
ref: 16
ABSORBER,RR HUB SHOCK
€ 6.00
17
6451132C00
ref: 17
SPROCKET,RR(NT:45-525)
€ 95.50
18
0911910043
ref: 18
BOLT(10X47)
€ 4.50
19
0916010039
ref: 19
WASHER(10.5X22X2.3)
€ 2.50
20
083193110A
ref: 20
NUT
€ 3.00
21
6511017G00
ref: 21
TIRE,RR(160/60 ZR17M/C 69W)
€ 190.00
21
6511017G00
ref: 21
TIRE,RR(160/60 ZR17M/C 69W)
€ 190.00
22
4313024A00
ref: 22
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
23-1
5541117G00
ref: 23-1
BALANCER,WHEEL(10G)
€ 6.50
23-2
5541217G00
ref: 23-2
BALANCER,WHEEL(20G)
€ 7.00
23-3
5541317G00
ref: 23-3
BALANCER,WHEEL(30G)
€ 7.50
