HANDLE LEVER
SV650 2008 (K8) USA (E03)

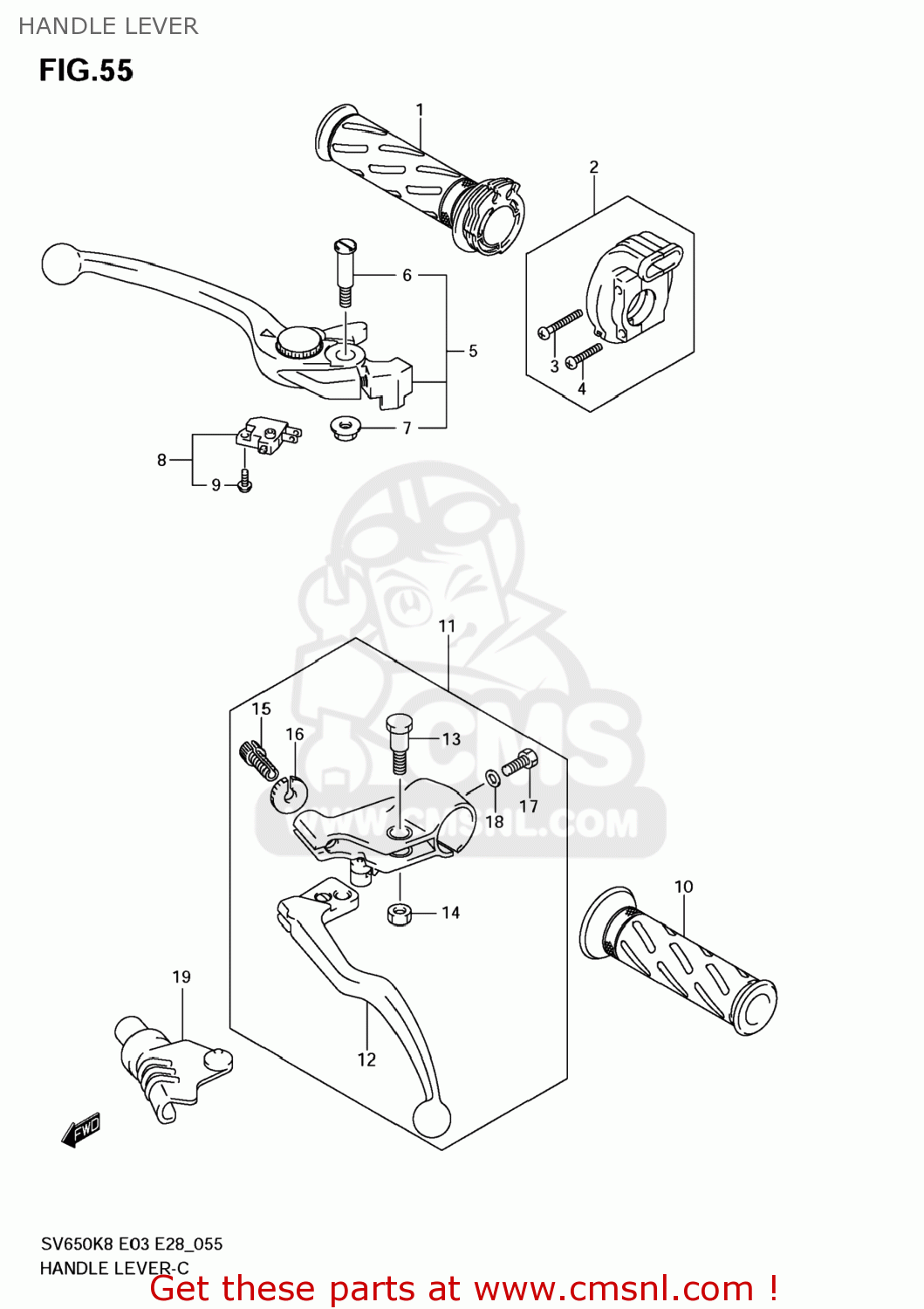

Handle lever diagram SV650 2008 (K8) USA (E03)
HANDLE LEVER SV650 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5711046E01
ref: 1-1
GRIP,THROTTLE
€ 26.00
1-2
5711045D02
ref: 1-2
GRIP,THROTTLE
€ 26.00
2
5710014D00
ref: 2
CASE ASSY,THROTTLE
€ 24.00
3
0912505066
ref: 3
SCREW(5X25)
€ 2.00
4
021120520B
ref: 4
SCREW
€ 2.50
5-1
5730044G00
ref: 5-1
LEVER ASSY,BRAKE
€ 86.00
5-2
5730010G20
ref: 5-2
LEVER ASSY,BRA
€ 59.00
6
5743114G00
ref: 6
BOLT,LEVER
€ 14.00
7
083192106A
ref: 7
NUT
€ 2.00
8
5746017C11
ref: 8
57460-14J01
SWITCH ASSY,ST
€ 32.50
9
5746517C00
ref: 9
SCREW
€ 1.50
10
5721122D01
ref: 10
57211-22D01-291
GRIP,LEFT
€ 11.50
11-1
5750010D01
ref: 11-1
LEVER ASSY,CLUTCH
€ 107.50
11-2
5750010D80
ref: 11-2
LEVER ASSY,CLUTCH
€ 117.00
12
5762027A31
ref: 12
LEVER,CLUTCH
€ 34.00
13
5753114A00
ref: 13
BOLT,LEVER SET
€ 8.50
14
083192106B
ref: 14
NUT
€ 2.50
15
5744111010
ref: 15
ADJUSTER,CABLE
€ 8.00
16
5744211010
ref: 16
NUT,CABLE ADJUSTER
€ 4.00
17
015000620B
ref: 17
BOLT
€ 1.50
18
083220106B
ref: 18
WASHER
€ 2.00
19
5766145C00
ref: 19
COVER,CLUTCH LEVER
€ 13.00
