THROTTLE BODY FITTING
SV650 2008 (K8) USA (E03)

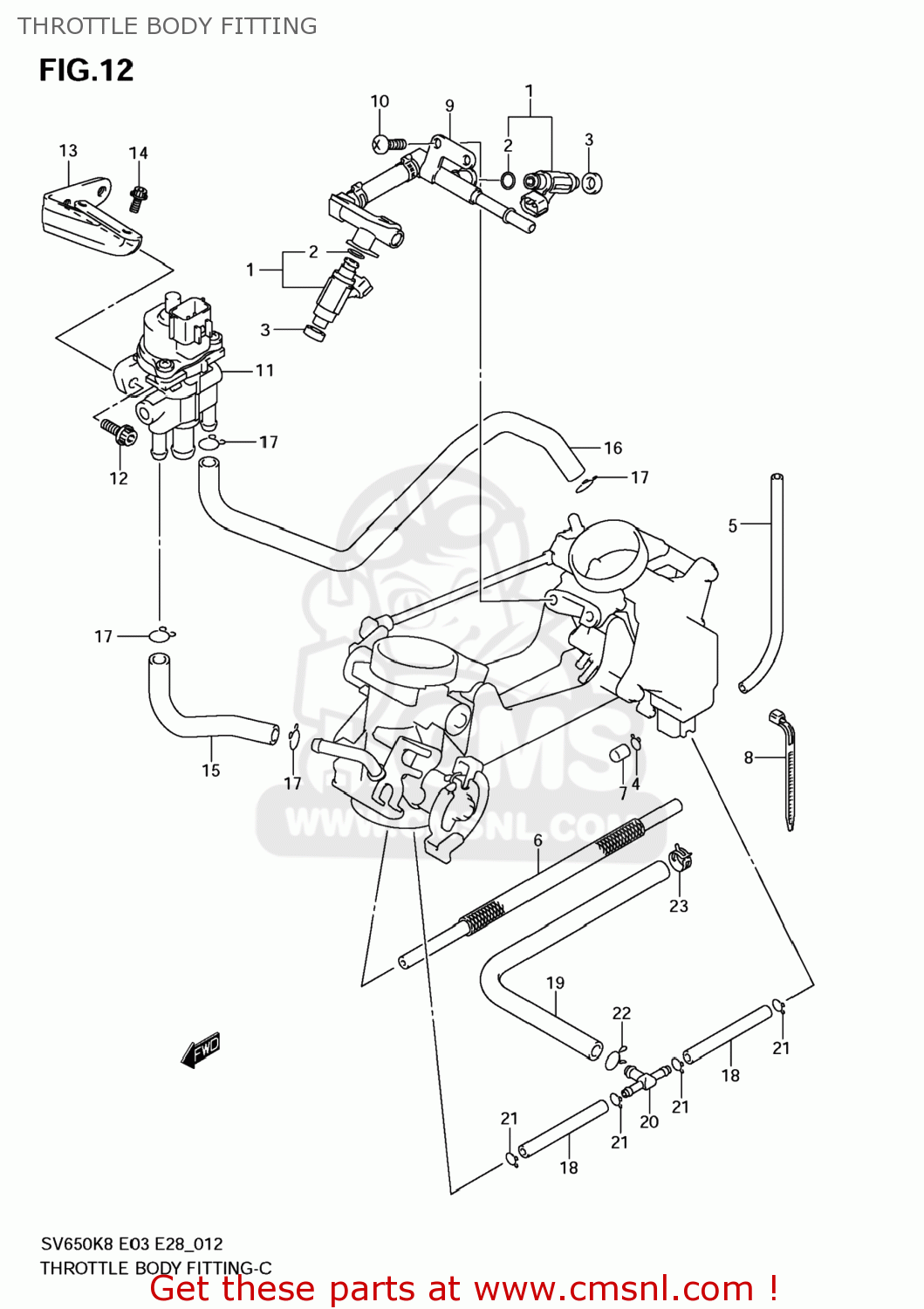

Throttle body fitting diagram SV650 2008 (K8) USA (E03)
THROTTLE BODY FITTING SV650 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1571027G00
ref: 1
INJECTOR ASSY
€ 281.50
2
1571716G00
ref: 2
O RING
€ 9.50
3
1572229G00
ref: 3
SEAL
€ 9.50
4
0940106101
ref: 4
CLIP
€ 2.50
5
1368316G30
ref: 5
HOSE
€ 23.00
6
1368327G20
ref: 6
HOSE
€ 35.50
7
1327484000
ref: 7
CAP
€ 5.50
8
1367102F00
ref: 8
CLIP
€ 3.00
9
1573017G01
ref: 9
DELIVERY PIPE ASSY
€ 301.50
10
1360206128
ref: 10
SCREW
€ 2.50
11
1811727G00
ref: 11
VALVE,ISC
€ 342.00
12
071200616A
ref: 12
BOLT
€ 3.00
13
1811917G00
ref: 13
BRACKET,ISC VALVE
€ 10.00
14
015500616A
ref: 14
BOLT
€ 2.50
15
1369717G00
ref: 15
HOSE,ISC VALVE FR
€ 8.00
16
1369817G00
ref: 16
HOSE,ISC VALVE RR
€ 13.50
17
0940111101
ref: 17
CLIP
€ 2.50
18
1368106G40
ref: 18
HOSE
€ 15.00
19
1368317G00
ref: 19
HOSE
€ 42.00
20
1368504F10
ref: 20
NIPPLE
€ 6.50
21
0940106101
ref: 21
CLIP
€ 2.50
22
0940110410
ref: 22
09401-10401
CLIP
€ 1.50
23
0940109403
ref: 23
CLIP
€ 2.50
