HEADLAMP HOUSING (SV650/A)

SV650 2008 (K8) USA (E03)

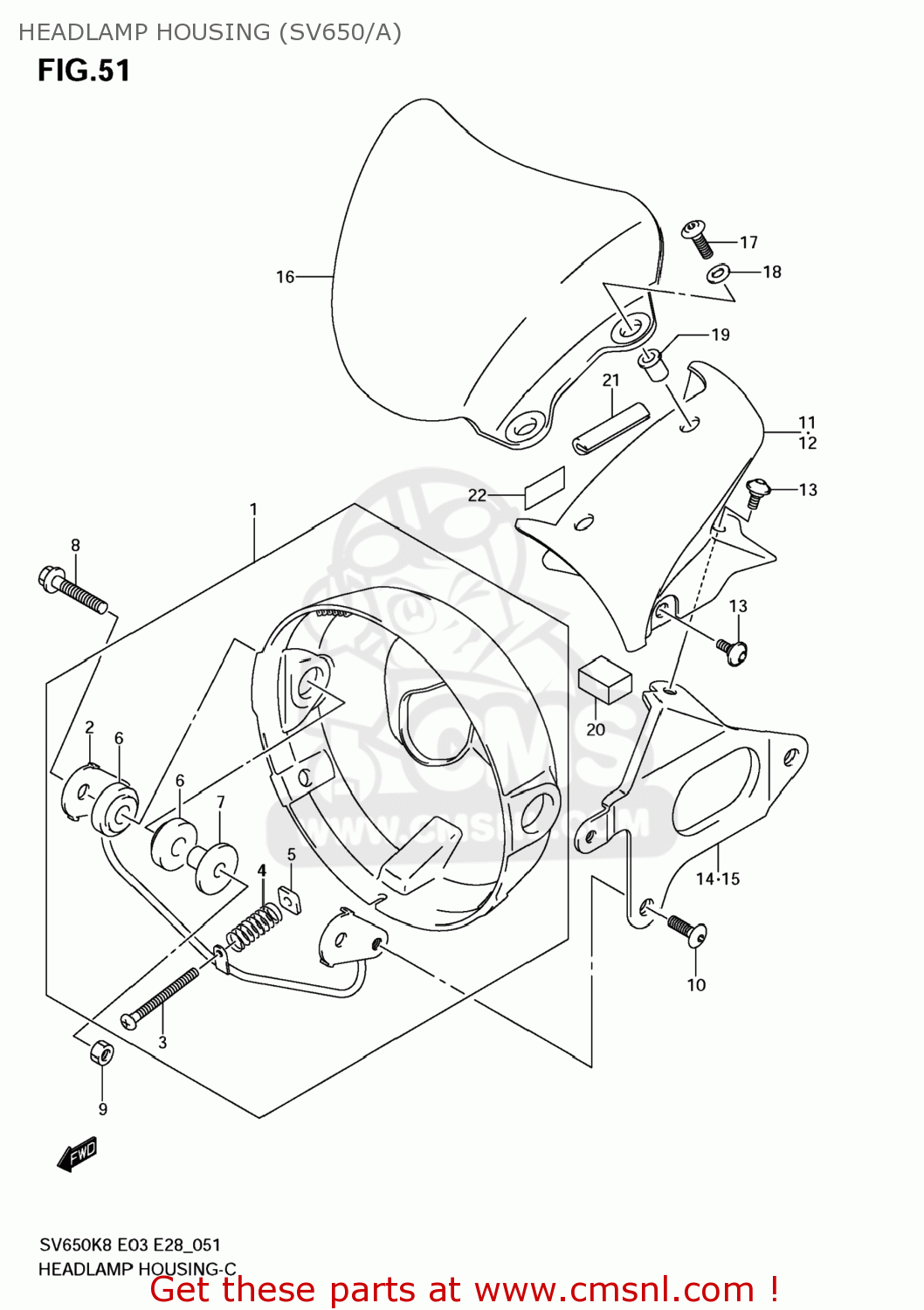

Headlamp housing (sv650/a) diagram SV650 2008 (K8) USA (E03)

HEADLAMP HOUSING (SV650/A) SV650 2008 (K8) USA (E03)

HEADLAMP HOUSING (SV650/A) SV650 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5180016G10
ref: 1

HOUSING ASSY,HEADLAMP

€ 141.50

2

5185016G10
ref: 2

PLATE,HEADLAMP

€ 27.50

3

0912505128
ref: 3

SCREW(5X45)

€ 2.50

4

5183725D00
ref: 4

SPRING,HEADLAMP ADJUSTER

€ 4.00

5

5182525D00
ref: 5

NUT,HEADLAMP ADJUSTER

€ 3.50

6

0932012065
ref: 6

CUSHION

€ 3.00

7

0918008217
ref: 7

SPACER(8.6X12X21.3)

€ 3.50

8

0910308391
ref: 8

BOLT(8X35)

€ 3.00

9

083100008B
ref: 9

NUT

€ 1.50

10

0913906030
ref: 10

SCREW(6X16)

€ 3.50

11-1

5181416G00YAY
ref: 11-1

COVER,HEADLAMP HSG,R

€ 38.50

11-2

5181416G00YKZ
ref: 11-2

COVER,HEADLAMP HSG,R

€ 38.50

11-3

5181416G00YLF
ref: 11-3

COVER,LAMP HOUSING,R(GRAY)

€ 38.50

11-4

5181416G00YPA
ref: 11-4

COVER,LAMP HOUSING,R(WHITE)

€ 38.50

11-5

5181416G00YHG
ref: 11-5

COVER,HEADLAMP HSG,R

€ 38.50

12-1

5181516G00YAY
ref: 12-1

COVER,HEADLAMP HSG,L

€ 39.00

12-2

5181516G00YKZ
ref: 12-2

COVER,HEADLAMP HSG,L

€ 44.50

12-3

5181516G00YLF
ref: 12-3

COVER,LAMP HOUSING,L(GRAY)

€ 49.00

12-4

5181516G00YPA
ref: 12-4

COVER,LAMP HOUSING,L(WHITE)

€ 46.50

12-5

5181516G00YHG
ref: 12-5

COVER,HEADLAMP HSG,L

€ 39.50

13

0913905064
ref: 13

SCREW(5X13)

€ 2.50

14

5185016GA0
ref: 14

PLATE,HOUSING COVER,R

€ 28.50

15

5186016GA0
ref: 15

PLATE,HOUSING COVER,L

€ 23.50

16

5181616G00
ref: 16

COVER,METER

€ 87.00

17

0913905032
ref: 17

SCREW(5X18)

€ 2.50

18

083220105B
ref: 18

WASHER

€ 2.50

19

0915905019
ref: 19

NUT

€ 5.50

20

9214614G10
ref: 20

CUSHION,FR PANEL LID

€ 3.50

21

9463135F00
ref: 21

MOLDING

€ 3.00

22

9463222D00
ref: 22

TAPE

€ 6.00
