AIR CLEANER (MODEL K3/K4/K5/K6)

SV650S 2006 (K6) USA (E03)

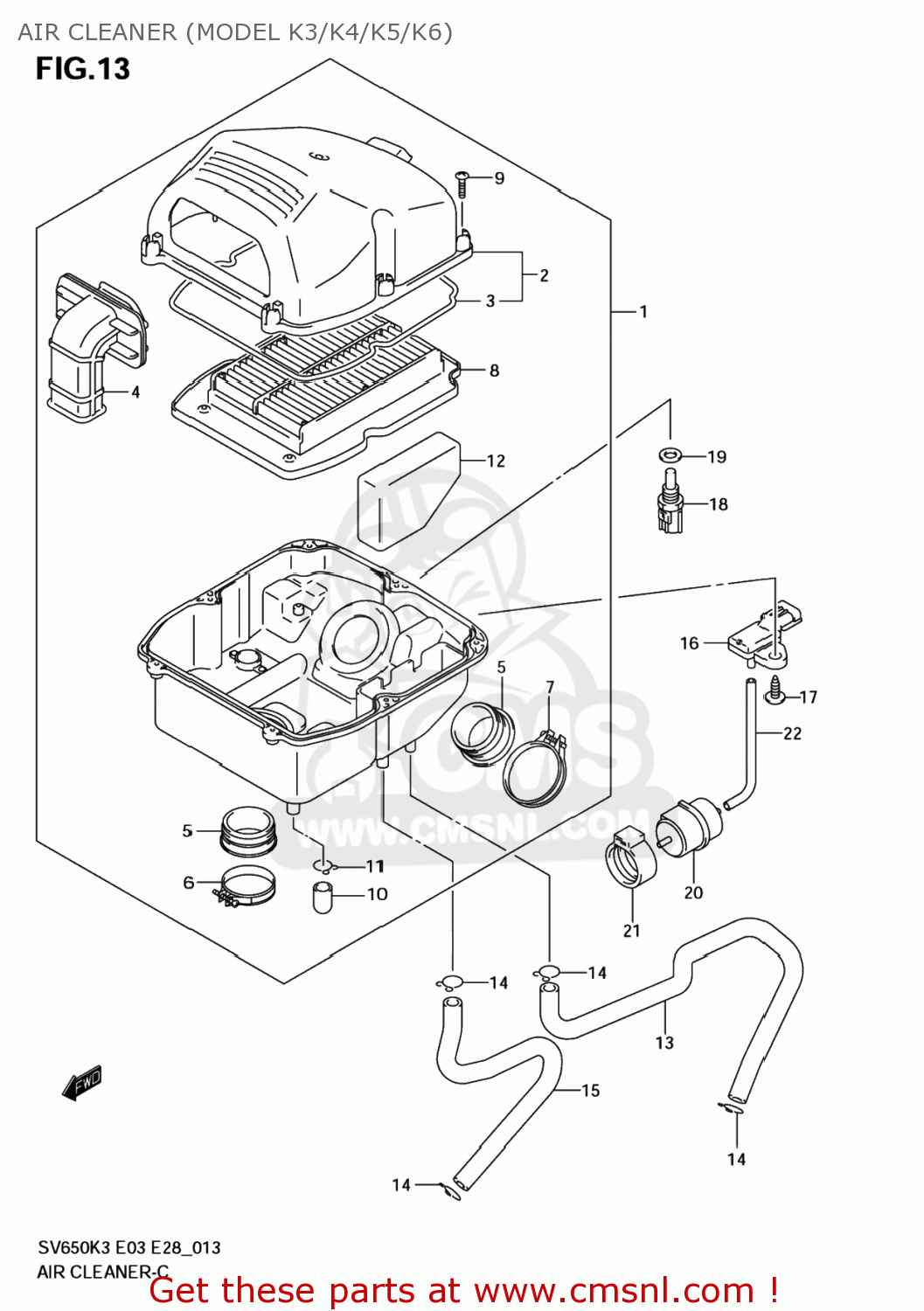

Air cleaner (model k3/k4/k5/k6) diagram SV650S 2006 (K6) USA (E03)

AIR CLEANER (MODEL K3/K4/K5/K6) SV650S 2006 (K6) USA (E03)

AIR CLEANER (MODEL K3/K4/K5/K6) SV650S 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370017G00
ref: 1

CLEANER ASSY,AIR

€ 182.00

2

1374016G00
ref: 2

CAP,AIR CLEANER

€ 33.00

3

1374616G00
ref: 3

GASKET (NAS)

€ 8.50

4

1389117G00
ref: 4

TUBE,INLET

€ 30.50

5

1388117G00
ref: 5

TUBE,OUTLET

€ 14.00

6

1382617G00
ref: 6

CLAMP

€ 6.00

7

1382617G00
ref: 7

CLAMP

€ 6.00

8

1378016G00
ref: 8

FILTER

€ 28.00

9

0354105203
ref: 9
03541-0520A

SCREW

€ 2.50

10

1385941B10
ref: 10

PLUG

€ 5.50

11

0940114301
ref: 11

CLIP

€ 2.00

12

1378817G00
ref: 12

FILTER,BREATHER

€ 14.50

13

1385117G00
ref: 13

TUBE,BREATHER CRANKCASE

€ 19.50

14

0940115101
ref: 14

CLIP

€ 2.00

15

1385117G10
ref: 15

TUBE,BREATHER CYLINDER

€ 15.50

16

1859017G01
ref: 16

SENSOR,BOOST

€ 418.50

17

0354105163
ref: 17
03541-0516A

SCREW

€ 1.50

18

1365057F00
ref: 18

SENSOR,WATER TEMP

€ 35.50

19

0916812017
ref: 19

GASKET(12X17X1) (NAS)

€ 2.00

20

1371506G00
ref: 20

CHAMBER,VACUUM

€ 24.00

21

1391217G00
ref: 21

BAND,VACUUM CHAMBER

€ 5.00

22

0935535755600
ref: 22

HOSE(3.5X7.5X600)

€ 10.00
