GEAR SHIFTING (MODEL K3)
SV650S 2006 (K6) USA (E03)

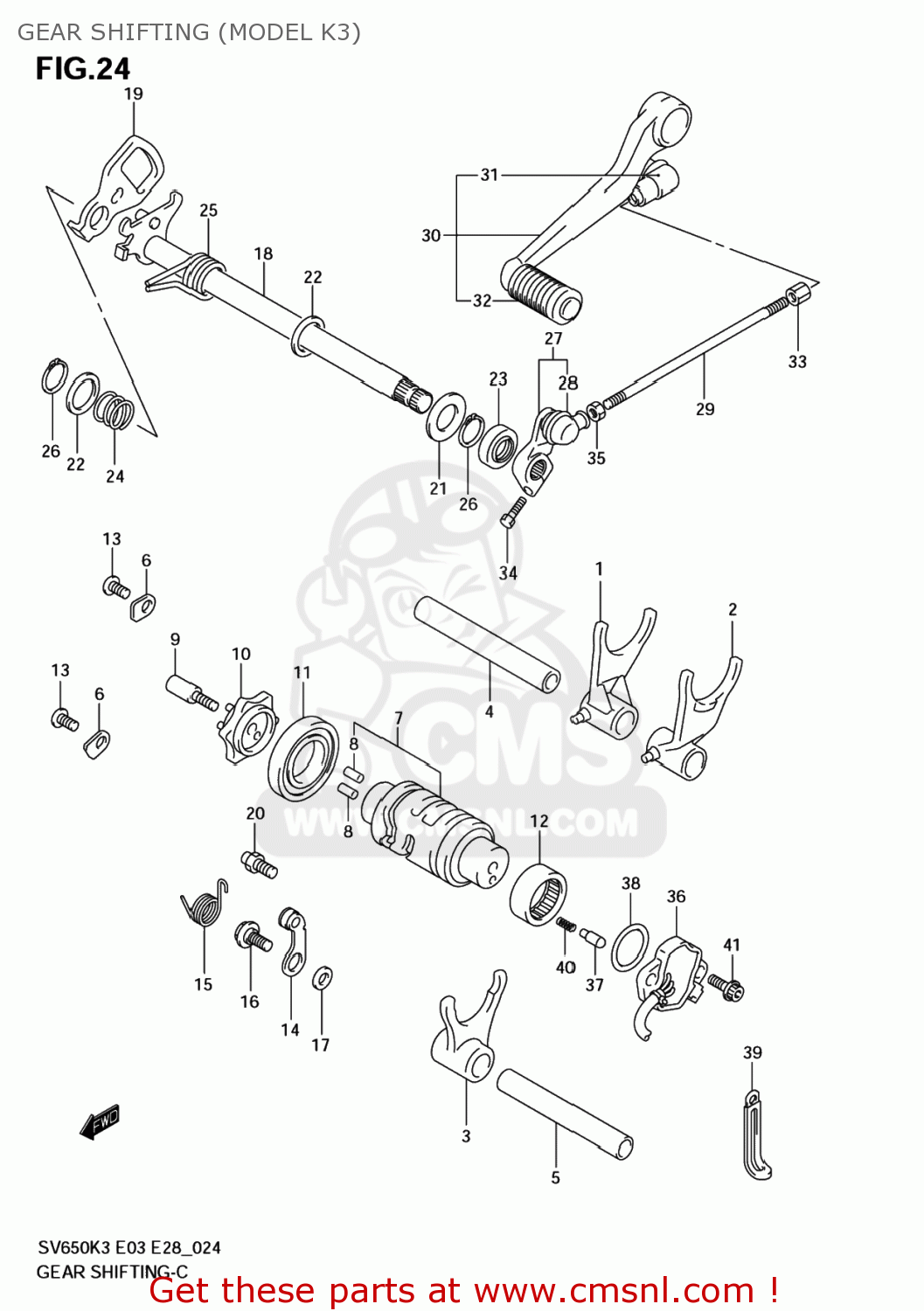

Gear shifting (model k3) diagram SV650S 2006 (K6) USA (E03)
GEAR SHIFTING (MODEL K3) SV650S 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521142E10
ref: 1
FORK,GEAR SHIFT NO.1
€ 95.00
2
2522142E10
ref: 2
FORK,GEAR SHIFT NO.2
€ 95.00
3
2523142E10
ref: 3
FORK,GEAR SHIFT NO.3
€ 79.50
4
2541126D01
ref: 4
SHAFT,GEAR SHIFT FORK
€ 16.00
5
2541144B00
ref: 5
SHAFT,GEAR SHIFT FORK NO.1
€ 19.50
6
2474121A00
ref: 6
RETAINER
€ 2.00
7
2531019F00
ref: 7
CAM,GEAR SHIFT
€ 75.00
8
0422104089
ref: 8
PIN
€ 1.50
9
2531242F00
ref: 9
25312-42F01
BOLT,GEAR SHIF
€ 5.50
10
2538119F00
ref: 10
PLATE,GEAR SHIFT CAM
€ 43.00
11
0926225006
ref: 11
BEARING(25X47X8)
€ 24.00
12
0926325018
ref: 12
BEARING(25X32X12)
€ 17.50
13
0211206123
ref: 13
02112-0612A
SCREW
€ 1.50
14
2535024B00
ref: 14
STOPPER,GEAR SHIFT CAM
€ 8.00
15
2535517G00
ref: 15
SPRING,GEAR SHIFT CAM STOPPER
€ 3.50
16
0911106041
ref: 16
BOLT(6X14.3)
€ 3.00
17
0821106141
ref: 17
WASHER
€ 2.50
18
2551019F00
ref: 18
SHAFT,GEAR SHIFT
€ 96.00
19
2551213E20
ref: 19
PLATE,GEAR SHIFT CAM DRIVE
€ 20.00
20
2567101011
ref: 20
STOPPER,GEAR SHIFT ARM
€ 3.00
21
0916014016
ref: 21
WASHER(14X29X0.8)
€ 1.50
22
0918114167
ref: 22
SHIM(14X22X1)
€ 3.50
23
0928314006
ref: 23
SEAL,OIL(14X22X6)
€ 6.50
24
0944017009
ref: 24
SPRING
€ 1.50
25
0944420001
ref: 25
SPRING
€ 5.00
26
0833131146
ref: 26
08331-3114A
CIRCLIP
€ 2.00
27
2552017G00
ref: 27
ARM,GEAR SHIFT LINK
€ 74.00
28
2552647000
ref: 28
COVER,DUST
€ 3.50
29-1
2552519F00
ref: 29-1
ROD,GEAR SHAFT LINK
€ 9.50
29-2
2552521E10
ref: 29-2
ROD,GEAR SHIFT LINK
€ 16.00
30
2560033E00
ref: 30
LEVER ASSY,GEAR SHIFT
€ 106.00
31
2552647000
ref: 31
COVER,DUST
€ 3.50
32
2565220C00
ref: 32
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33
0914006025
ref: 33
NUT
€ 2.00
34
0150006203
ref: 34
01500-0620A
BOLT
€ 2.00
35
0831000067
ref: 35
NUT
€ 2.50
36
3773020F00
ref: 36
BASE ASSY,GEAR SHIFT TERMINAL
€ 119.50
37
0920905011
ref: 37
PIN(5X15.5)
€ 2.00
38
0928026007
ref: 38
O RING(D:2.4,ID:25.7)
€ 6.50
39
0940408206
ref: 39
CLAMP(L:65 T:0.8)
€ 3.50
40
0944004010
ref: 40
SPRING
€ 1.50
41
0712005163
ref: 41
07120-0516B
BOLT
€ 1.50
