TAIL LAMP

SV650S 2006 (K6) USA (E03)

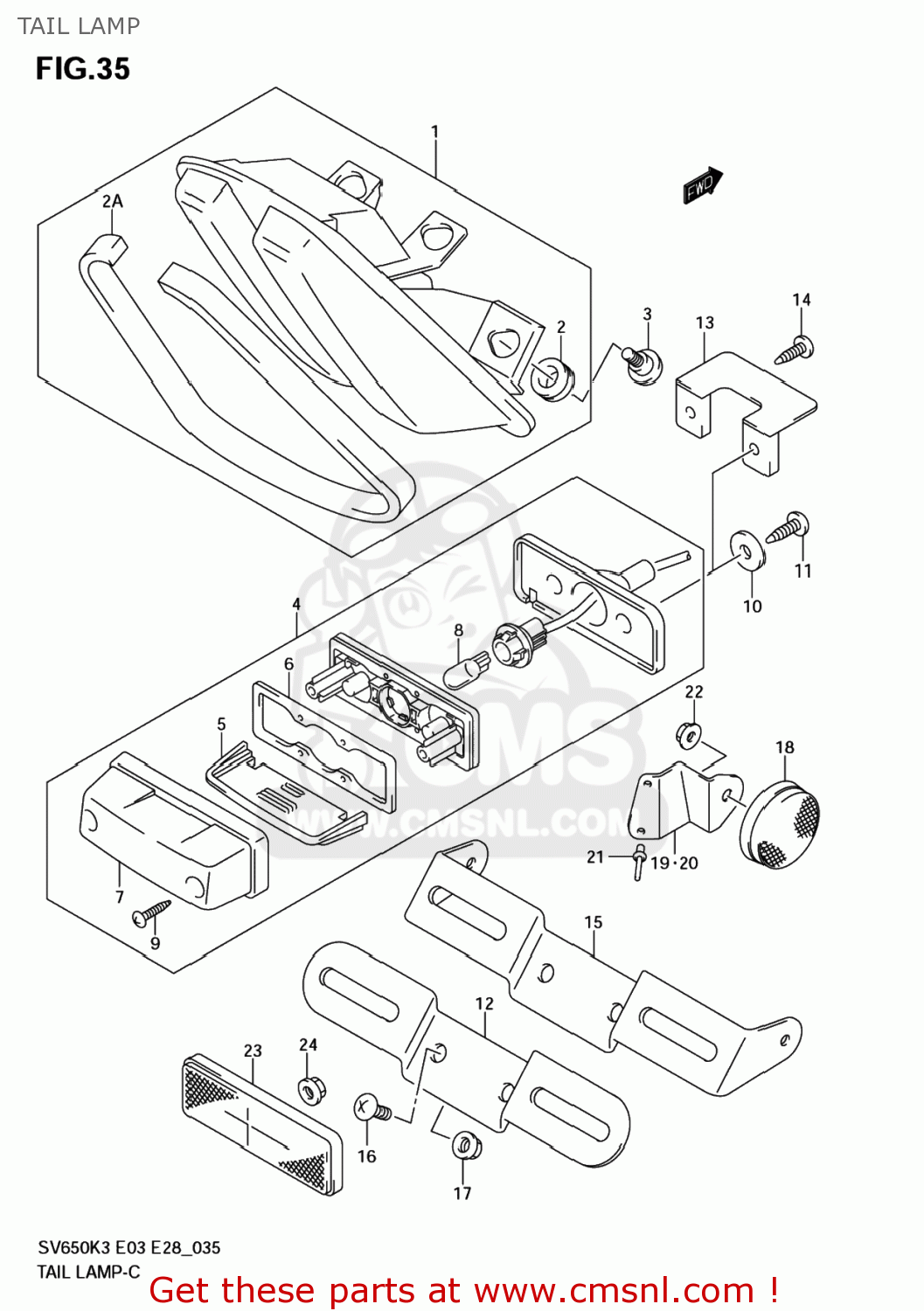

Tail lamp diagram SV650S 2006 (K6) USA (E03)

TAIL LAMP SV650S 2006 (K6) USA (E03)

TAIL LAMP SV650S 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3571016G30
ref: 1-1
35710-16G31

LAMP ASSY,RR COMBINATION

€ 68.00

1-2

3571016G31
ref: 1-2

LAMP ASSY,RR COMBINATION

€ 68.00

2

0932010049
ref: 2

CUSHION

€ 2.00

2A

4551916G00
ref: 2A

CUSHION,SEAT TAIL COVER

€ 5.50

3

0913906118
ref: 3

SCREW(6X22.5)

€ 3.50

4-1

3591016G00
ref: 4-1

LAMP ASSY,LICENSE

€ 161.50

4-2

3591016G10
ref: 4-2

LAMP ASSY,LICENSE

€ 49.00

5

3591216G00
ref: 5

LENS

€ 7.50

6

3591316G00
ref: 6

GASKET (NAS)

€ 5.50

7

3591716G00
ref: 7

COVER

€ 7.00

8

0947112216
ref: 8

BULB(12V5W)

€ 5.00

9

032110416A
ref: 9

SCREW

€ 1.50

10

0916005501
ref: 10

WASHER(5.5X20X1.2)

€ 2.00

11

0354105163
ref: 11
03541-0516A

SCREW

€ 1.50

12

3592716G00
ref: 12

BRACKET,LICENSE PLATE

€ 0.00

13

3592616G00
ref: 13

BRACKET,LICENSE

€ 7.00

14

035410520A
ref: 14

SCREW

€ 2.50

15

3592717G30
ref: 15

BRACKET,LICENSE PLATE

€ 0.00

16

021420616A
ref: 16

SCREW

€ 2.50

17

083161006A
ref: 17

NUT

€ 2.50

18

3597014A20
ref: 18

REFLECTOR ASSY,RR SIDE

€ 11.00

19

3597516G00
ref: 19

BRACKET,RR SIDE RR,R

€ 0.00

20

3597616G00
ref: 20

BRACKET,RR SIDE RR,L

€ 0.00

21

0922904050
ref: 21

RIVET

€ 2.00

22

083161005A
ref: 22

NUT

€ 2.50

23

3597007F00
ref: 23
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

24

083161005A
ref: 24

NUT

€ 2.50
