Buy Suzuki SV Parts Online


AIR CLEANER (MODEL K7)

SV650S 2006 (K6) USA (E03)

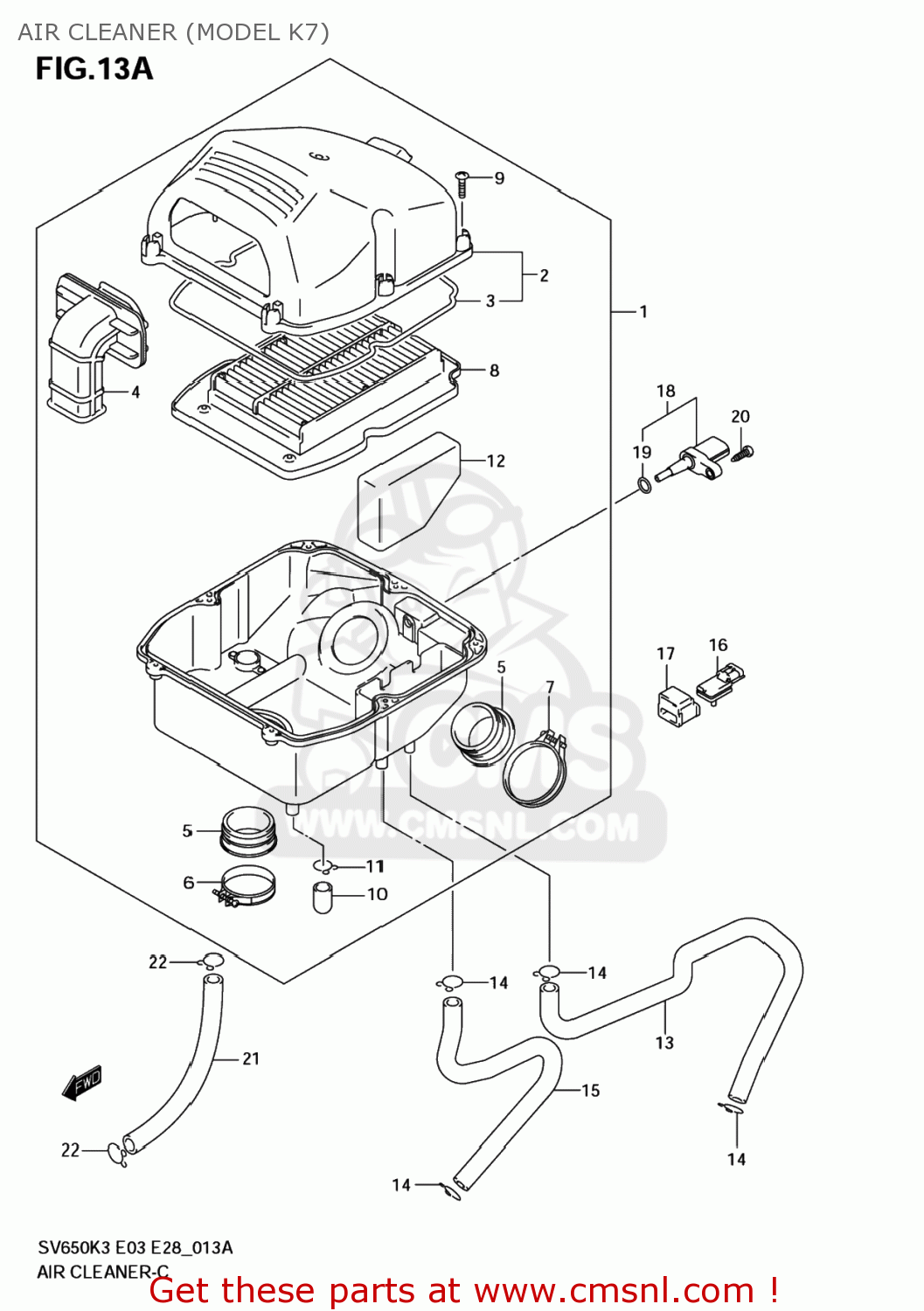

Air cleaner (model k7) diagram SV650S 2006 (K6) USA (E03)

AIR CLEANER (MODEL K7) SV650S 2006 (K6) USA (E03)
AIR CLEANER (MODEL K7) SV650S 2006 (K6) USA (E03)
AIR CLEANER (MODEL K7) SV650S 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1370017G10
ref: 1
CLEANER ASSY,AIR
€ 182.00
2
1374016G00
ref: 2
CAP,AIR CLEANER
1374016G00
€ 33.00
3
1374616G00
ref: 3
GASKET (NAS)
1374616G00
€ 8.50
4
1389117G00
ref: 4
TUBE,INLET
1389117G00
€ 30.50
5
1388117G00
ref: 5
TUBE,OUTLET
€ 14.00
6
1382617G00
ref: 6
CLAMP
1382617G00
€ 6.00
7
1382617G00
ref: 7
CLAMP
1382617G00
€ 6.00
8
1378016G00
ref: 8
FILTER
1378016G00
€ 28.00
9
035410520A
ref: 9
SCREW
€ 2.50
10
1385941B10
ref: 10
PLUG
1385941B10
€ 5.50
11
0940114301
ref: 11
CLIP
0940114301
€ 2.00
12
1378817G00
ref: 12
FILTER,BREATHER
1378817G00
€ 14.50
13
1385117G00
ref: 13
TUBE,BREATHER CRANKCASE
1385117G00
€ 19.50
14
0940115101
ref: 14
CLIP
0940115101
€ 2.00
15
1385117G10
ref: 15
TUBE,BREATHER CYLINDER
1385117G10
€ 15.50
16
1859141F00
ref: 16
SENSOR,PRESSURE
1859141F00
€ 360.00
17
1859541F00
ref: 17
HOLDER,SENSOR
€ 14.50
18
1365041F10
ref: 18
SENSOR,AIR TEMP
1365041F10
€ 41.50
19
1365541F10
ref: 19
O RING
1365541F10
€ 7.00
20
035110516A
ref: 20
SCREW
035110516A
€ 2.50
21
1386517G00
ref: 21
HOSE,ISC CLNR
€ 18.00
22
0940115101
ref: 22
CLIP
0940115101
€ 2.00
