FRONT MASTER CYLINDER (SV650SK3/SK4/SK5/SK6/SK7)

SV650S 2006 (K6) USA (E03)

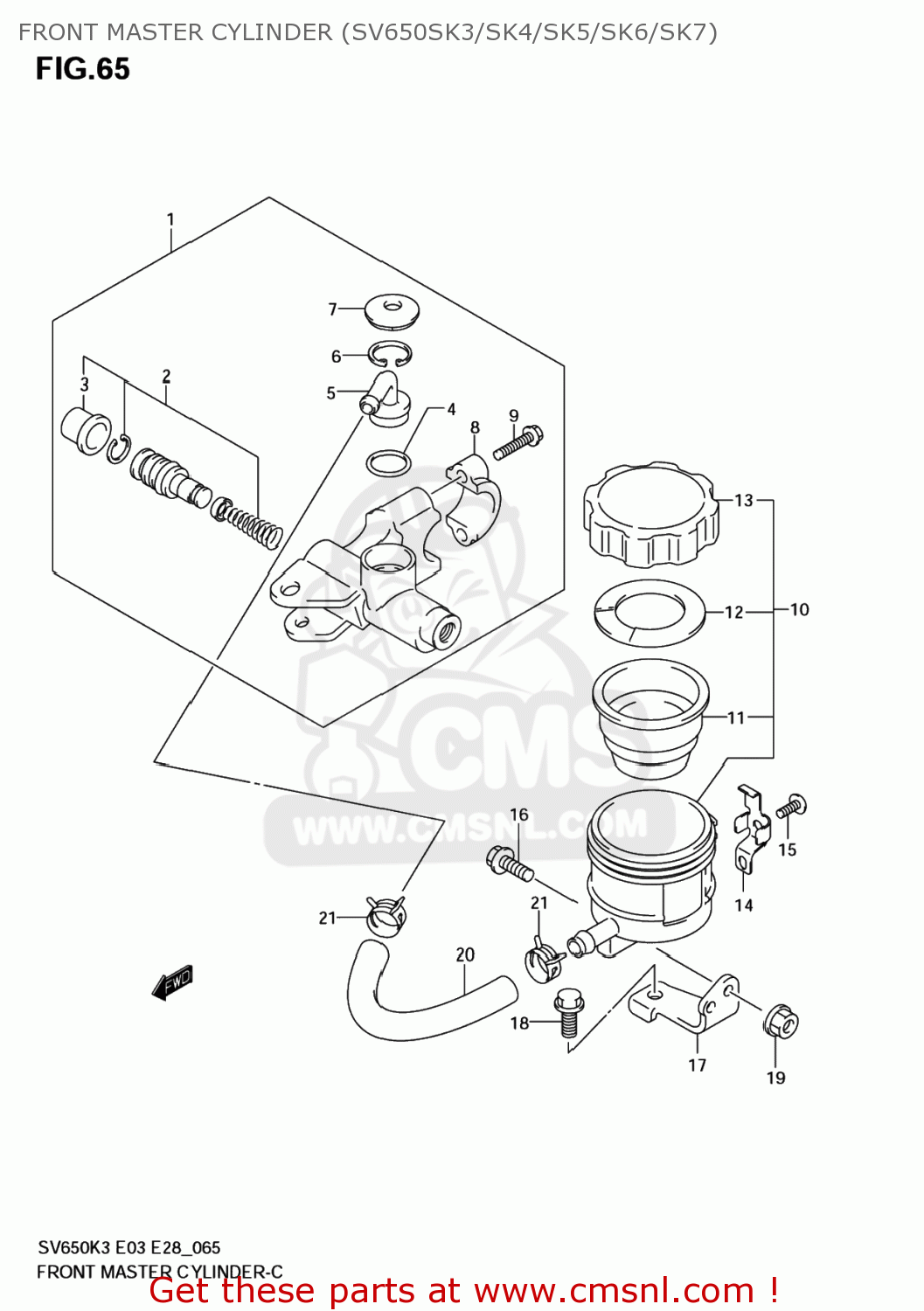

Front master cylinder (sv650sk3/sk4/sk5/sk6/sk7) diagram SV650S 2006 (K6) USA (E03)

FRONT MASTER CYLINDER (SV650SK3/SK4/SK5/SK6/SK7) SV650S 2006 (K6) USA (E03)

FRONT MASTER CYLINDER (SV650SK3/SK4/SK5/SK6/SK7) SV650S 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960040F00
ref: 1

CYLINDER ASSY,FR MASTER

€ 239.00

2

5960045860
ref: 2

PISTON & CUP SET

€ 44.00

3

5966644300
ref: 3

BOOT

€ 6.00

4

6968634200
ref: 4

O RING

€ 3.50

5

5967217C00
ref: 5

CONNECTOR

€ 8.00

6

6967400B20
ref: 6

CIRCLIP

€ 3.00

7

5967317C00
ref: 7

COVER,DUST

€ 7.00

8

5967136500
ref: 8

HOLDER

€ 10.00

9

5967502FA0
ref: 9

BOLT(6X22)

€ 3.00

10

5974007D00
ref: 10

TANK ASSY,RESERVOIR

€ 67.00

11

5966718441
ref: 11

DIAPHRAGM

€ 8.50

12

5966818441
ref: 12

PLATE,DIAPHRAGM

€ 3.50

13

5966907D00
ref: 13

CAP

€ 16.50

14

5974317C00
ref: 14

PLATE,RESERVOIR TANK CAP

€ 8.00

15

021420410A
ref: 15

SCREW

€ 1.50

16

0154706163
ref: 16
01547-0616B

BOLT

€ 2.50

17

5975140F00
ref: 17

BRACKET,RESERVOIR TANK

€ 14.00

18

015500616A
ref: 18

BOLT

€ 2.50

19

083161006A
ref: 19

NUT

€ 2.50

20

5973132C00
ref: 20

HOSE,FR RESERVOIR TANK

€ 18.00

21

5973517C00
ref: 21

CLAMP,RESERVOIR TANK FR

€ 4.00
