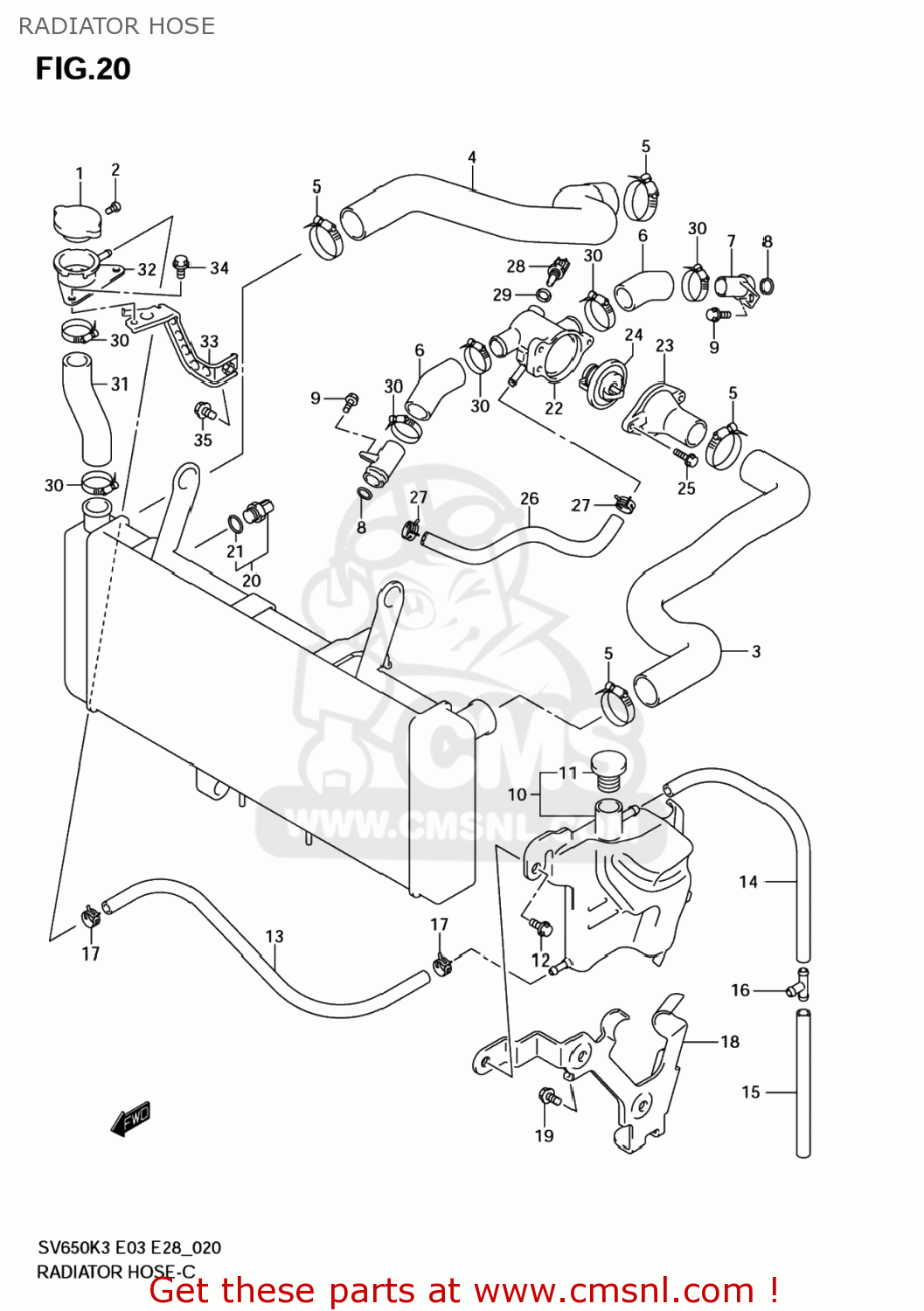

RADIATOR HOSE

ref

part #

description

quantity

1-1

1773019D11
ref: 1-1

CAP,RADIATOR(1.1)

€ 33.50

1-1

1773019D11
ref: 1-1

CAP,RADIATOR(1.1)

€ 33.50

1-2

1773012C20
ref: 1-2
17730-08J00

CAP COMP,RADIATOR

€ 40.00

2

1773303D10
ref: 2

SCREW,RADIATOR CAP

€ 2.00

2

1773303D10
ref: 2

SCREW,RADIATOR CAP

€ 2.00

3-1

1785117G00
ref: 3-1

HOSE,RADIATOR INLET

€ 33.50

3-2

1785117G10
ref: 3-2

HOSE,RADIATOR INLET

€ 30.50

4-1

1785217G00
ref: 4-1

HOSE,RADIATOR OUTLET

€ 30.50

4-2

1785217G10
ref: 4-2

HOSE,RADIATOR OUTLET

€ 30.50

4-3

1785217G20
ref: 4-3

HOSE,RADIATOR OUTLET

€ 27.50

5

0940238511
ref: 5

CLAMP

€ 10.50

6

1785319F00
ref: 6

HOSE,CONNECTOR INLET

€ 11.50

7-1

1789006G00
ref: 7-1
17890-06G20

UNION,CONN HOS

€ 9.50

7-2

1789006G20
ref: 7-2

UNION,CONNECTOR HOSE

€ 9.50

8

0928018009
ref: 8

O RING(D:3.2,ID:17.8)

€ 8.00

9

0713006123
ref: 9
07130-0612A

BOLT,STRANGER

€ 2.50

10-1

1791017G00
ref: 10-1

TANK ASSY,RESERVOIR

€ 102.00

10-2

1791017G10
ref: 10-2

TANK ASSY,RESERVOIR

€ 114.50

11

1793102FA0
ref: 11

CAP,RESERVOIR TANK

€ 4.50

12

0911106085
ref: 12

BOLT(6X12)

€ 4.50

13

0935250901600
ref: 13

HOSE(5X9X600)

€ 6.50

14

0935250901600
ref: 14

HOSE(5X9X600)

€ 6.50

14

0935250901600
ref: 14

HOSE(5X9X600)

€ 6.50

15

0935270103600
ref: 15

HOSE(7X10.2X600)

€ 8.00

15

0935270103600
ref: 15

HOSE(7X10.2X600)

€ 8.00

16

0936708005
ref: 16

3 WAY

€ 4.00

17

0940108411
ref: 17

CLIP

€ 3.00

18-1

1792017G00
ref: 18-1

BRACKET,RESERVOIR TANK

€ 12.00

18-2

1792017G10
ref: 18-2

BRACKET,RESERVOIR TANK

€ 18.50

19-1

0155006103
ref: 19-1
01550-0610A

BOLT

€ 2.50

19-2

015500610A
ref: 19-2

BOLT

€ 2.00

20

1768050F10
ref: 20

SWITCH,FAN THERMO

€ 29.00

21

1768950F00
ref: 21

O-RING

€ 2.50

22

1766202F11
ref: 22

CONNECTOR,THERMOSTAT INLET

€ 40.00

23

1766317G00
ref: 23

CAP,THERMOSTAT CONNECTOR

€ 18.00

24

1767006G50
ref: 24

THERMOSTAT,WATER

€ 24.50

25

0155006163
ref: 25
01550-0616A

BOLT

€ 2.50

26

1785619F00
ref: 26

HOSE,CONNECTOR TO WATER PUMP

€ 14.50

27

0940112409
ref: 27

CLAMP

€ 3.00

28

1365057F00
ref: 28

SENSOR,WATER TEMP

€ 35.50

29

0916812017
ref: 29

GASKET(12X17X1) (NAS)

€ 2.00

30-1

0940228511
ref: 30-1

CLAMP

€ 8.50

30-1

0940228511
ref: 30-1

CLAMP

€ 8.50

30-2

0940228511
ref: 30-2

CLAMP

€ 8.50

31

1785517G00
ref: 31

HOSE,CONDUCTION

€ 9.50

32

1779124D00
ref: 32

CONDUCTION,RADIATOR

€ 37.50

33

1779017G10
ref: 33

BRACKET,CONDUCTION

€ 7.00

34

0155006123
ref: 34
01550-0612A

BOLT

€ 2.50

35

0155006103
ref: 35
01550-0610A

BOLT

€ 2.50
