THROTTLE BODY FITTING (MODEL K7)
SV650S 2006 (K6) USA (E03)

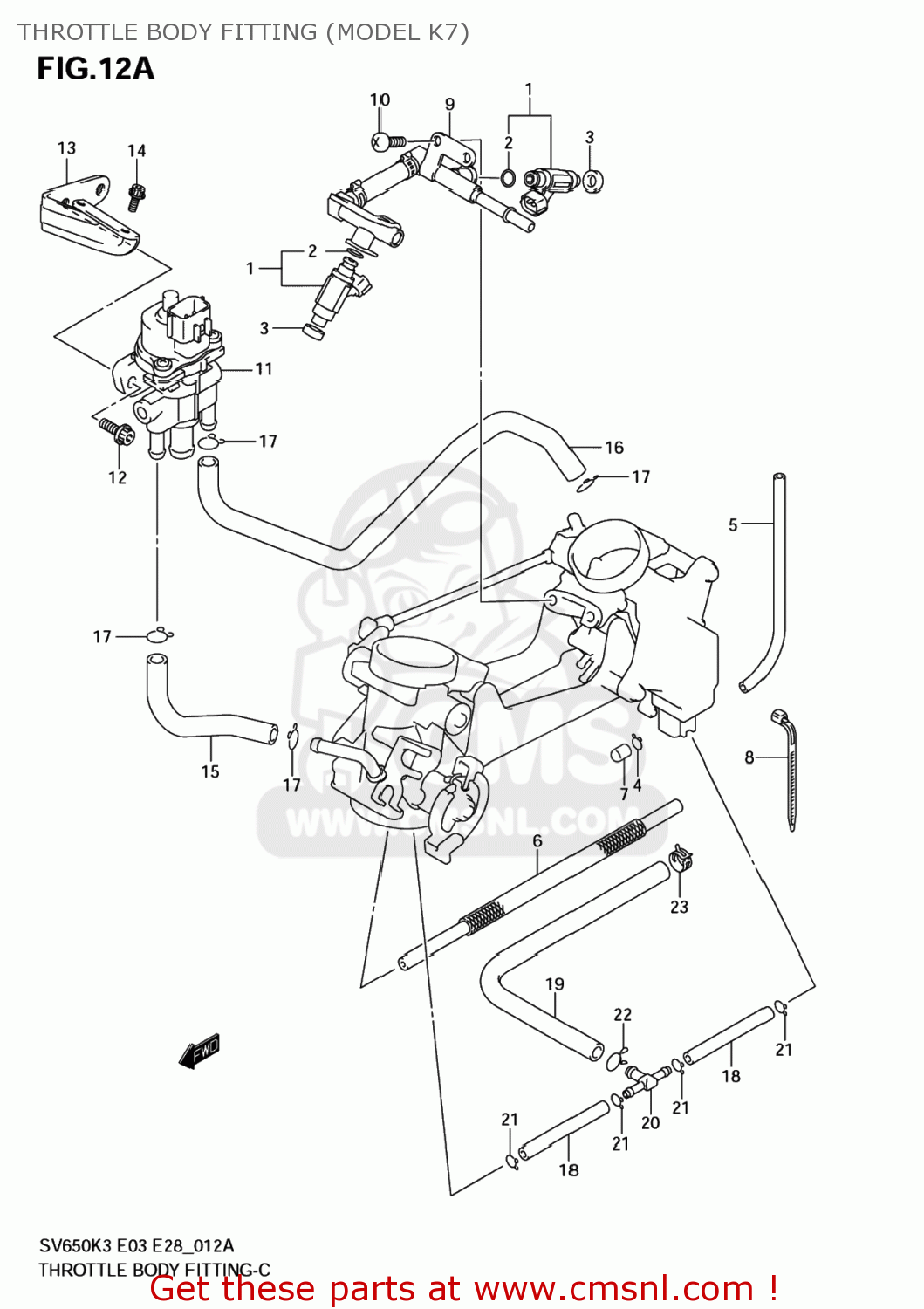

Throttle body fitting (model k7) diagram SV650S 2006 (K6) USA (E03)
THROTTLE BODY FITTING (MODEL K7) SV650S 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1571027G00
ref: 1
INJECTOR ASSY
€ 281.50
2
1571716G00
ref: 2
O RING
€ 9.50
3
1572229G00
ref: 3
SEAL
€ 9.50
4
0940106101
ref: 4
CLIP
€ 2.50
5
1368316G30
ref: 5
HOSE
€ 23.00
6
1368327G20
ref: 6
HOSE
€ 35.50
7
1327484000
ref: 7
CAP
€ 5.50
8
1367102F00
ref: 8
CLIP
€ 3.00
9
1573017G00
ref: 9
15730-17G01
DELIVERRY PIPE
€ 301.50
10
1360206128
ref: 10
SCREW
€ 2.50
11
1811727G00
ref: 11
VALVE,ISC
€ 342.00
12
071200616A
ref: 12
BOLT
€ 3.00
13
1811917G00
ref: 13
BRACKET,ISC VALVE
€ 10.00
14
015500616A
ref: 14
BOLT
€ 2.50
15
1369717G00
ref: 15
HOSE,ISC VALVE FR
€ 8.00
16
1369817G00
ref: 16
HOSE,ISC VALVE RR
€ 13.50
17
0940111101
ref: 17
CLIP
€ 2.50
18
1368139F00225
ref: 18
HOSE(3.2X7.4X225)
€ 11.50
18
1368139F00225
ref: 18
HOSE(3.2X7.4X225)
€ 11.50
19
1368316G10
ref: 19
13683-17G00
HOSE
€ 42.00
20
1368504F10
ref: 20
NIPPLE
€ 6.50
21
0940106101
ref: 21
CLIP
€ 2.50
22
0940110410
ref: 22
09401-10401
CLIP
€ 1.50
23
0940109403
ref: 23
CLIP
€ 2.50
