CENTER STAND-SIDE STAND-FOOTREST BAR-REAR BRAKE

T305 TC305 1969 USA (E03)

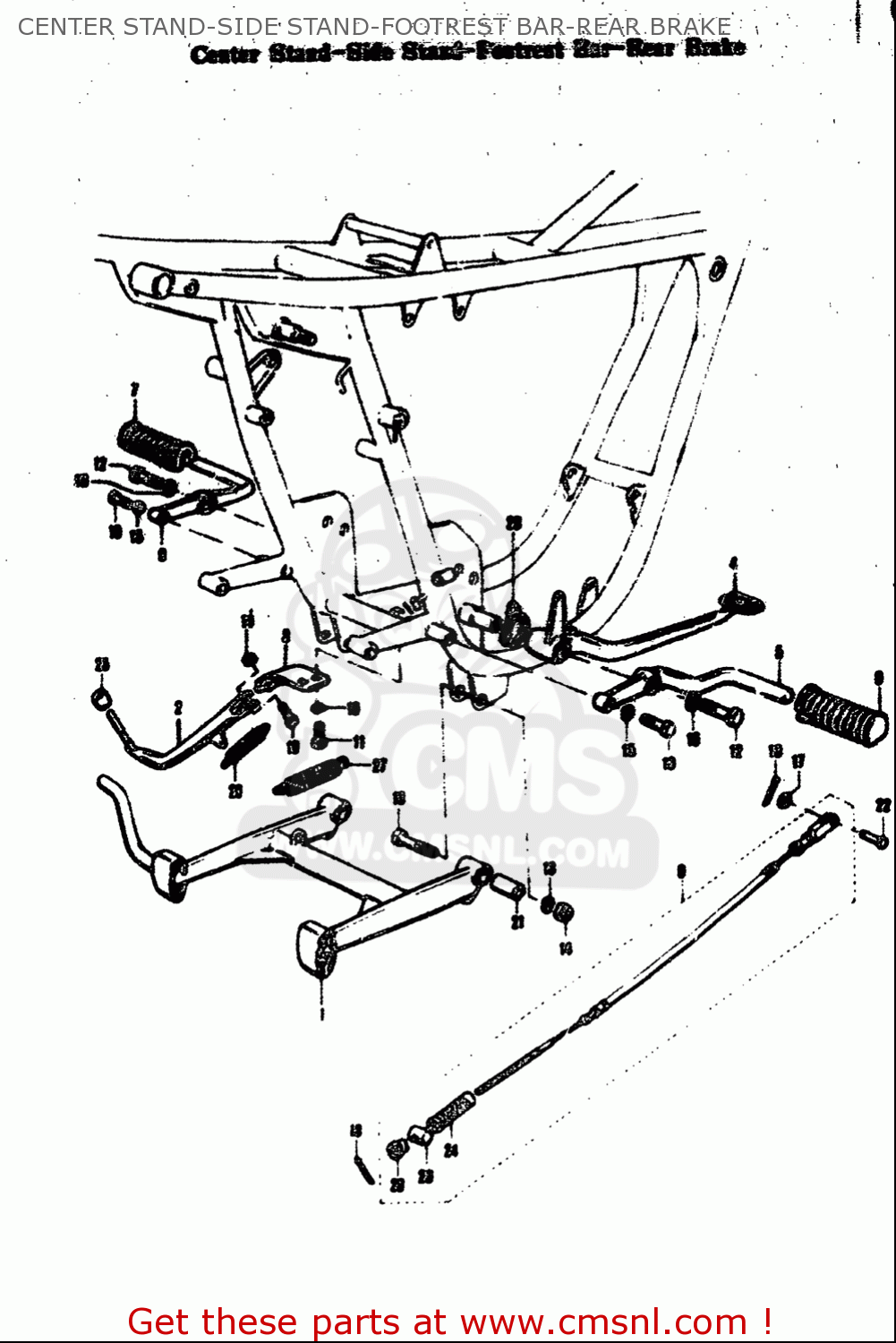

Center stand-side stand-footrest bar-rear brake diagram T305 TC305 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

4231008002
ref: 2

STAND,PROP

€ 34.00

4233010001
ref: 3

BRACKET,SIDE STAND

€ 16.00

4355109000
ref: 7

RUBBER,FR FOOTREST

€ 21.00

4355110000
ref: 8

RUBBER,FR FOOTREST,R

€ 15.00

5850011000
ref: 9

CABLE ASSY,RR BRAKE

€ 39.00

0150010257
ref: 11

BOLT

€ 3.00

0150010353
ref: 12

BOLT

€ 2.50

0831000107
ref: 14

NUT

€ 2.50

0832101087
ref: 15

WASHER,LOCK

€ 2.00

0832101107
ref: 16

WASHER,LOCK

€ 2.00

0832201067
ref: 17

WASHER

€ 2.00

0910010006
ref: 18

BOLT(10X48)

€ 4.00

0910010287
ref: 19

BOLT(10X27)

€ 4.50

0915006014
ref: 20

NUT

€ 3.50

0918010001
ref: 21

SPACER(10.5X16X30)

€ 3.50

0920005001
ref: 22

PIN(L:17.5)

€ 1.50

0920913018
ref: 23

PIN(13X18)

€ 3.50

0928705001
ref: 24

SEAL,DUST

€ 11.00

0932007001
ref: 25

CUSHION

€ 4.00

0944314017
ref: 26

SPRING

€ 6.50

0944316005
ref: 27

SPRING

€ 12.00

0944837008
ref: 28

SPRING

€ 3.00
