CLUTCH

T305 TC305 1969 USA (E03)

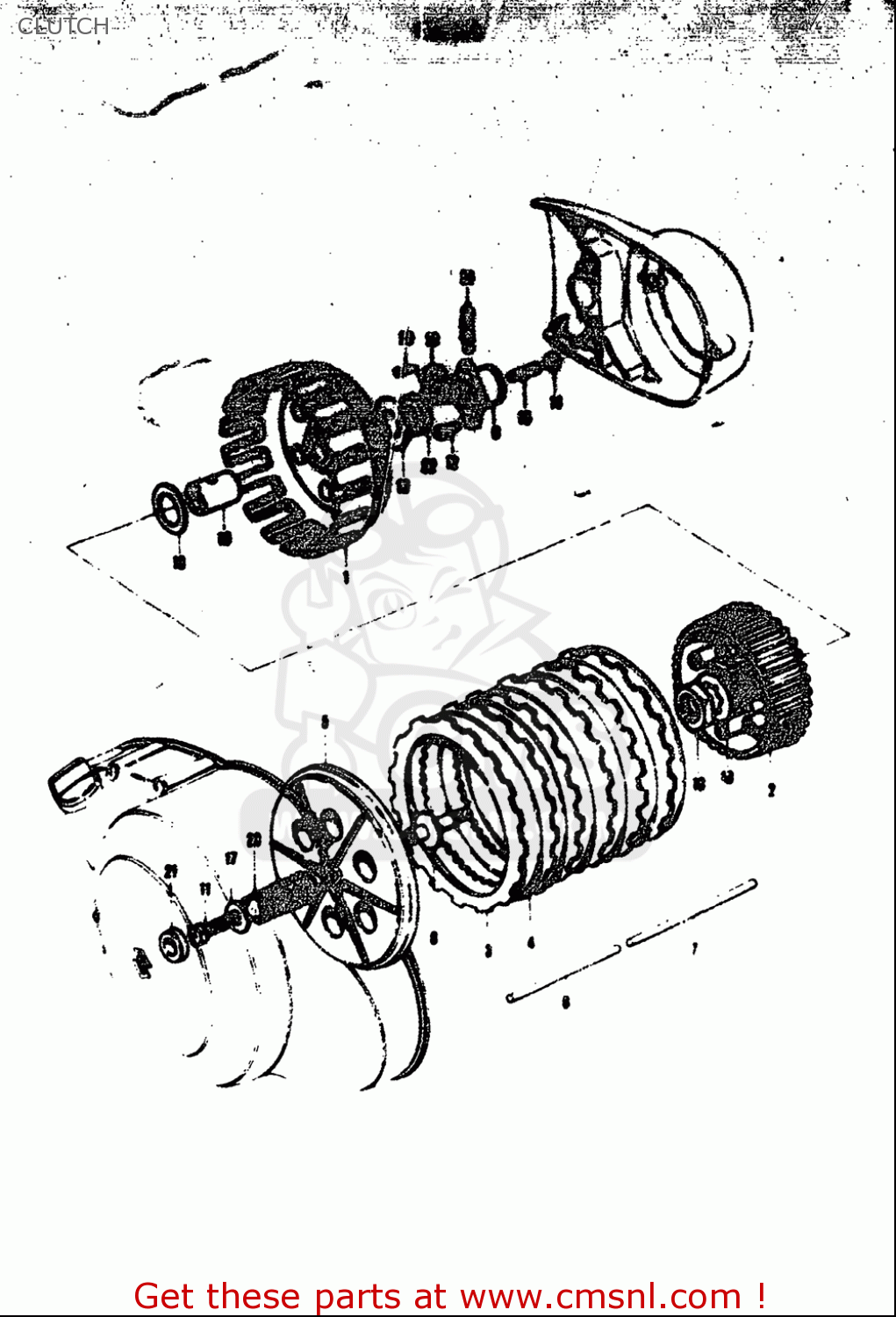

Clutch diagram T305 TC305 1969 USA (E03)

CLUTCH T305 TC305 1969 USA (E03)

CLUTCH T305 TC305 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

4

2145131000
ref: 4

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

6

2311110000
ref: 6

ROD,CLUTCH PUSH

€ 7.50

12

0211206127
ref: 12

SCREW

€ 2.00

13

0916020028
ref: 13

WASHER(20X38X2)

€ 6.50

14

0831000067
ref: 14

NUT

€ 2.50

15

0913406010
ref: 15

SCREW(6X25)

€ 3.00

16

0914020001
ref: 16

NUT

€ 3.50

17

0916006066
ref: 17

WASHER(6.5X20X1.6)

€ 2.00

18

0916720009
ref: 18

WASHER,LOCK

€ 3.00

19

2125113E00
ref: 19

SPACER,PRIMARY DRIVEN GEAR

€ 11.50

21

0928410002
ref: 21

SEAL,OIL (10X17X5)

€ 3.50

22

0928506005
ref: 22

SEAL,OIL (6X30X5)

€ 5.00

23

0944019004
ref: 23

SPRING

€ 3.00

24

0944308001
ref: 24

SPRING

€ 3.00
