ENGINE COVERS

T305 TC305 1969 USA (E03)

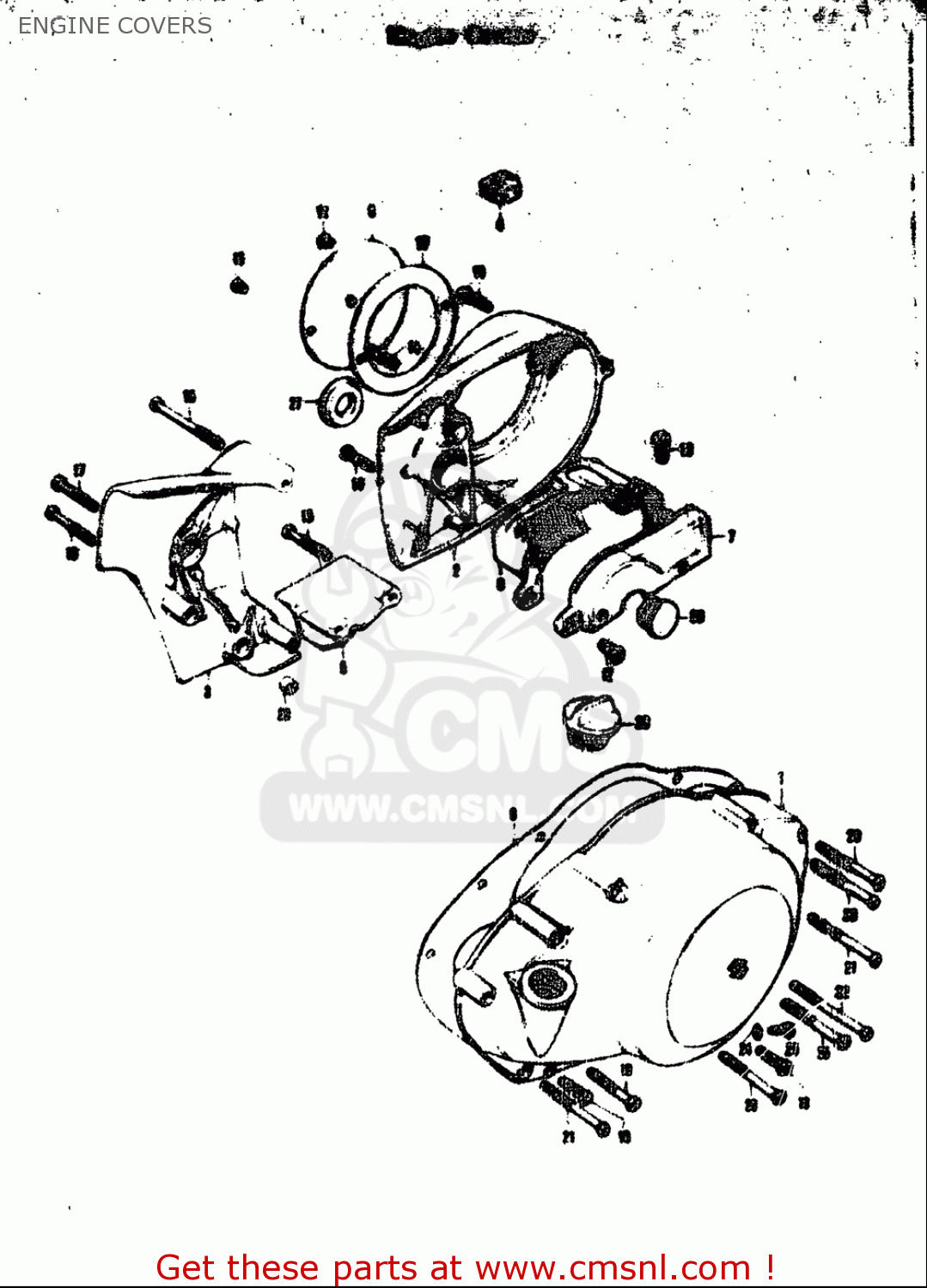

Engine covers diagram T305 TC305 1969 USA (E03)

ENGINE COVERS T305 TC305 1969 USA (E03)

ENGINE COVERS T305 TC305 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

9

1148218001
ref: 9

GASKET,CLUTCH COVER (NAS)

€ 18.50

10

1149110000
ref: 10

GASKET,OIL PAN

€ 3.50

13

0211205167
ref: 13

SCREW

€ 2.50

15

0211205457
ref: 15

SCREW

€ 1.50

18

0211206207
ref: 18

SCREW

€ 2.00

19

0211206407
ref: 19

SCREW

€ 2.00

20

0211206507
ref: 20

SCREW

€ 2.50

21

0211206557
ref: 21

SCREW

€ 2.50

22

0211206657
ref: 22

SCREW

€ 2.00

23

0421109129
ref: 23

PIN

€ 2.00

24

0916806001
ref: 24

GASKET(6.2X11X1) (NAS)

€ 1.50

26

0925020003
ref: 26

CAP(OD:26)

€ 3.00

27

0925030003
ref: 27

CAP(OD:36)

€ 4.00

28

0920020810
ref: 28

PLUG SET

€ 8.00
