PISTON - CRANKSHAFT
T305 TC305 1969 USA (E03)

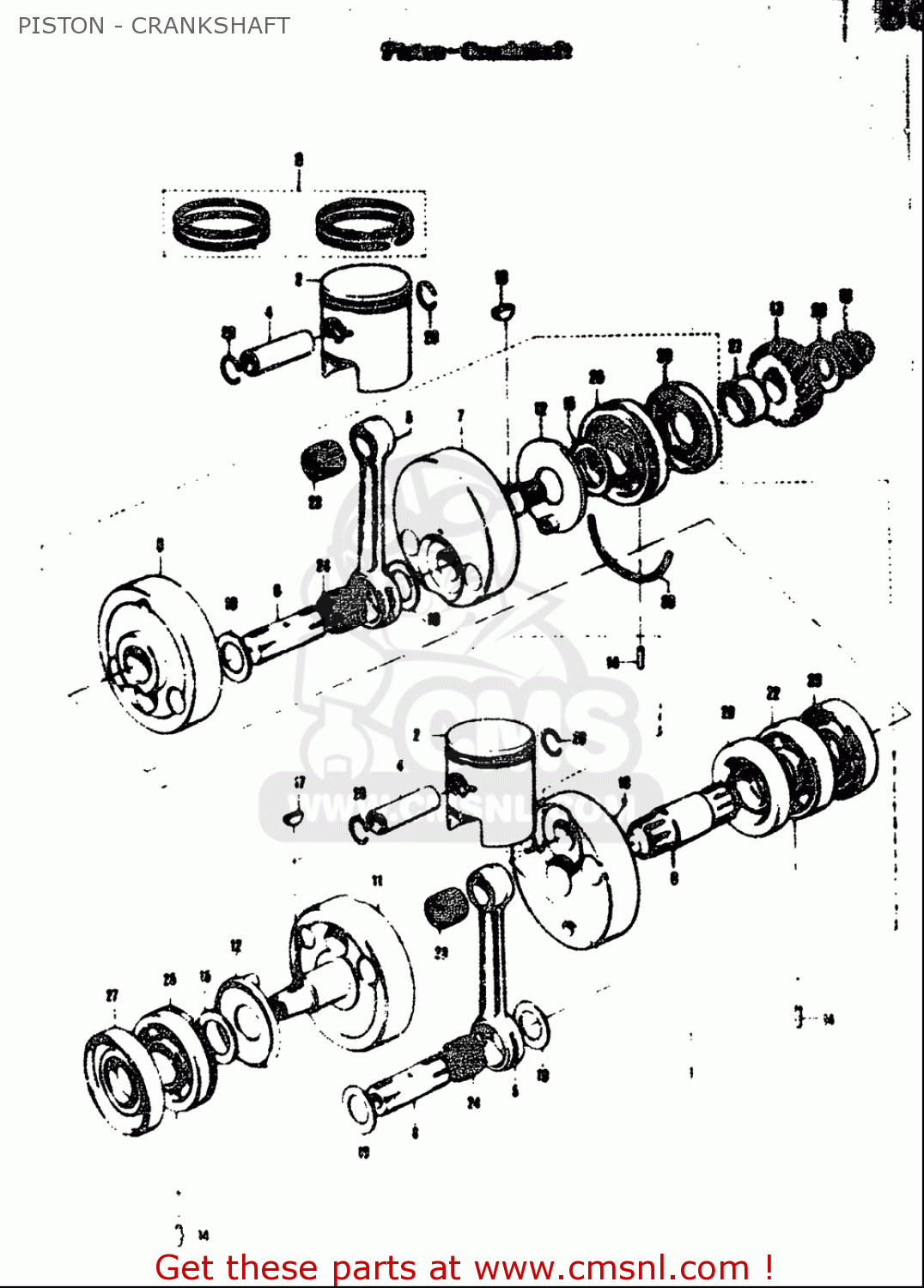

Piston - crankshaft diagram T305 TC305 1969 USA (E03)
PISTON - CRANKSHAFT T305 TC305 1969 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
4
1215160D00
ref: 4
PIN,PISTON
€ 15.00
15
0918125251
ref: 15
SHIM(25X40X1)
€ 2.50
16
0834131039
ref: 16
KEY
€ 2.00
17
0834131059
ref: 17
KEY
€ 3.00
19
0916020010
ref: 19
WASHER (20X34X1)
€ 4.50
20
0916612002
ref: 20
WASHER
€ 2.00
23
0926316015
ref: 23
BEARING(16X21X19.6)
€ 15.00
24
0926320020
ref: 24
BEARING(20X26X16.7)
€ 18.00
25
0926925005
ref: 25
BEARING(25X65X17)
€ 104.50
27
0928325019
ref: 27
SEAL,OIL(25X65X12)
€ 15.00
28
0928332001
ref: 28
SEAL,OIL
€ 13.00
29
0938116001
ref: 29
RING,SNAP 16MM
€ 1.50
