OIL PUMP - OIL HOSE

T305 TC305 1969 USA (E03)

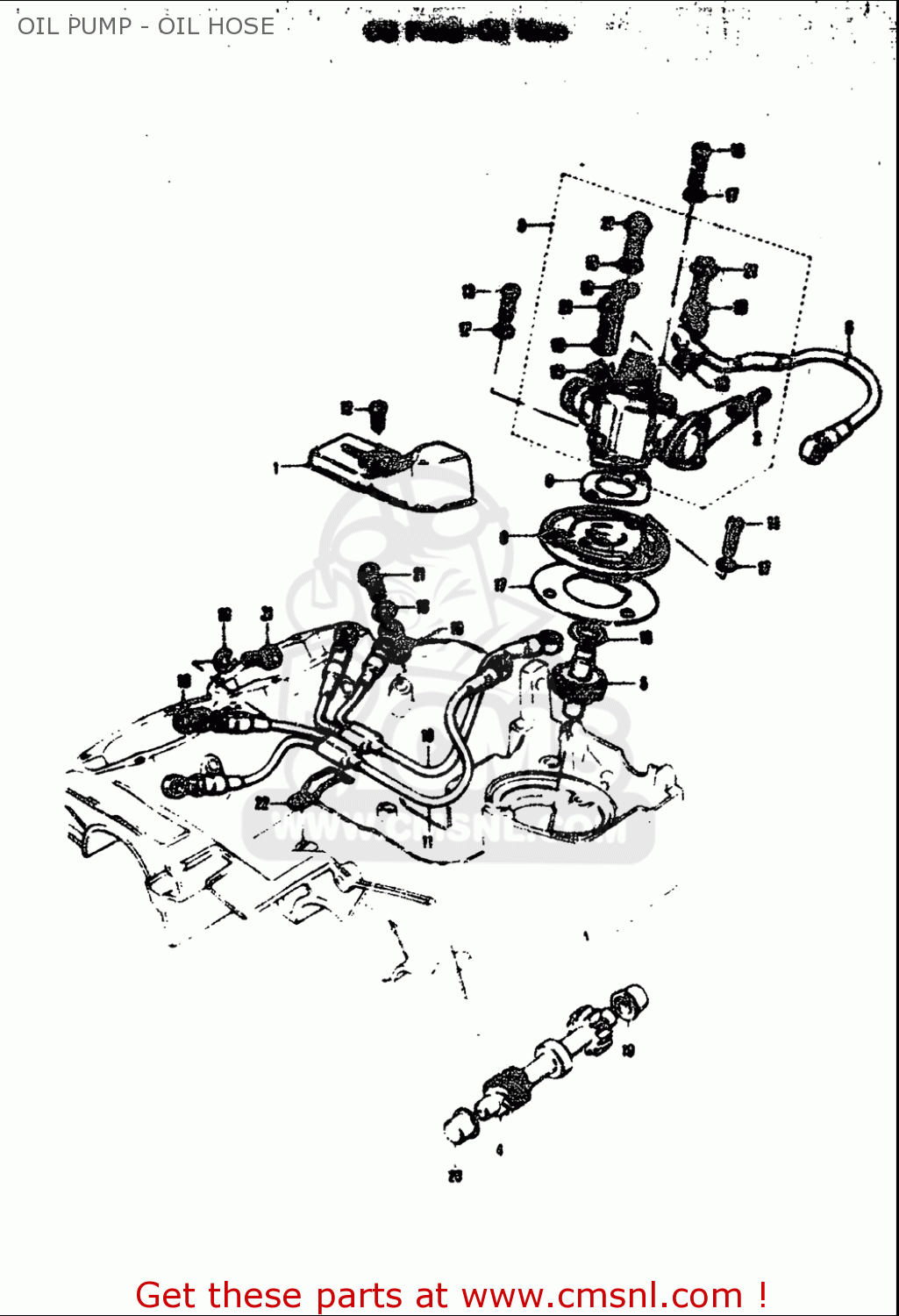

Oil pump - oil hose diagram T305 TC305 1969 USA (E03)

OIL PUMP - OIL HOSE T305 TC305 1969 USA (E03)

OIL PUMP - OIL HOSE T305 TC305 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

2

1368351010
ref: 2

TERMINAL, CABLE

€ 5.50

7

1638118000
ref: 7

GASKET,OIL PUMP GEAR CASE (MCA)

€ 1.50

13

0211206127
ref: 13

SCREW

€ 2.00

16

0918110195
ref: 16

SHIM(10X20X1)

€ 2.00

17

0832201087
ref: 17

WASHER

€ 2.00

18

0916806004
ref: 18

GASKET(6.2X11X1).2 (NAS)

€ 1.50

21

0936006003
ref: 21

UNION BOLT

€ 5.00
