SKID PLATE - MUFFLER - KICK STARTER LEVER

T305 TC305 1969 USA (E03)

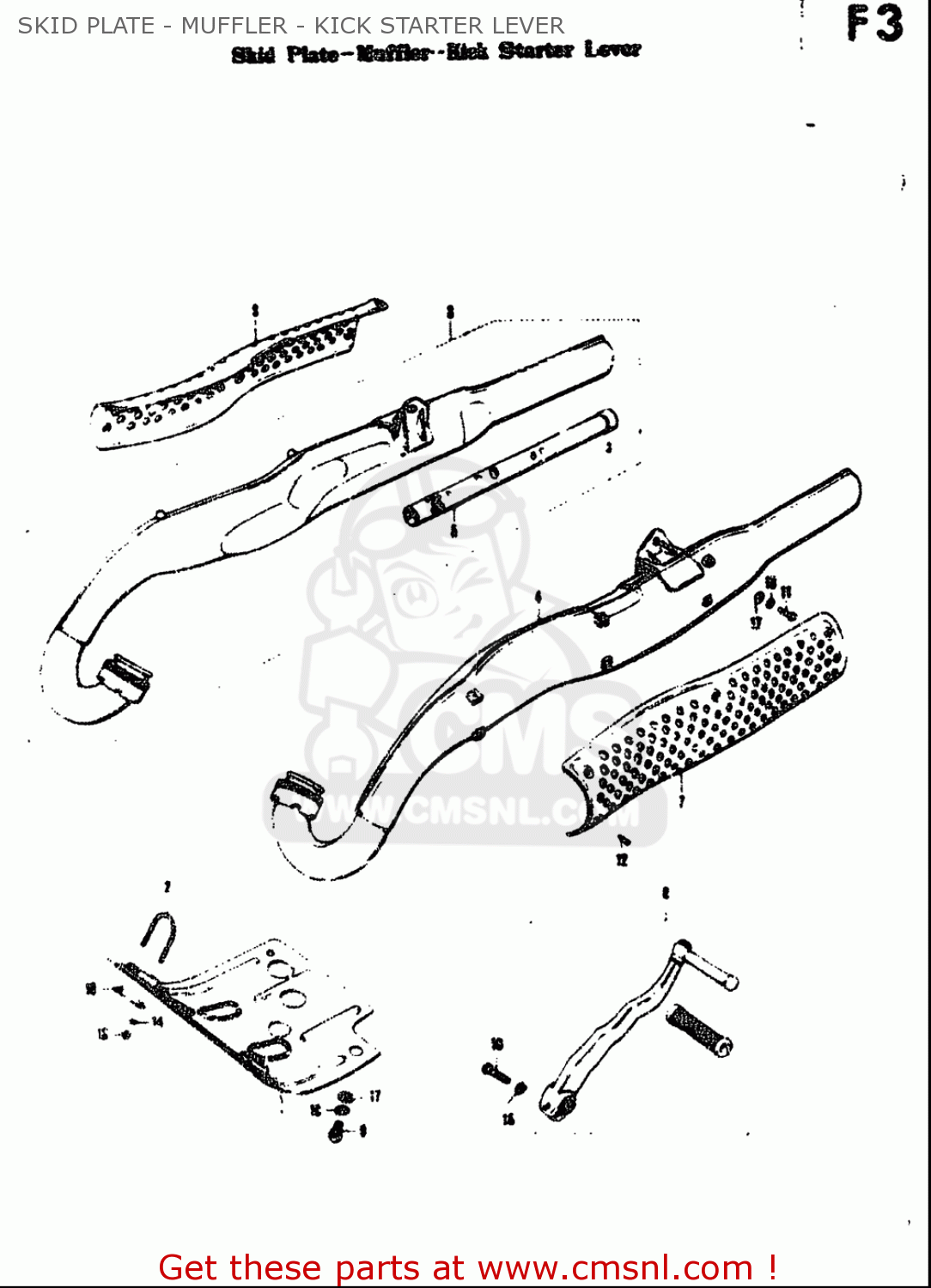

Skid plate - muffler - kick starter lever diagram T305 TC305 1969 USA (E03)

SKID PLATE - MUFFLER - KICK STARTER LEVER T305 TC305 1969 USA (E03)

SKID PLATE - MUFFLER - KICK STARTER LEVER T305 TC305 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

9

0150010167
ref: 9

BOLT

€ 2.50

10

0150008257
ref: 10

BOLT

€ 2.50

11

0120410167
ref: 11

BOLT

€ 3.00

13

0831310067
ref: 13

NUT

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

0832101087
ref: 15

WASHER,LOCK

€ 2.00

16

0832101107
ref: 16

WASHER,LOCK

€ 2.00

17

0832201107
ref: 17

WASHER

€ 2.50

18

0916906001
ref: 18

WASHER

€ 0.00
