KICK STARTER

T305 TC305 1969 USA (E03)

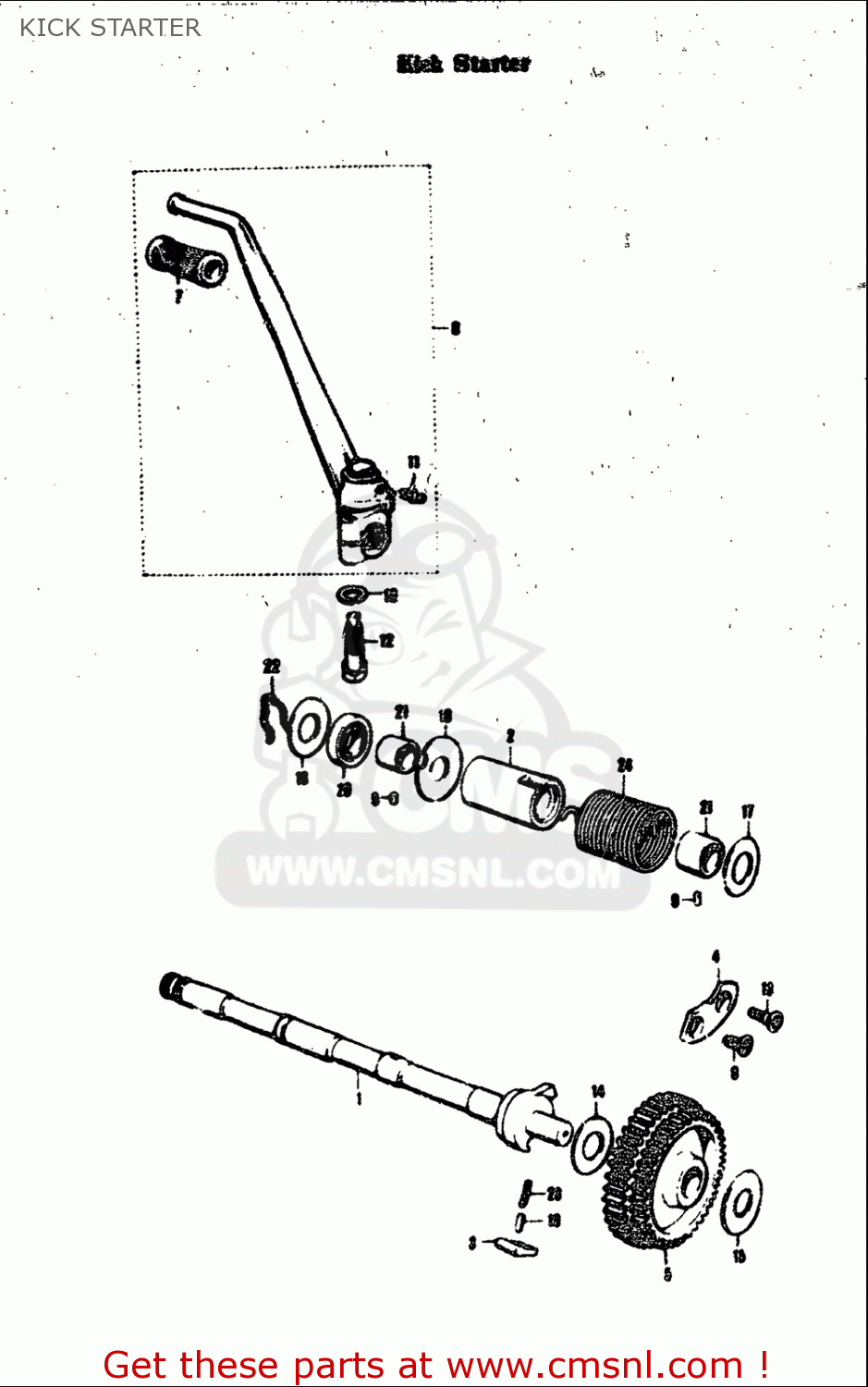

Kick starter diagram T305 TC305 1969 USA (E03)

KICK STARTER T305 TC305 1969 USA (E03)

KICK STARTER T305 TC305 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

7

2635201000
ref: 7

RUBBER,KICK STARTER PEDAL

€ 3.50

8

0212206167
ref: 8

SCREW

€ 2.00

9

0422104069
ref: 9

PIN

€ 2.00

10

0832101107
ref: 10

WASHER,LOCK

€ 2.00

11

0835111009
ref: 11

NIPPLE

€ 32.00

12

0913510002
ref: 12

BOLT(10X37.5)

€ 5.50

13

0913906002
ref: 13

SCREW(6X19)

€ 2.50

14

0916013002
ref: 14

WASHER(13X31.5X1.5)

€ 3.00

15

0916013002
ref: 15

WASHER(13X31.5X1.5)

€ 3.00

17

0916016003
ref: 17

WASHER(16X30X1)

€ 2.50

19

0920905011
ref: 19

PIN(5X15.5)

€ 2.00

23

0944004002
ref: 23

SPRING

€ 1.50

24

0944837001
ref: 24

SPRING

€ 16.50
