BRAKE - CLUTCH LEVER SWITCH BOX

TA250 TWIN ACE 1960

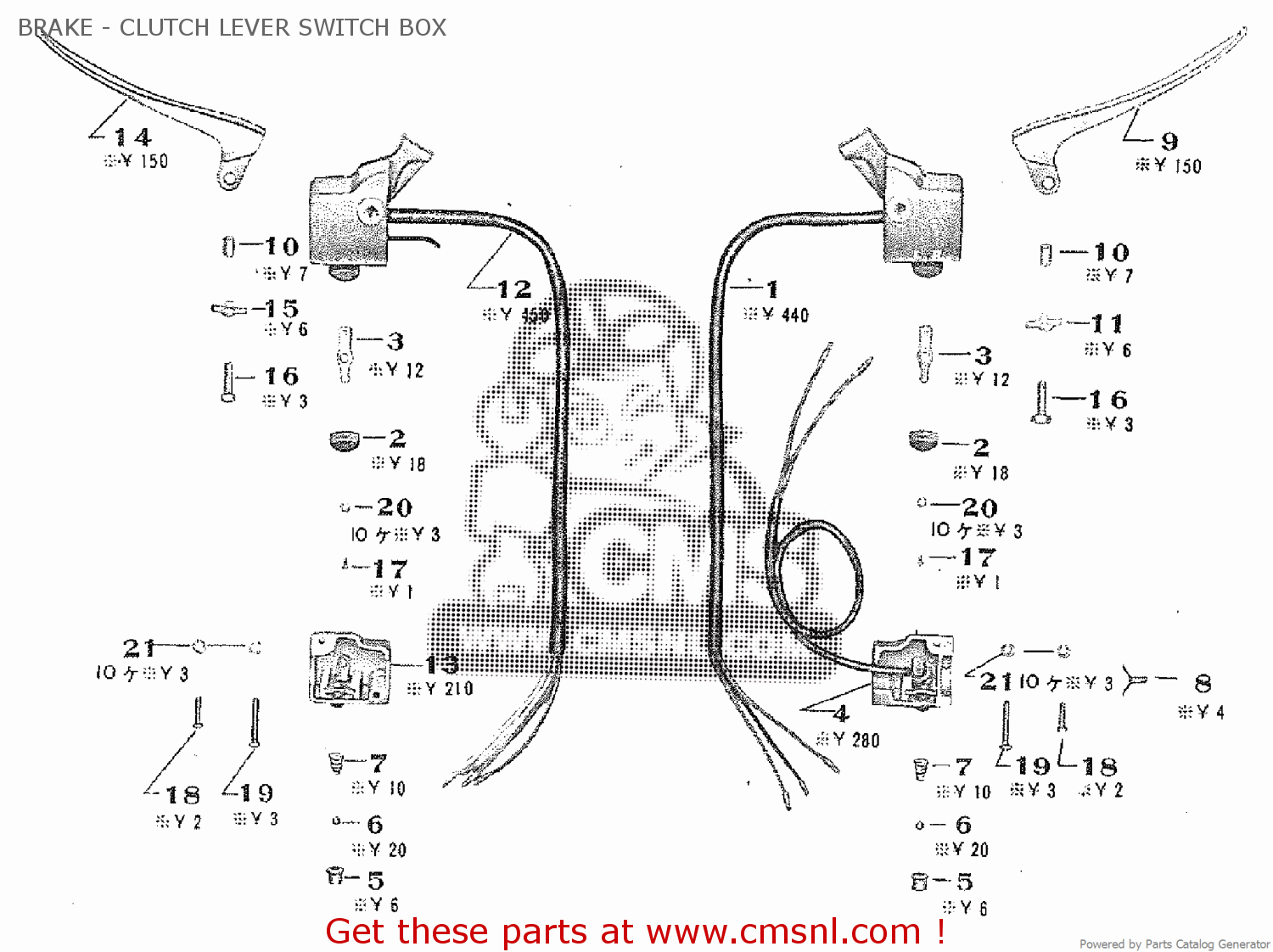

Brake - clutch lever switch box diagram TA250 TWIN ACE 1960

BRAKE - CLUTCH LEVER SWITCH BOX TA250 TWIN ACE 1960
BRAKE - CLUTCH LEVER SWITCH BOX TA250 TWIN ACE 1960
BRAKE - CLUTCH LEVER SWITCH BOX TA250 TWIN ACE 1960
prices are in EUR
ref
part #
description
quantity
0
TA5731
ref: 0
RIGHT SWITCH BOX ASSY.
€ 0.00
1
TA57311
ref: 1
RIGH SWITCH UPPER BOX COMP.
€ 0.00
2
SB573112
ref: 2
SWITCH NOB
€ 0.00
3
TA573113
ref: 3
SWITCH LEVER
€ 0.00
4
TA57312
ref: 4
RIGHT SWITCH UNDER BOX COMP.
€ 0.00
5
SB573122
ref: 5
BOTTON
€ 0.00
6
SB573123
ref: 6
BOTTON POINT COMP.
€ 0.00
7
SB573124
ref: 7
BOTTON SPRING
€ 0.00
8
TA57313
ref: 8
THROTTLE GRIP ADJUSTER SPRING
€ 0.00
9
TA5732
ref: 9
BRAKE LEVER
€ 0.00
10
SB5734
ref: 10
LEVER COLLAR
€ 0.00
11
TA5736
ref: 11
WASHER
€ 0.00
12
TA57411
ref: 12
LEFT SWITCH UNDER BOX ASSY
€ 0.00
12
TA5741
ref: 12
LEFT SWITCH BOX ASSY
€ 0.00
13
TA57412
ref: 13
LEFT SWITCH UNDER BOX ASSY
€ 0.00
14
TA5742
ref: 14
CLUTCH LEVER
€ 0.00
15
TA5746
ref: 15
WASHER
€ 0.00
16
BG0622
ref: 16
6X22 HEXAGON BOLT
€ 2.00
17
PN0306
ref: 17
CROSS HEAD SCREW
€ 1.00
18
PN0516
ref: 18
CROSS HEAD SCREW
€ 0.00
19
PN0528
ref: 19
CROSS SCREW
€ 0.00
20
WS03
ref: 20
8MM SPRING WASHER
€ 1.50
21
WS05
ref: 21
5MM SPRING WASHER
€ 2.00
