REAR SWING ARM - REAR SUSPENSION UNIT

TA250 TWIN ACE 1960

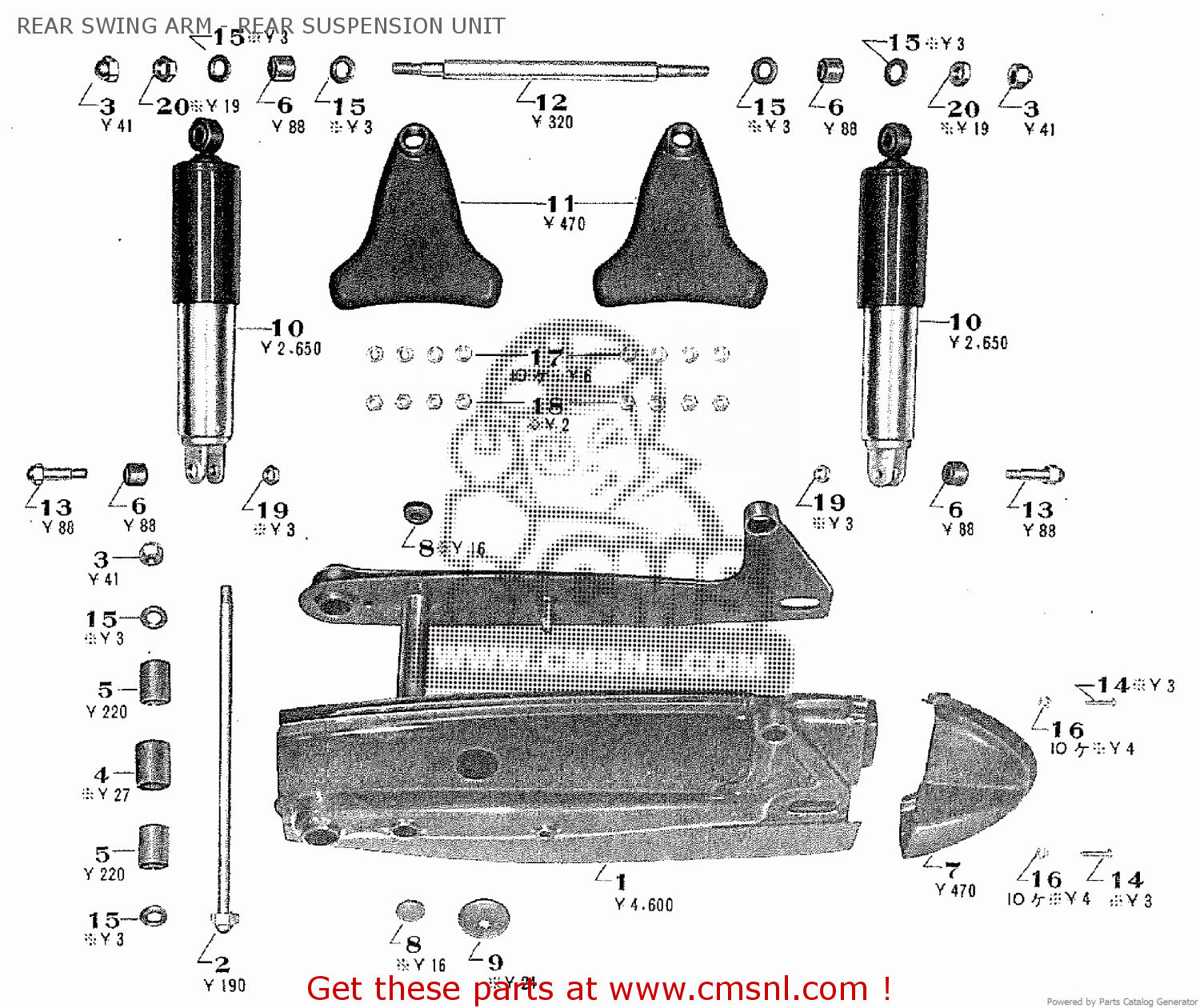

Rear swing arm - rear suspension unit diagram TA250 TWIN ACE 1960

REAR SWING ARM - REAR SUSPENSION UNIT TA250 TWIN ACE 1960
REAR SWING ARM - REAR SUSPENSION UNIT TA250 TWIN ACE 1960
REAR SWING ARM - REAR SUSPENSION UNIT TA250 TWIN ACE 1960
prices are in EUR
ref
part #
description
quantity
1
TA6111
ref: 1
REAR SWING ARM COMP.
€ 0.00
2
TA6121
ref: 2
REAR SWING ARM PIVOT SHAFT
€ 0.00
3
SB6122
ref: 3
PIVOT SHAFT SET NUT
€ 0.00
4
SB6124
ref: 4
CHAIN TOUCH DEFENCE RUBBER
€ 0.00
5
AAR1150
ref: 5
REAR SWING ARM BUSH
€ 0.00
6
AAR1350
ref: 6
BUSH
€ 0.00
7
TA6132
ref: 7
CHAIN CASE END COMP.
€ 0.00
8
TA6141A
ref: 8
SWING ARM JOINT CAP
€ 0.00
9
SB6142
ref: 9
CAP
€ 2.50
10
TA6210A
ref: 10
REAR SUSPENSION ASSY.
€ 0.00
11
SB6251
ref: 11
REAR SUSPENSION UPPER BRACKET COMP.
€ 0.00
12
TA6291
ref: 12
REAR SUSPENSION UPPER SHAFT
€ 0.00
13
SB6292
ref: 13
REAR SUSPENSION UNDER SET BOLT
€ 0.00
14
PN0625
ref: 14
6X25 CROSS SCREW
€ 2.00
15
WM122
ref: 15
12MM WASHER
€ 0.00
16
WS06
ref: 16
6MM SPRING WASHER
€ 2.50
17
WS08
ref: 17
8MM SPRING WASHER
€ 2.00
18
NG081
ref: 18
8MM HEXAGON NUT
€ 2.00
19
NG103
ref: 19
10MM HEXAGON NUT
€ 2.50
20
NG123F
ref: 20
12MM HEXAGON NUT
€ 0.00
