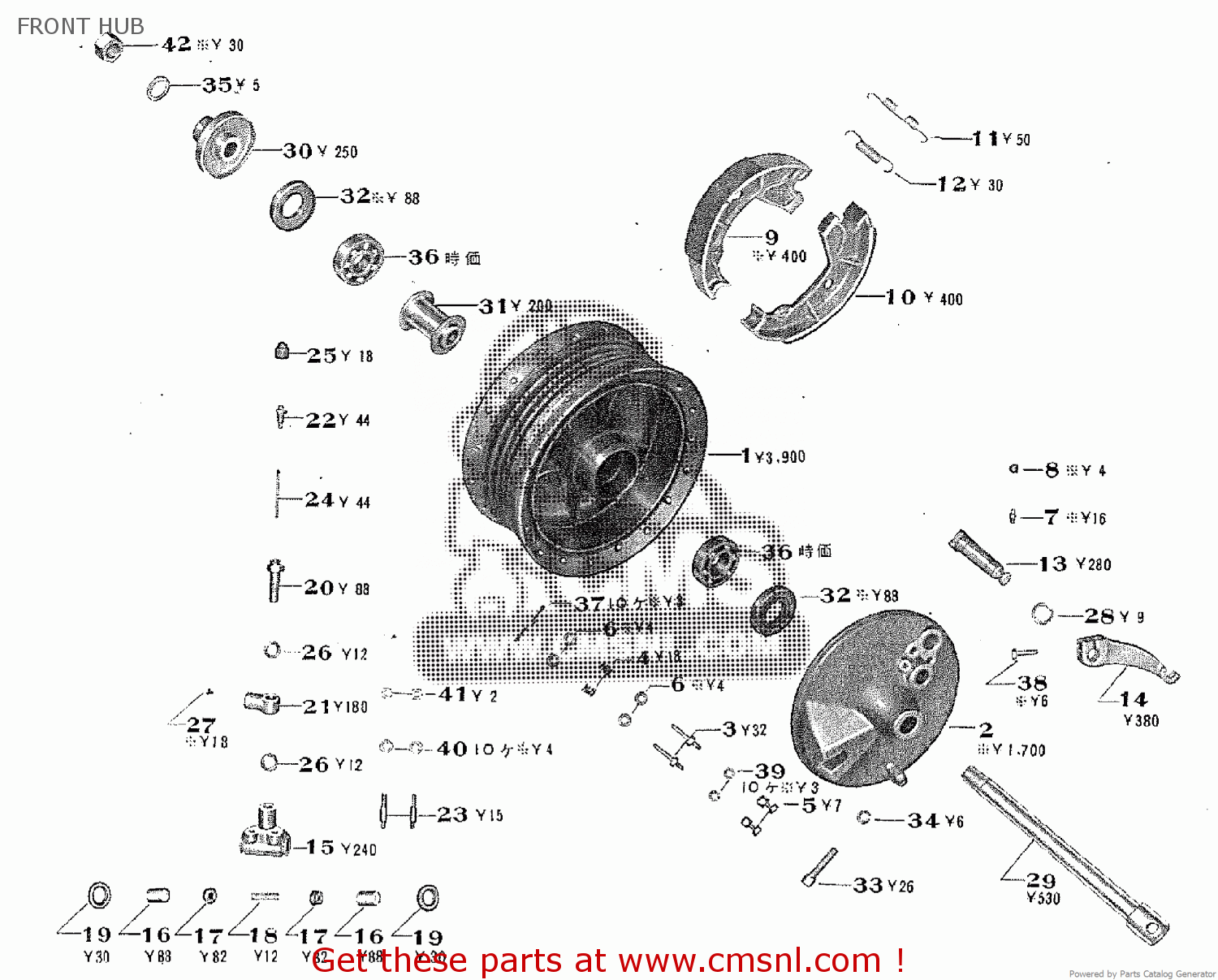

FRONT HUB

ref

part #

description

quantity

0

TA5400
ref: 0

FRONT HUB ASSY.

€ 0.00

1

TA5411
ref: 1

FRONT HUB DRUM COMP.

€ 0.00

2

TA5421
ref: 2

FRONT PANEL COMP.

€ 0.00

3

TA5422
ref: 3

SHOE SUPPORTER SET BOLT

€ 0.00

4

TA5423
ref: 4

SHOE SUPPORTER SPRING

€ 0.00

5

TA5424
ref: 5

SHOE SLIDE PLATE

€ 0.00

6

TA5425
ref: 6

SHOE SUPPORTER SET WASHER

€ 0.00

7

MA5235
ref: 7

GREASE NIPPLE COMP.

€ 0.00

8

MA52352
ref: 8

GREASE NIPPLE CAP

€ 3.00

9

TA54311
ref: 9

TRAILING SHOE COMP.

€ 0.00

10

TA54312
ref: 10

LEADING SHOE COMP.

€ 0.00

11

TA54321
ref: 11

SHOE RETURN UPPER SPRING

€ 0.00

12

TA54322
ref: 12

SHOE RETURN SPRING

€ 0.00

13

TA5433
ref: 13

FRONT BRAKE CAM

€ 0.00

14

TA5435
ref: 14

FRONT BRAKE LEVER

€ 0.00

15

TA54381
ref: 15

FRONT WHEEL CYLINDER

€ 0.00

15

TA5438
ref: 15

FRONT WHEEL CYLINDER ASSY.

€ 0.00

16

TA54382
ref: 16

PISTON

€ 0.00

17

TA54383
ref: 17

FRONT WHEEL CYLINDER CUP

€ 0.00

18

TA54384
ref: 18

WHEEL CYLINDER SPRING

€ 0.00

19

TA54385
ref: 19

FRONT WHEEL CYLINDER DUST COVER

€ 0.00

20

TA54386
ref: 20

CONNECTOR BOLT

€ 0.00

21

TA54387
ref: 21

WHEEL CYLINDER UNION

€ 0.00

22

TA54388
ref: 22

BLEEDER VALVE

€ 0.00

23

TA54389
ref: 23

WHEEL CYLINDER STUD BOLT

€ 0.00

24

TA543810
ref: 24

WHEEL CYLINDER BLEEDER PIPE

€ 0.00

25

TA543811
ref: 25

BLEEDER VALVE CAP

€ 0.00

26

TA543812
ref: 26

UNION PACKING

€ 0.00

27

TA543813
ref: 27

TUBE JOINT SHEET

€ 0.00

28

TA5439
ref: 28

FRONT BRAKE CAM WASHER

€ 0.00

29

TA5451
ref: 29

FRONT HUB SHAFT COMP.

€ 0.00

30

TA5452
ref: 30

FRONT HUB COLLAR

€ 0.00

31

TA5462
ref: 31

FRONT BEARING DISTANCE COLLAR

€ 0.00

32

TA5471
ref: 32

HUB DRUM OIL SEAL

€ 0.00

33

AAH1241
ref: 33
STH1218

BRAKE WIRE ADJUSTER

€ 0.00

34

AAH1242
ref: 34
STH1218

BRAKE WIRE ADJUSTER NUT

€ 0.00

35

AAH1491
ref: 35

FRONT HUB SHAFT SET WASHER

€ 0.00

36

JK6303
ref: 36

BALL BEARING

€ 0.00

37

PW2012
ref: 37

2.0X12 COTTER PIN

€ 1.50

38

BG0618F
ref: 38

6X18 HEXAGON BOLT

€ 1.50

39

WS05
ref: 39

5MM SPRING WASHER

€ 2.00

40

WS06
ref: 40

6MM SPRING WASHER

€ 2.50

41

NG061
ref: 41

6MM HEXAGON NUT

€ 2.50

42

NK162F
ref: 42

16MM LIGHT HEXAGON NUT

€ 3.00

all assemblies
