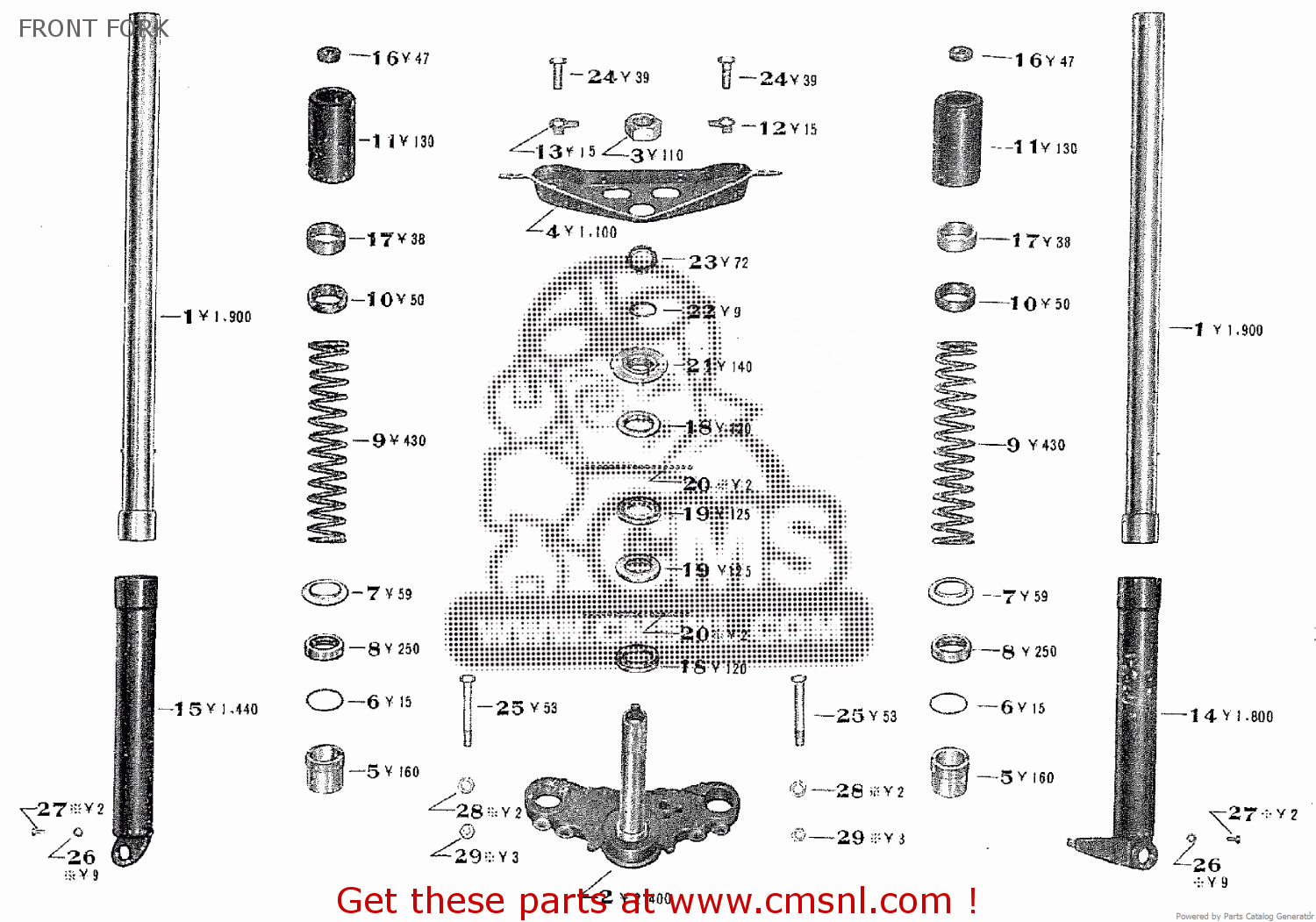

FRONT FORK

ref

part #

description

quantity

1

TA51001
ref: 1

INNER TUBE COMP.

€ 0.00

2

TA51003
ref: 2

UNDER BRACKET COMP.

€ 0.00

3

TA510034
ref: 3

UPPER BRACKET SET NUT

€ 0.00

4

TA51004
ref: 4

UPPER BRACKET

€ 0.00

5

TA51008
ref: 5

SLIDE METAL

€ 0.00

6

SB510010
ref: 6

WASHER

€ 0.00

7

SB510011
ref: 7

SPRING SHEET (A)

€ 0.00

8

TA510012
ref: 8

OIL SEAL

€ 0.00

9

TA510013
ref: 9

SPRING

€ 17.50

10

TA510014
ref: 10

SPRING SHEET (B)

€ 0.00

11

TA510015
ref: 11

SPRING COVER

€ 0.00

12

SB5100161
ref: 12

RIGHT UPPER BRACKET SET WASHER

€ 0.00

13

SB5100162
ref: 13

LEFT UPPER BRACKET SET WASHER

€ 0.00

14

TA510017
ref: 14

RIGHT OUTER TUBE COMP.

€ 0.00

15

SB510018
ref: 15

LEFT OUTER TUBE COMP.

€ 0.00

16

TA510020
ref: 16

INNER TUBE PACKING

€ 0.00

17

TA510021
ref: 17

VINYL PIPE

€ 0.00

18

AAF1131
ref: 18

STEERING OUTER RACE

€ 9.50

19

AAF1132
ref: 19

STEERING INNER RACE

€ 10.50

20

AAF1141
ref: 20

STEERING HEAD STEEL BALL

€ 0.00

21

AAF1151
ref: 21

STEERING NUT

€ 39.00

22

AAF1152
ref: 22

STEERING SHAFT WASHER

€ 0.00

23

AAF1153
ref: 23

STEERING SHAFT LOCK NUT

€ 0.00

24

AAF1293
ref: 24

UPPER BRACKET SET BOLT

€ 0.00

25

AAF1295
ref: 25

UNDER BRACKET SET BOLT

€ 0.00

26

AAF1425
ref: 26

DRAIN PLUG PACKING

€ 4.00

27

PN0610
ref: 27

6X10 CROSS SCREW

€ 1.50

28

WS10
ref: 28

10MM SPRING WASHER

€ 2.00

29

NG101
ref: 29

10MM HEXAGON NUT

€ 2.50
