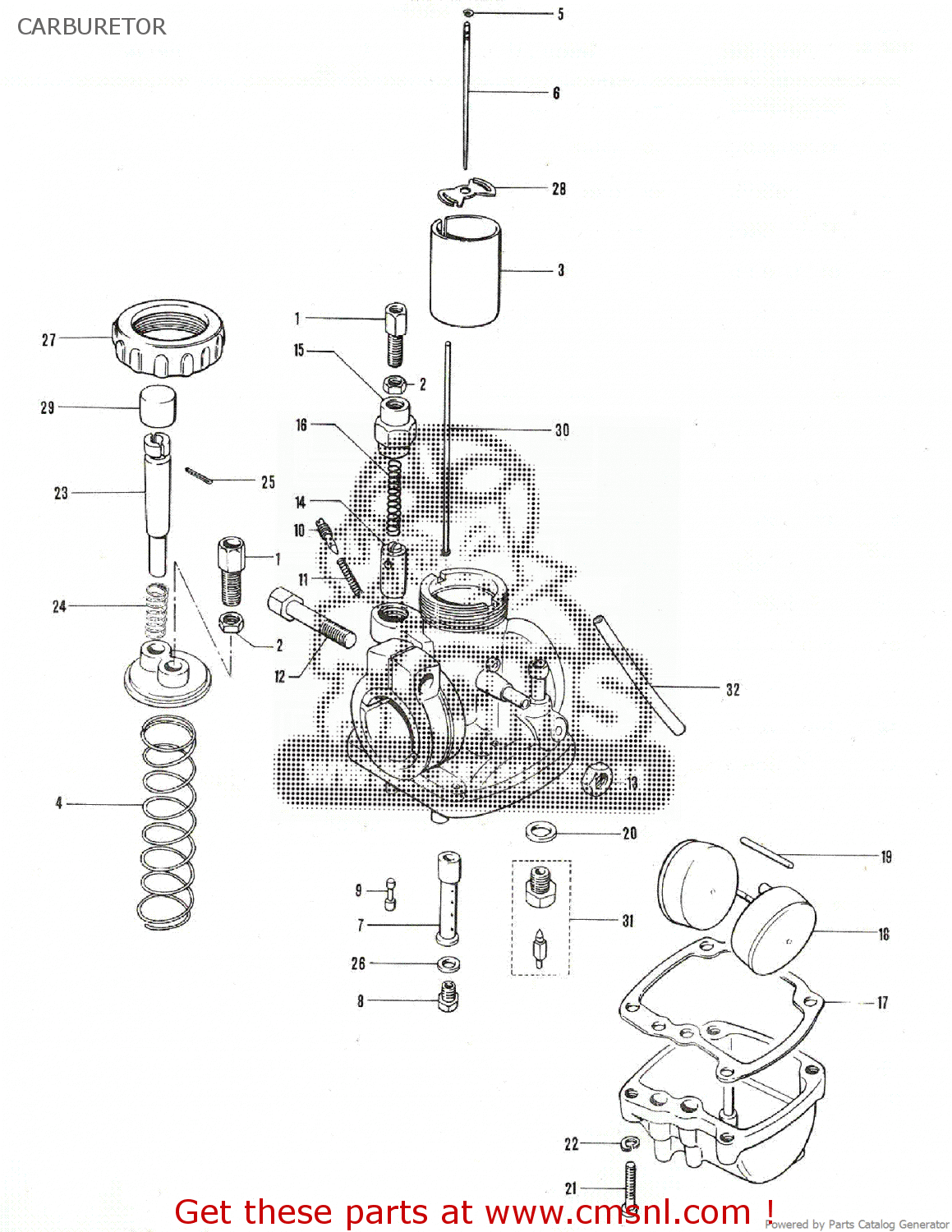

CARBURETOR

ref

part #

description

quantity

0

1320025110
ref: 0

CARBURETOR ASSEMBLY

€ 60.00

1

1357703010
ref: 1

ADJUSTER,CABLE

€ 8.00

2

1366103010
ref: 2

NUT

€ 3.50

3

1355125110
ref: 3
C.A.=2.5

VALVE,THROTTLE

€ 6.00

4

1357309210
ref: 4

SPRING,THROTTLE VALVE

€ 3.00

5

1339412110
ref: 5

CLIP,NEEDLE

€ 3.00

6

1338325110
ref: 6
5F12

NEEDLE JET

€ 9.50

7

0949400074
ref: 7
E1

JET,NEEDLE

€ 20.00

8

0949136002
ref: 8
#180

JET,MAIN(180)

€ 7.50

9

0949217002
ref: 9
#17.5

JET

€ 7.50

10

1326901010
ref: 10

SCREW,PILOT AIR

€ 14.50

11

1327101010
ref: 11

SPRING

€ 3.50

12

1332303010
ref: 12

BOLT,CARBURETOR CLIP

€ 0.00

13

1332403010
ref: 13

NUT

€ 3.00

14

1341101010
ref: 14

PLUNGER,STARTER

€ 14.00

15

1341803110
ref: 15

CAP,STARTER PLUNGER

€ 6.50

16

1341701010
ref: 16

SPRING

€ 3.50

17

1325109210
ref: 17

GASKET,FLOAT CHAMBER

€ 3.00

18

1325209210
ref: 18

FLOAT

€ 23.00

19

1325401010
ref: 19

PIN,FLOAT

€ 3.00

20

1339201010
ref: 20

GASKET,NEEDLE VALVE (NAS)

€ 2.50

21

0211104188
ref: 21

SCREW

€ 1.00

22

0832121048
ref: 22

LOCK WASHER

€ 2.00

23

1326705010
ref: 23

SCREW,THROTTLE STOP

€ 10.50

24

1326805010
ref: 24

SPRING,THROTTLE STOP SCREW

€ 5.50

25

0411112088
ref: 25

PIN

€ 2.00

26

1338203110
ref: 26

WASHER

€ 2.50

27

1326525010
ref: 27

CAP,MIXING CHAMBER

€ 0.00

28

1358109210
ref: 28

STOPPER,NEEDLE CLIP

€ 5.50

29

1368808010
ref: 29

CAP,THROTTLE VALVE STOP SCREW

€ 4.00

30

1329611010
ref: 30

ROD,THROTTLE VALVE ADJUST

€ 6.50

31

1337011010
ref: 31

VALVE ASSY,NEEDLE

€ 62.50

32

1321825110
ref: 32

HOSE

€ 0.00
