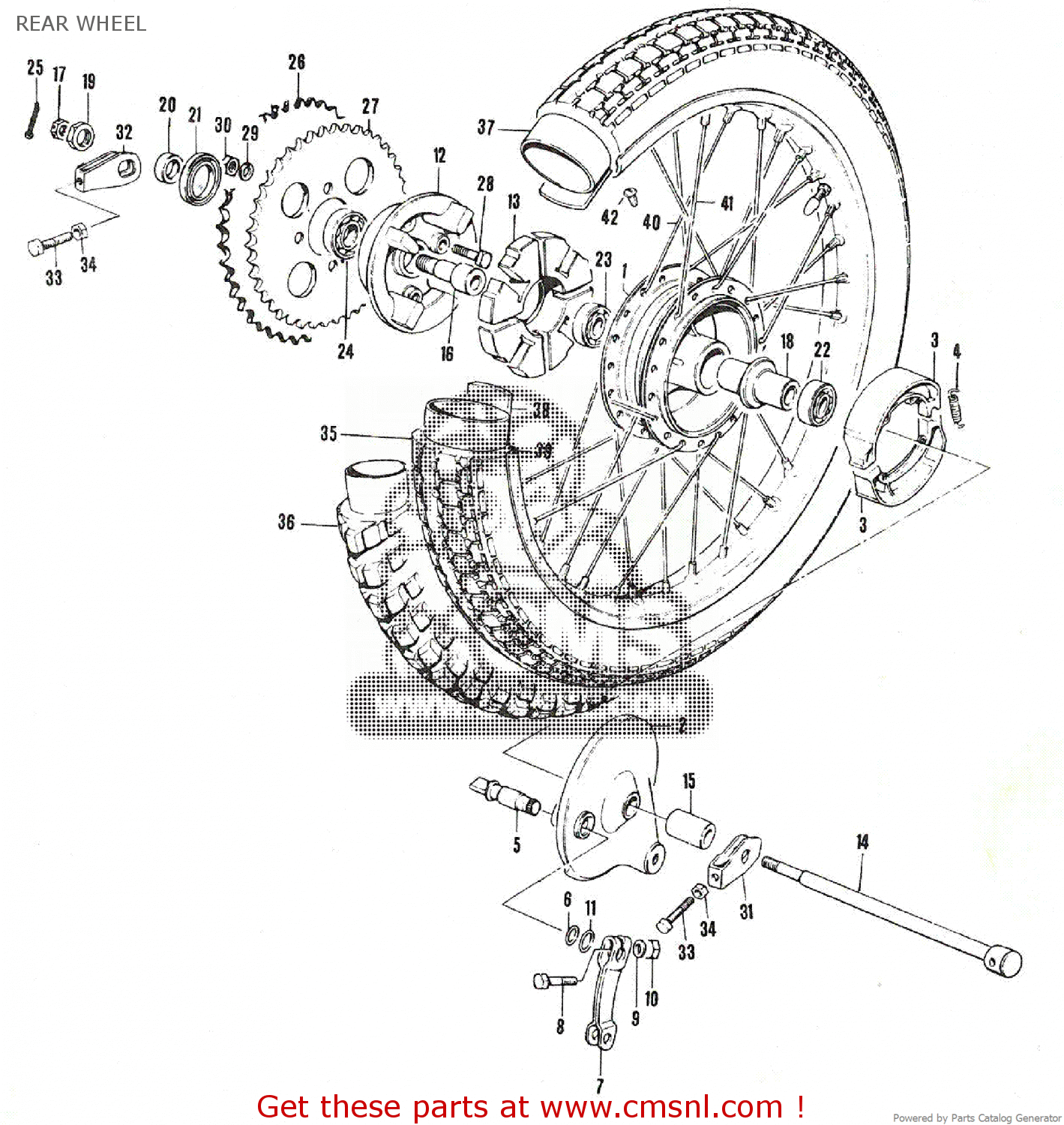

REAR WHEEL

ref

part #

description

quantity

0

6410007610
ref: 0

HUB SET,REAR

€ 0.00

1

6411007001
ref: 1

HUB,REAR WHEEL

€ 156.50

2

6421007000
ref: 2

PANEL,REAR HUB

€ 88.00

3

5441007001
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444107000
ref: 5

CAM,FRONT BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

6445120000
ref: 7

LEVER,REAR BRAKE CAM

€ 11.00

8

0910006050
ref: 8
6SCREW,L.=30(1.18)

BOLT

€ 1.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831111068
ref: 10

NUT

€ 2.50

11

0916012011
ref: 11
12.5X20X1(0.49X0.79X0.04)

WASHER(12.5X20X1)

€ 1.50

12

6461107000
ref: 12

DRUM,RR SPROCKET

€ 47.00

13

6465107000
ref: 13

CUSHION,REAR DRUM

€ 16.00

14

6471107611
ref: 14

AXLE,RR

€ 31.00

15

0918015002
ref: 15
15.2X26X33(0.60X1.02X1.30)

SPACER(15.2X26X33)

€ 5.00

16

6476107000
ref: 16

SHAFT,RR SPROCKET DRUM

€ 11.50

17

0831431128
ref: 17

NUT 12MM

€ 2.00

18

6473007001
ref: 18

SPACER,REAR HUB BEARING

€ 8.50

19

0914018001
ref: 19

NUT

€ 3.00

20

0918020004
ref: 20
20X28X13(0.78X1.10X0.51)

SPACER(20X28X13)

€ 6.00

21

0928328002
ref: 21
22X42X6(0.87X1.65X0.24)

OIL SEAL

€ 11.50

22

0814463020
ref: 22

BEARING

€ 17.50

23

0814362020
ref: 23

BEARING

€ 12.50

24

0811362040
ref: 24

Bearing

€ 28.00

25

0411130258
ref: 25

PIN

€ 1.50

27

6451125000
ref: 27
N.T.=47

SPROCKET,REAR

€ 64.50

28

0910508001
ref: 28

BOLT(8X33.5)

€ 2.50

29

0832121088
ref: 29

LOCK WASHER

€ 2.00

30

0831231088
ref: 30

NUT

€ 2.00

31

6141020100
ref: 31

ADJUSTER,CHAIN

€ 8.00

32

6142020100
ref: 32

ADJUSTER,CHAIN

€ 11.00

33

0910406002
ref: 33

BOLT(6X38)

€ 2.00

34

0831111068
ref: 34

NUT

€ 2.50

36

6510020210
ref: 36
KNOBY TIRE,3.00-18

TIRE

€ 0.00

37

5520011601
ref: 37
2.75-18

TUBE,INNER

€ 24.50

38

5526111010
ref: 38

PROTECTOR,INNER TUBE

€ 3.50

39

6531120120
ref: 39
1.60AX18

RIM,REAR WHEEL

€ 86.50

39

6530020808
ref: 39

SPOKE SET,REAR

€ 34.50

40

6532120120
ref: 40

SPOKE SET,REAR WHEEL

€ 0.00

41

6532220120
ref: 41

SPOKE,RR WHEEL OUTER

€ 2.00

42

6532503020
ref: 42

NIPPLE,SPOKE

€ 0.00
