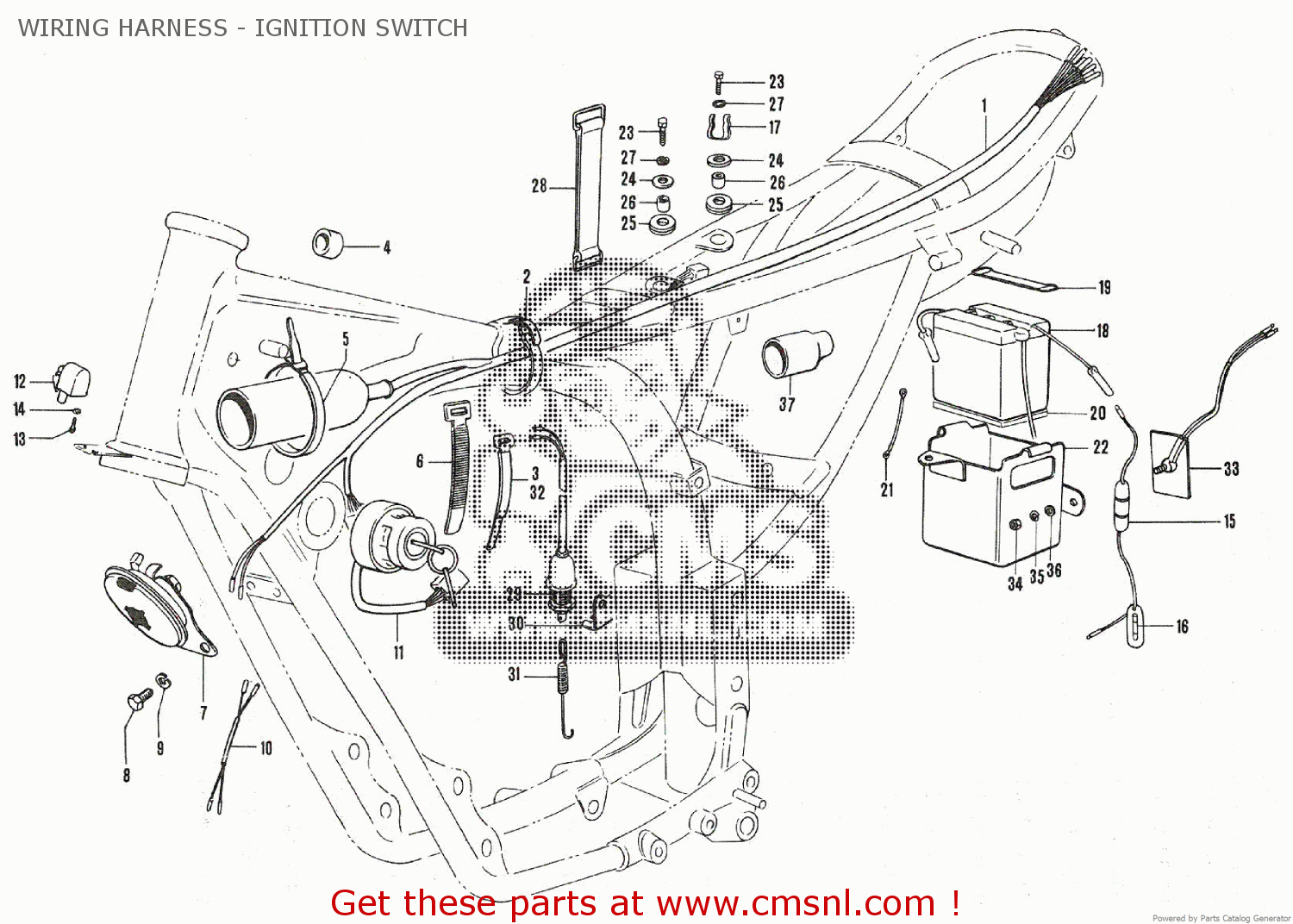

WIRING HARNESS - IGNITION SWITCH

ref

part #

description

quantity

1

3661025000
ref: 1

WIRING HARNESS

€ 0.00

2

0941000021
ref: 2

CLAMP

€ 4.50

3

0941000020
ref: 3

CLAMP

€ 6.00

4

3388158001
ref: 4

WIRING HARNESS BAND

€ 0.50

5

0941000022
ref: 5

CLAMP

€ 4.50

6

0941000023
ref: 6

CLAMP

€ 3.00

7

3850025030
ref: 7

HORN ASSEMBLY

€ 30.00

8

0112108128
ref: 8

SMALL HEAD HEXAGON BOLT

€ 2.50

9

0832121088
ref: 9

LOCK WASHER

€ 2.00

10

3859525000
ref: 10

38599-06300

€ 0.00

11

3711025010
ref: 11

IGNITION SWITCH ASS'Y

€ 0.00

12

5190019010
ref: 12

LOCK ASSEMBLY,STEERING

€ 22.50

13

0211105108
ref: 13

SCREW

€ 2.00

14

0832121058
ref: 14

LOCK WASHER

€ 2.00

15

3674015600
ref: 15

BOX ASSEMBLY,FUSE

€ 11.00

16

0948115001
ref: 16
15A

FUSE(15A)

€ 3.00

17

3679125000
ref: 17

HOLDER,FUSE CASE

€ 3.50

18

3361003010
ref: 18
6V,4AH

BATTERY ASSY(6N4-2A4.2AH)

€ 42.00

19

0946200001
ref: 19

BAND

€ 8.50

20

3365125000
ref: 20

CUSHION,BATTERY

€ 1.50

21

3666025000
ref: 21

WIRE

€ 0.00

22

4154025000
ref: 22

HOLDER,BATTERY

€ 0.00

23

0111206168
ref: 23

BOLT

€ 3.00

24

0916006027
ref: 24
6.5X20X1.2(0.26X0.79X0.05)

WASHER (6.5X20X1.2)

€ 2.00

25

0932008007
ref: 25

CUSHION

€ 4.00

26

0918007005
ref: 26
7X9X7(0.28X0.35X0.28)

SPACER (7X9X7)

€ 2.50

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

0946200033
ref: 28

BAND

€ 6.50

29

3774020010
ref: 29

SWITCH,BRAKE LAMP

€ 22.00

30

3775225000
ref: 30

BRAKE LAMP SWITCH BRACKET

€ 6.00

31

0944306011
ref: 31

SPRING

€ 6.00

32

0941000020
ref: 32

CLAMP

€ 6.00

33

3280001020
ref: 33

RECTIFIER ASSEMBLY

€ 10.50

34

0831111058
ref: 34

NUT

€ 2.50

35

0832121058
ref: 35

LOCK WASHER

€ 2.00

36

0832221058
ref: 36

WASHER

€ 2.50

37

3661828000
ref: 37

COVER,WIRING HARNESS

€ 8.50
