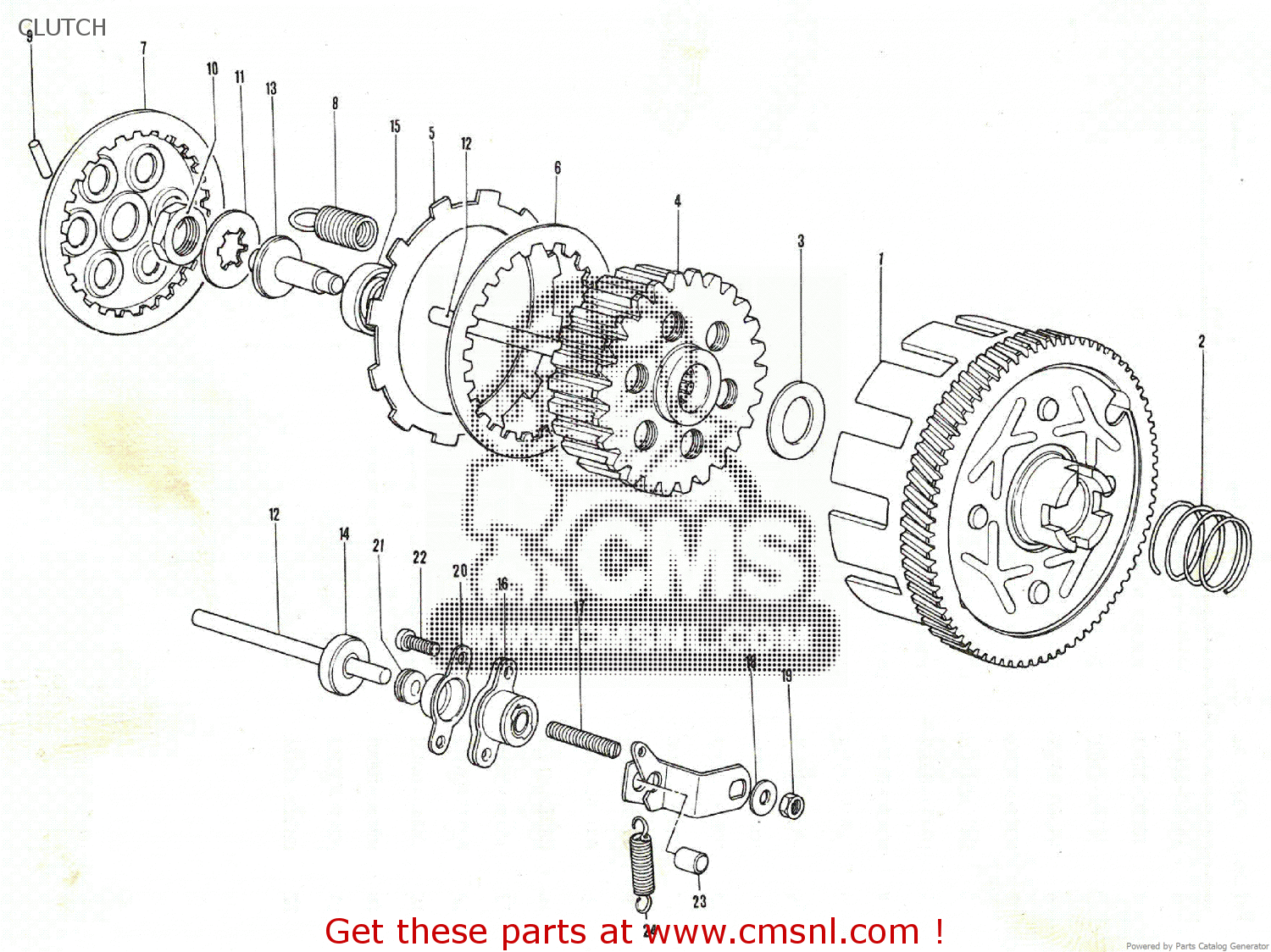

CLUTCH

ref

part #

description

quantity

1

2120025000
ref: 1
N.T.=73

GEAR ASSEMBLY,PRIMARY DRIVE

€ 112.00

2

0944032001
ref: 2

SPRING

€ 2.00

3

0916017003
ref: 3
17X29X1.5(0.67X1.14X0.06)

WASHER

€ 3.00

4

2141123000
ref: 4

HUB,CLUTCH SLEEVE

€ 39.00

5

2144112000
ref: 5

PLATE,CLUTCH DRIVE (MCA)

€ 12.00

6

2145123000
ref: 6

PLATE,CLUTCH DRIVEN (NAS)

€ 6.50

7

2146023000
ref: 7

PLATE,CLUTCH PRESSURE

€ 24.00

8

0944312003
ref: 8

SPRING

€ 3.00

9

0926102001
ref: 9

PIN(2.5X19.8)

€ 1.50

10

0914016001
ref: 10

NUT

€ 4.50

11

0916717002
ref: 11

WASHER,LOCK

€ 2.00

12

2311113000
ref: 12

PUSH ROD

€ 0.00

13

2312114000
ref: 13

ROD,CLUTCH RELEASE

€ 13.50

14

0928505004
ref: 14

SEAL,OIL(5.5X16X8)

€ 12.00

15

0928410002
ref: 15

SEAL,OIL (10X17X5)

€ 3.50

16

2320025000
ref: 16

SCREW ASSEMBLY,CLUTCH RELEASE

€ 31.50

17

0913406001
ref: 17

SCREW

€ 3.00

18

0916006019
ref: 18
6.5X16X1.2(0.26X0.63X0.05)

WASHER(6.5X16X1.2)

€ 1.50

19

0831131068
ref: 19

NUT

€ 2.50

20

2324123000
ref: 20

COVER,CLUTCH RELEASE SCREW

€ 12.00

21

0928105001
ref: 21

SEAL,DUST(5.3X13X5)

€ 2.50

22

0211105168
ref: 22

SCREW

€ 2.50

23

2322207000
ref: 23

PIECE,RELEASE ARM END

€ 5.00

24

0944308001
ref: 24

SPRING

€ 3.00
