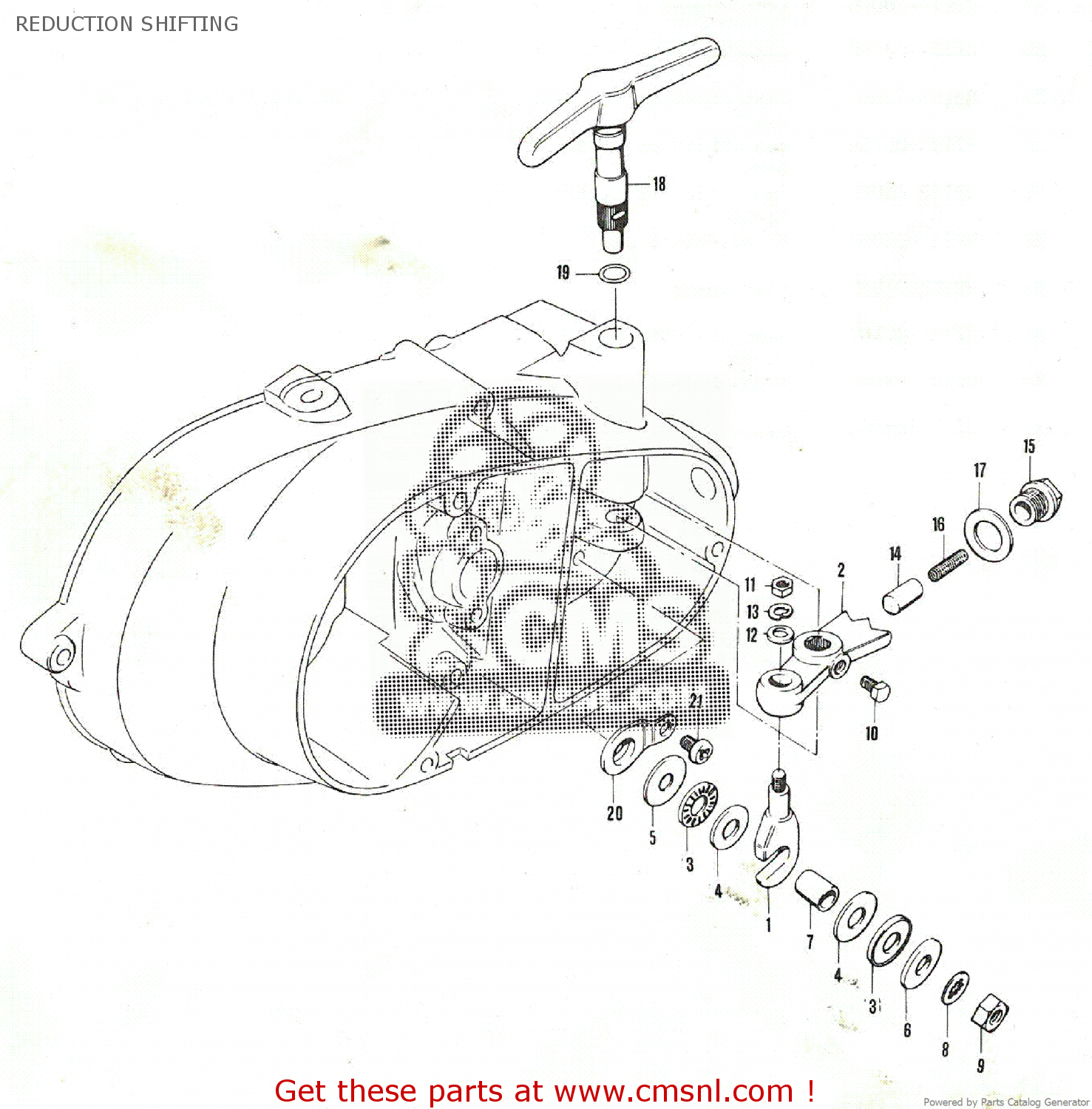

REDUCTION SHIFTING

ref

part #

description

quantity

1

2581107401
ref: 1

REDUCTION SHIFTING ARM PIN

€ 9.00

2

2581225100
ref: 2

ARM,REDUCTION SHAFT

€ 11.50

3

0926310002
ref: 3
10X22X2.8(0.39X0.87X0.11)

BEARING(10X22X2.8)

€ 8.50

4

0916010021
ref: 4
10X21X0.8(0.39X0.87X0.03)

WASHER(10.1X21.4X0.8)

€ 3.00

5

0821106223
ref: 5

WASHER

€ 1.50

6

0916006033
ref: 6
6X22X2(0.24X0.87X0.08)

WASHER (6X22X2)

€ 2.50

7

0918006017
ref: 7
6X10X12.2(0.24X0.39X0.48)

SPACER(6X10X12.2)

€ 4.00

8

0832321068
ref: 8

LOCK WASHER

€ 1.50

9

0831111068
ref: 9

NUT

€ 2.50

10

0111105088
ref: 10

BOLT 5X16

€ 2.00

11

0831111058
ref: 11

NUT

€ 2.50

12

0832221058
ref: 12

WASHER

€ 2.50

13

0832121058
ref: 13

LOCK WASHER

€ 2.00

14

2535125100
ref: 14

STOPPER,GEAR SHIFTING

€ 9.00

15

2535225100
ref: 15

HOLDER,SHIFTING CAM STOPPER

€ 7.50

16

0944008009
ref: 16

SPRING

€ 1.50

17

0916016015
ref: 17
16.2X22X1(0.64X0.87X0.04)

WASHER (16.5X42X2.6)

€ 2.00

18

2582025100
ref: 18

REDUCTION SHIFTING LEVER

€ 13.00

19

0928010001
ref: 19

O RING(D:1.3,ID:9.6)

€ 2.00

20

2583007440
ref: 20

REDUCTION ROD DUST SEAL

€ 4.50

21

0211106088
ref: 21

SCREW

€ 2.00

REDUCTION SHIFTING

all assemblies
