2ND AIR
TL1000R 2003 (K3) USA (E03)

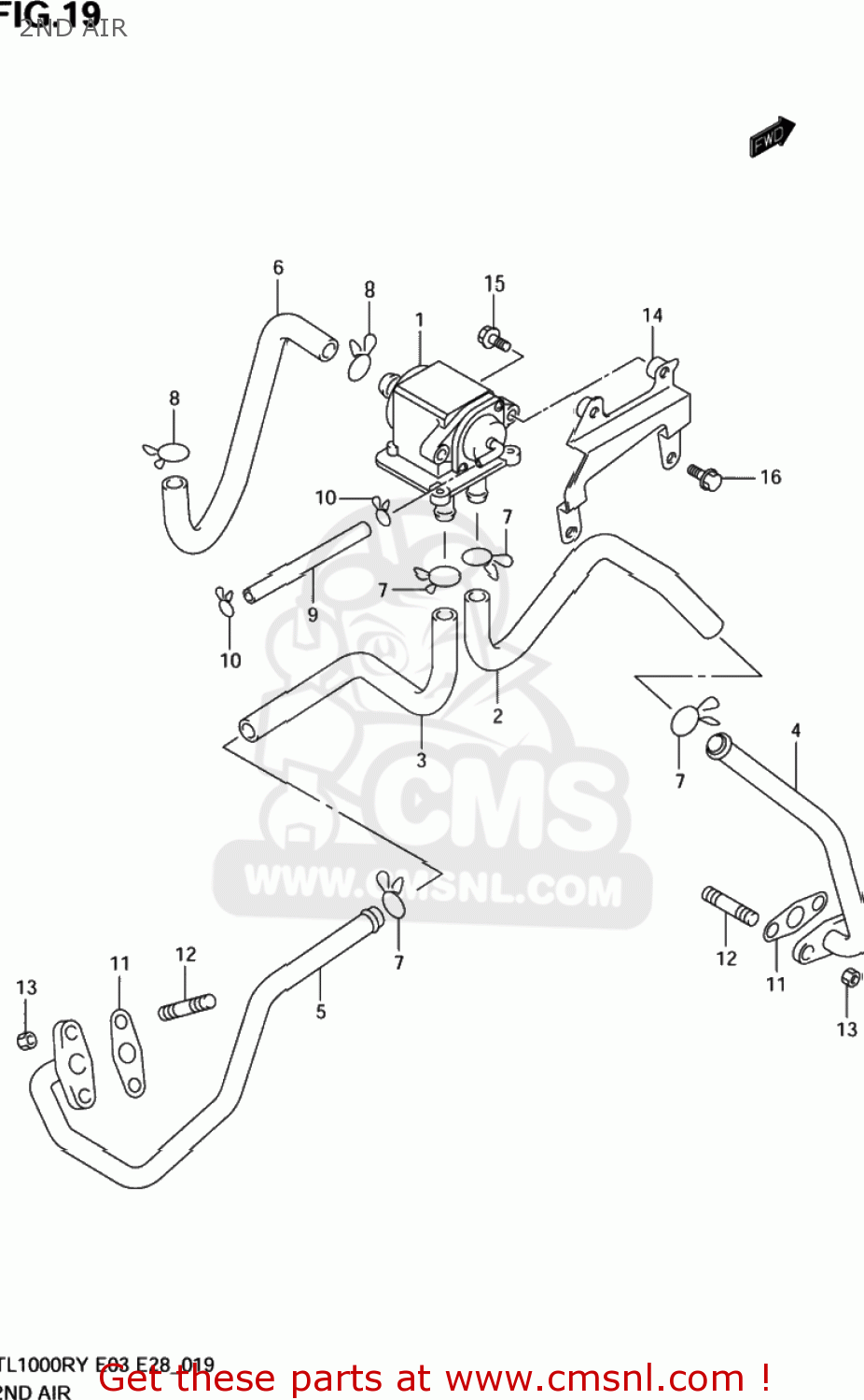

2nd air diagram TL1000R 2003 (K3) USA (E03)
2ND AIR TL1000R 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1845010F02
ref: 1
18450-10F03
VALVE ASSEMBLY,SECOND AIR
€ 202.00
2
1846102FA0
ref: 2
HOSE,2ND AIR VALVE FR
€ 16.00
3
1847102FA0
ref: 3
HOSE,2ND AIR VALVE RR
€ 15.50
4
1841002FA0
ref: 4
PIPE COMP,SECOND AIR,FRONT
€ 35.00
5
1842002FA0
ref: 5
PIPE,2ND AIR RR
€ 38.00
6
1871102FA0
ref: 6
HOSE,2ND AIR CLEANER
€ 12.00
7
0940113409
ref: 7
CLIP
€ 2.50
8
0940115101
ref: 8
CLIP
€ 2.00
9
0935240703600
ref: 9
HOSE(4X7X600)
€ 3.00
10
0940106101
ref: 10
CLIP
€ 2.50
11
1844145C01
ref: 11
GASKET,2ND AIR PIPE (NAS)
€ 6.00
12
0142106163
ref: 12
01421-0616A
STUD BOLT
€ 2.00
13
0831610063
ref: 13
08316-1006B
NUT
€ 2.50
14
1861002FA0
ref: 14
BRACKET,2ND AIR VALVE
€ 14.50
15
0713006163
ref: 15
07130-0616B
BOLT,OIL FILLE
€ 3.00
16
0155006123
ref: 16
01550-0612A
BOLT
€ 2.50
