CRANKSHAFT
TL1000R 2003 (K3) USA (E03)

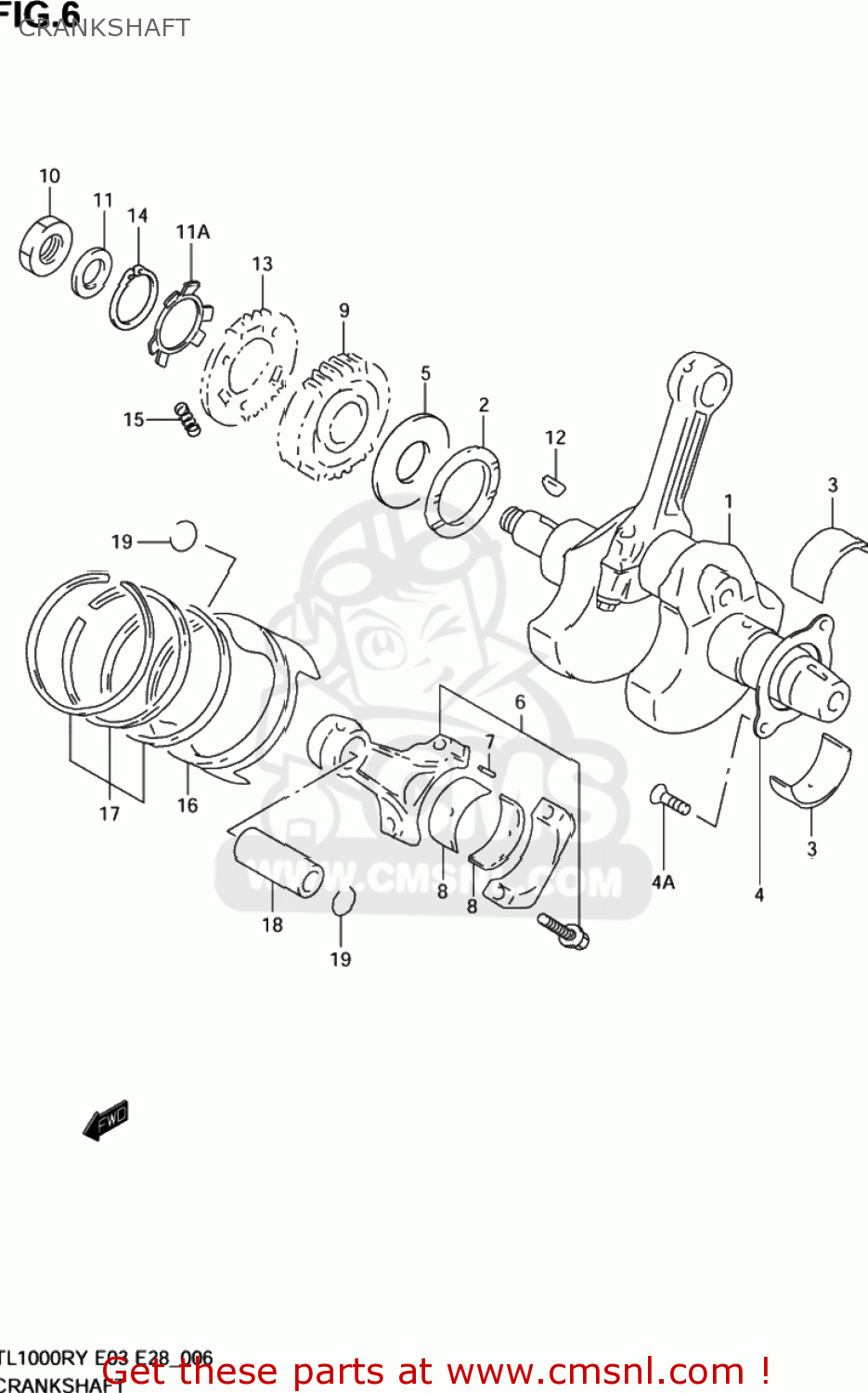

Crankshaft diagram TL1000R 2003 (K3) USA (E03)
CRANKSHAFT TL1000R 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1200002821
ref: 1
CRANKSHAFT SET
€ 1,286.50
2-1
0916048001
ref: 2-1
WASHER(48.1X64X1.94)
€ 18.50
2-10
0916048010
ref: 2-10
WASHER(48.1X64X2.16)
€ 17.00
2-2
0916048002
ref: 2-2
WASHER(48.1X64X1.96)
€ 17.00
2-3
0916048003
ref: 2-3
WASHER(48.1X64X1.99)
€ 17.00
2-4
0916048004
ref: 2-4
WASHER(48.1X64X2.01)
€ 17.00
2-5
0916048005
ref: 2-5
WASHER(48.1X64X2.04)
€ 17.00
2-6
0916048006
ref: 2-6
WASHER(48.1X64X2.06)
€ 17.00
2-7
0916048007
ref: 2-7
WASHER(48.1X64X2.09)
€ 17.00
2-8
0916048008
ref: 2-8
WASHER(48.1X64X2.11)
€ 17.00
2-9
0916048009
ref: 2-9
WASHER(48.1X64X2.14)
€ 17.00
3-1
1222902F210A0
ref: 3-1
BEARING,CRANKSHAFT
€ 23.00
3-2
1222902F210B0
ref: 3-2
BEARING,CRANKSHAFT
€ 25.50
3-3
1222902F210C0
ref: 3-3
BEARING,CRANKSHAFT
€ 25.50
4
1254102F10
ref: 4
RETAINER,CRANKSHAFT BAG,L
€ 9.00
4
1254102F10
ref: 4
RETAINER,CRANKSHAFT BAG,L
€ 9.00
4A
0912606011
ref: 4A
SCREW(6X12)
€ 2.00
5
1265202F00
ref: 5
WASHER,CRANK THRUST
€ 47.00
6
1216002F12
ref: 6
CONNECTING ROD ASSY
€ 208.00
7
1216527A50
ref: 7
PIN,CONNECTING ROD
€ 1.00
8-1
1216402F110A0
ref: 8-1
12164-02F12-0A0
BEARING,CRANK PIN
€ 23.00
8-2
1216402F110B0
ref: 8-2
12164-02F12-0B0
BEARING,CRANK PIN
€ 23.50
8-3
1216402F110C0
ref: 8-3
12164-02F12-0C0
BEARING,CRANK PIN
€ 23.50
8-4
1216402F110D0
ref: 8-4
12164-02F12-0D0
BEARING,CRANK PIN
€ 23.00
9-1
2111102F10
ref: 9-1
21111-02F11
GEAR,PRIMARY DRIVE
€ 91.50
9-2
2111102F11
ref: 9-2
GEAR,PRIMARY DRIVE
€ 91.50
10
0914022012
ref: 10
NUT
€ 7.50
11
0916422007
ref: 11
WASHER
€ 5.00
11A
2111402F00
ref: 11A
WASHER,PRI DRIVE
€ 5.50
12
0942006001
ref: 12
KEY
€ 5.50
13
2111202F00
ref: 13
GEAR,PRIMARY DRIVE SCISSORS
€ 72.50
14
0833131406
ref: 14
08331-3140A
CIRCLIP
€ 2.50
15
0944007001
ref: 15
SPRING
€ 2.00
16
1211102F110F0
ref: 16
PISTON
€ 148.50
17
1214002F42
ref: 17
RING SET,PISTON
€ 84.00
18
1215102F00
ref: 18
PIN,PISTON
€ 21.50
19
0938122002
ref: 19
CIRCLIP
€ 1.50
