CAM SHAFT / VALVE
TL1000R 2003 (K3) USA (E03)

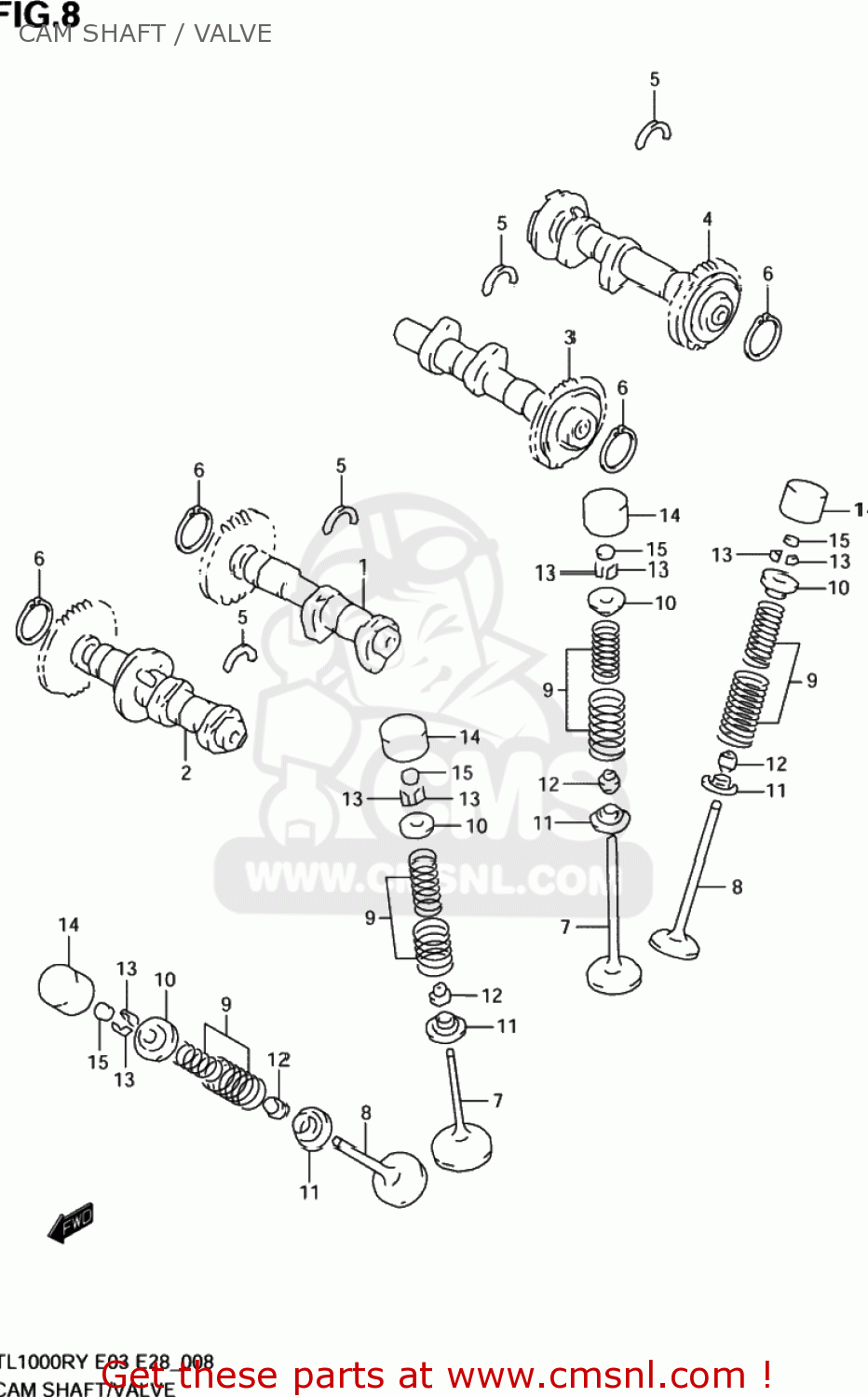

Cam shaft / valve diagram TL1000R 2003 (K3) USA (E03)
CAM SHAFT / VALVE TL1000R 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1270102F20
ref: 1-1
12701-02F60
CAMSHAFT ASSEMBLY,INTAKE,FRONT
€ 416.50
1-2
1270102F60
ref: 1-2
CAMSHAFT ASSY,INTAKE FR
€ 416.50
2-1
1270202F20
ref: 2-1
12702-02F60
CAMSHAFT ASSEMBLY,EXHAUST
€ 556.50
2-2
1270202F60
ref: 2-2
CAMSHAFT ASSY,EXHAUST FR
€ 556.50
3-1
1270302F20
ref: 3-1
12703-02F60
CAMSHAFT ASSEMBLY,INTAKE,REAR
€ 386.50
3-2
1270302F60
ref: 3-2
CAMSHAFT ASSY,INTAKE RR
€ 386.50
4-1
1270402F20
ref: 4-1
12704-02F60
CAMSHAFT ASSEMBLY,EXHAUST
€ 556.50
4-2
1270402F60
ref: 4-2
CAMSHAFT ASSY,EXHAUST RR
€ 556.50
5
0939022006
ref: 5
C RING
€ 3.00
6
0833131266
ref: 6
CIRCLIP
€ 2.50
7
1291102F00
ref: 7
VALVE,INTAKE
€ 36.00
8
1291202F00
ref: 8
VALVE,EXHAUST
€ 81.00
9
1292002F10
ref: 9
SPRING SET,VALVE
€ 18.00
10
1293102F10
ref: 10
RETAINER,VALVE SPRING
€ 13.00
11
1293338400
ref: 11
SEAT,VALVE SPRING
€ 4.50
12
0928905015
ref: 12
SEAL,OIL(5.5X11X8.2)
€ 6.50
13
1293224400
ref: 13
COTTER,VALVE
€ 2.00
14
1289102F00
ref: 14
TAPPET
€ 42.50
15-1
1289241C00230
ref: 15-1
SHIM,TAPPET(T:2.3)
€ 7.50
15-10
1289241C00275
ref: 15-10
SHIM,TAPPET(T:2.75)
€ 7.50
15-11
1289241C00280
ref: 15-11
SHIM,TAPPET(T:2.8)
€ 7.50
15-12
1289241C00285
ref: 15-12
SHIM,TAPPET(T:2.85)
€ 7.50
15-13
1289241C00290
ref: 15-13
SHIM,TAPPET(T:2.9)
€ 7.50
15-14
1289241C00295
ref: 15-14
SHIM,TAPPET(T:2.95)
€ 7.00
15-15
1289241C00300
ref: 15-15
SHIM,TAPPET(T:3.0)
€ 7.00
15-16
1289241C00305
ref: 15-16
SHIM,TAPPET(T:3.05)
€ 7.50
15-17
1289241C00310
ref: 15-17
SHIM,TAPPET(T:3.1)
€ 7.50
15-18
1289241C00315
ref: 15-18
SHIM,TAPPET(T:3.15)
€ 7.50
15-19
1289241C00320
ref: 15-19
SHIM,TAPPET(T:3.2)
€ 7.50
15-2
1289241C00235
ref: 15-2
SHIM,TAPPET(T:2.35)
€ 7.00
15-20
1289241C00325
ref: 15-20
SHIM,TAPPET(T:3.25)
€ 7.00
15-21
1289241C00330
ref: 15-21
SHIM,TAPPET(T:3.3)
€ 7.00
15-22
1289241C00335
ref: 15-22
SHIM,TAPPET(T:3.35)
€ 7.00
15-23
1289241C00340
ref: 15-23
SHIM,TAPPET(T:3.4)
€ 7.00
15-24
1289241C00345
ref: 15-24
SHIM,TAPPET(T:3.45)
€ 7.00
15-25
1289241C00350
ref: 15-25
SHIM,TAPPET(T:3.5)
€ 7.00
15-3
1289241C00240
ref: 15-3
SHIM,TAPPET(T:2.4)
€ 7.00
15-4
1289241C00245
ref: 15-4
SHIM,TAPPET(T:2.45)
€ 7.00
15-5
1289241C00250
ref: 15-5
SHIM,TAPPET(T:2.5)
€ 7.00
15-6
1289241C00255
ref: 15-6
SHIM,TAPPET(T:2.55)
€ 7.50
15-7
1289241C00260
ref: 15-7
SHIM,TAPPET(T:2.6)
€ 8.00
15-8
1289241C00265
ref: 15-8
SHIM,TAPPET(T:2.65)
€ 7.00
15-9
1289241C00270
ref: 15-9
SHIM,TAPPET(T:2.7)
€ 8.00
16
1280041810
ref: 16
SHIM SET,TAPPET
€ 793.00
16
1280041810
ref: 16
SHIM SET,TAPPET
€ 793.00
16
1280041810
ref: 16
SHIM SET,TAPPET
€ 793.00
17
9900069471
ref: 17
CASE,TAPPET SHIM
€ 103.50
