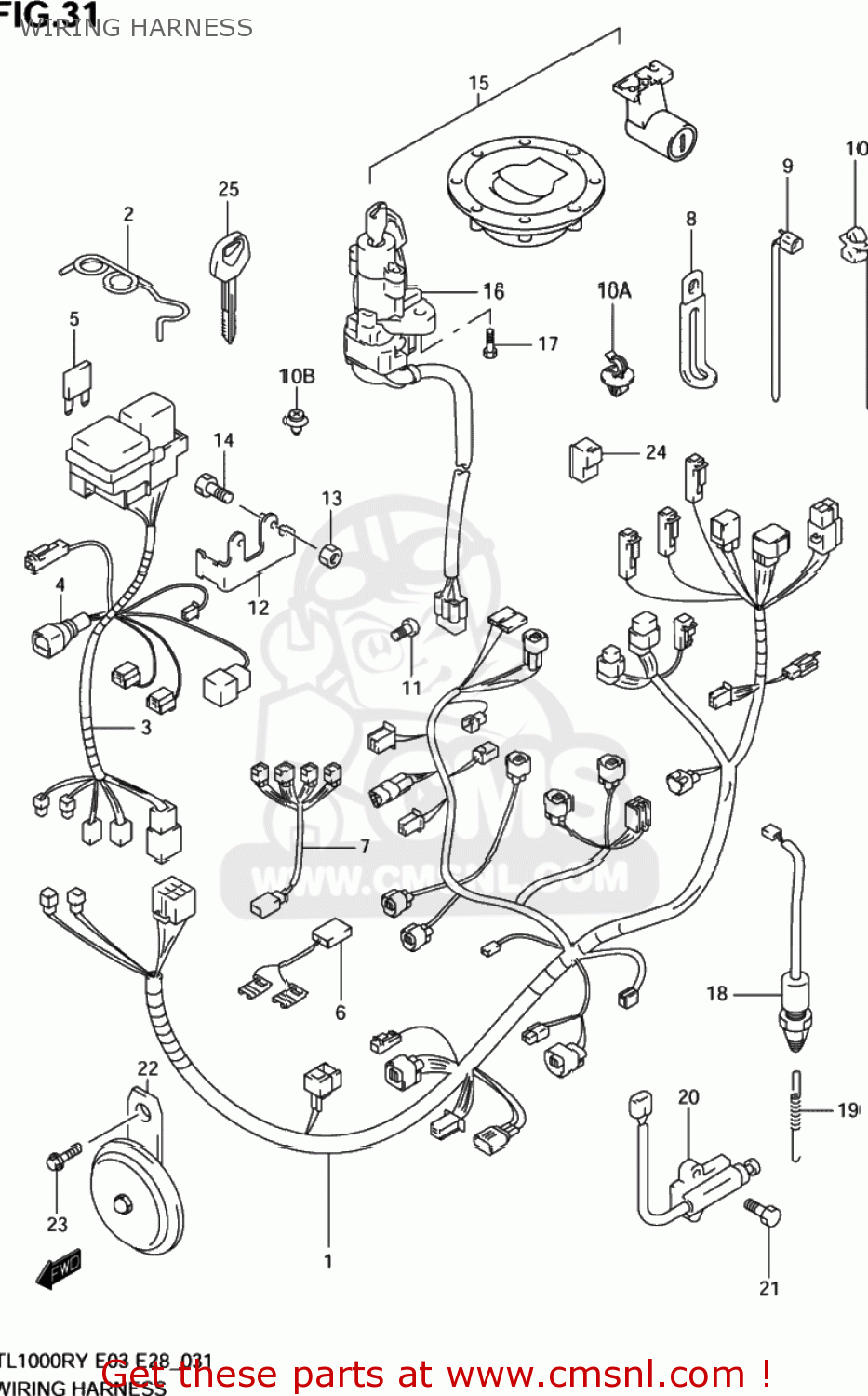

WIRING HARNESS

ref

part #

description

quantity

1

3661002F60
ref: 1

HARNESS,WIRING NO.1

€ 1,122.50

2

3661902F00
ref: 2

GUIDE,WIRING HARNESS

€ 7.00

3

3662002F60
ref: 3

HARNESS,WIRING NO.2

€ 228.50

4

3661833E00
ref: 4

COVER,SPEEDOMETER COUPLER

€ 5.50

5-1

0948110501
ref: 5-1

FUSE(10A)

€ 3.00

5-2

0948115501
ref: 5-2

FUSE(15A)

€ 1.00

6

3685202F00
ref: 6

WIRE,IGNITION COIL LEAD

€ 12.00

7

3685402F60
ref: 7

WIRE,INJECTION LEAD

€ 49.50

8-1

0940406432
ref: 8-1

CLAMP(L:65)

€ 2.50

8-2

0940406433
ref: 8-2

CLAMP(L:80)

€ 3.00

9-1

0940714403
ref: 9-1

CLAMP(L:125)

€ 2.50

9-2

0940718402
ref: 9-2

CLAMP(L:165)

€ 2.50

9-3

0940725401
ref: 9-3

CLAMP(L:235)

€ 4.00

10A

0940307325
ref: 10A

CLAMP

€ 2.50

10B

09409073055PK
ref: 10B

CLIP(BLACK)

€ 1.50

10-1

0940711402
ref: 10-1

CLAMP(L:90)

€ 2.50

10-2

0940714408
ref: 10-2
09407-17402

CLAMP(L:120)

€ 5.00

10-3

0940717401
ref: 10-3
09407-17402

CLAMP

€ 5.00

11

0155006123
ref: 11
01550-0612A

BOLT

€ 2.50

12

3674433E00
ref: 12

BRACKET,FUSE BOX

€ 9.50

13

9461927A00
ref: 13
09159-05048

NUT,COWLING SCREEN

€ 6.50

14

0214205123
ref: 14
02142-0512A

SCREW 5X12

€ 1.50

15-1

3710333870
ref: 15-1

LOCK SET

€ 359.00

15-2

3710333880
ref: 15-2

LOCK SET

€ 266.00

16

3710033E20
ref: 16

LOCK ASSY,STEERING

€ 223.50

17

0913908016
ref: 17

BOLT(8X20)

€ 3.50

18

3774031D00
ref: 18

SWITCH ASSY,STOP LAMP

€ 20.50

19

0944306012
ref: 19

SPRING

€ 3.00

20

3784026X50
ref: 20

SWITCH ASSY,SIDE STAND WARNING

€ 100.50

21

0155006163
ref: 21
01550-0616A

BOLT

€ 2.50

22

3850002F60
ref: 22

HORN ASSY

€ 70.00

23

0155008123
ref: 23
01550-0812A

BOLT

€ 3.50

24

3874026E00
ref: 24

RELAY ASSY

€ 32.50

25

3714633E00
ref: 25

KEY,BLANK

€ 13.00
