REAR FENDER
TL1000R 2003 (K3) USA (E03)

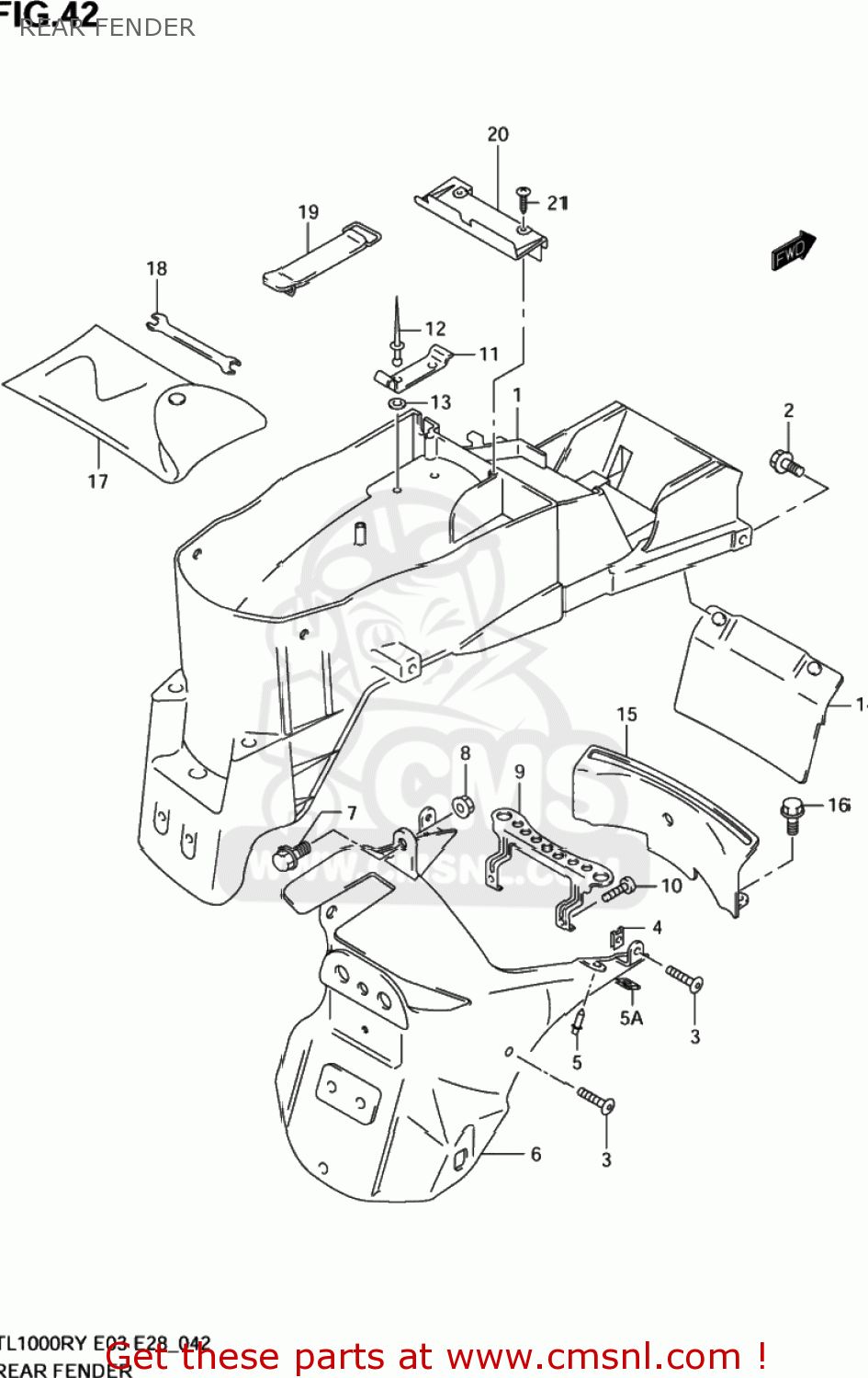

Rear fender diagram TL1000R 2003 (K3) USA (E03)
REAR FENDER TL1000R 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311102FA0
ref: 1-1
63111-02FA1
FENDER,REAR,FRONT
€ 117.50
1-2
6311102FA1
ref: 1-2
FENDER,RR FR
€ 117.50
1-3
6311102FB0
ref: 1-3
63111-02FB1
FENDER,REAR,FRONT
€ 1.50
1-4
6311102FB1
ref: 1-4
FENDER,RR FR
€ 1.50
2-1
0911606144
ref: 2-1
09116-06165
BOLT 6X16
€ 2.50
2-2
0911606165
ref: 2-2
BOLT(6X16)
€ 2.50
3
0913905021
ref: 3
SCREW(5X12)
€ 2.00
4
0914805021
ref: 4
NUT
€ 1.50
5A
0914805004
ref: 5A
09148-05013
NUT
€ 1.50
5-1
0940907313
ref: 5-1
CLIP
€ 3.50
5-2
0324115123
ref: 5-2
03241-1512B
SCREW
€ 2.50
6
6311202FA0
ref: 6
FENDER,RR RR
€ 100.50
7
0911106066
ref: 7
BOLT(6X16)
€ 2.50
8
0831610063
ref: 8
08316-1006B
NUT
€ 2.50
9
6325602FA0
ref: 9
63256-02FAV
BRACKET,REAR COMBINATION LAMP
€ 12.50
10
0913205041
ref: 10
SCREW(5X16)
€ 2.50
11
6346602F00
ref: 11
HOLDER,TOOL
€ 7.50
12
0922904020
ref: 12
RIVET
€ 2.50
13
0832201043
ref: 13
08322-0104A
WASHER
€ 5.00
14
6341102FB0
ref: 14
63411-02FA0
MUD GUARD,REAR FENDER
€ 13.50
15
6342102FA1
ref: 15
MUDGUARD,RR FENDER FR LWR
€ 14.50
16
0911106066
ref: 16
BOLT(6X16)
€ 2.50
17
0980021039
ref: 17
TOOL ASSY
€ 73.00
18
0981300027
ref: 18
OPEN SPANNER(8X10)
€ 3.00
19
4743502F01
ref: 19
BAND,TOOL
€ 7.00
20
6317102FA0
ref: 20
COVER,RR FENDER
€ 21.00
21
0354105163
ref: 21
03541-0516A
SCREW
€ 1.50
