CRANKCASE
TL1000R 2003 (K3) USA (E03)

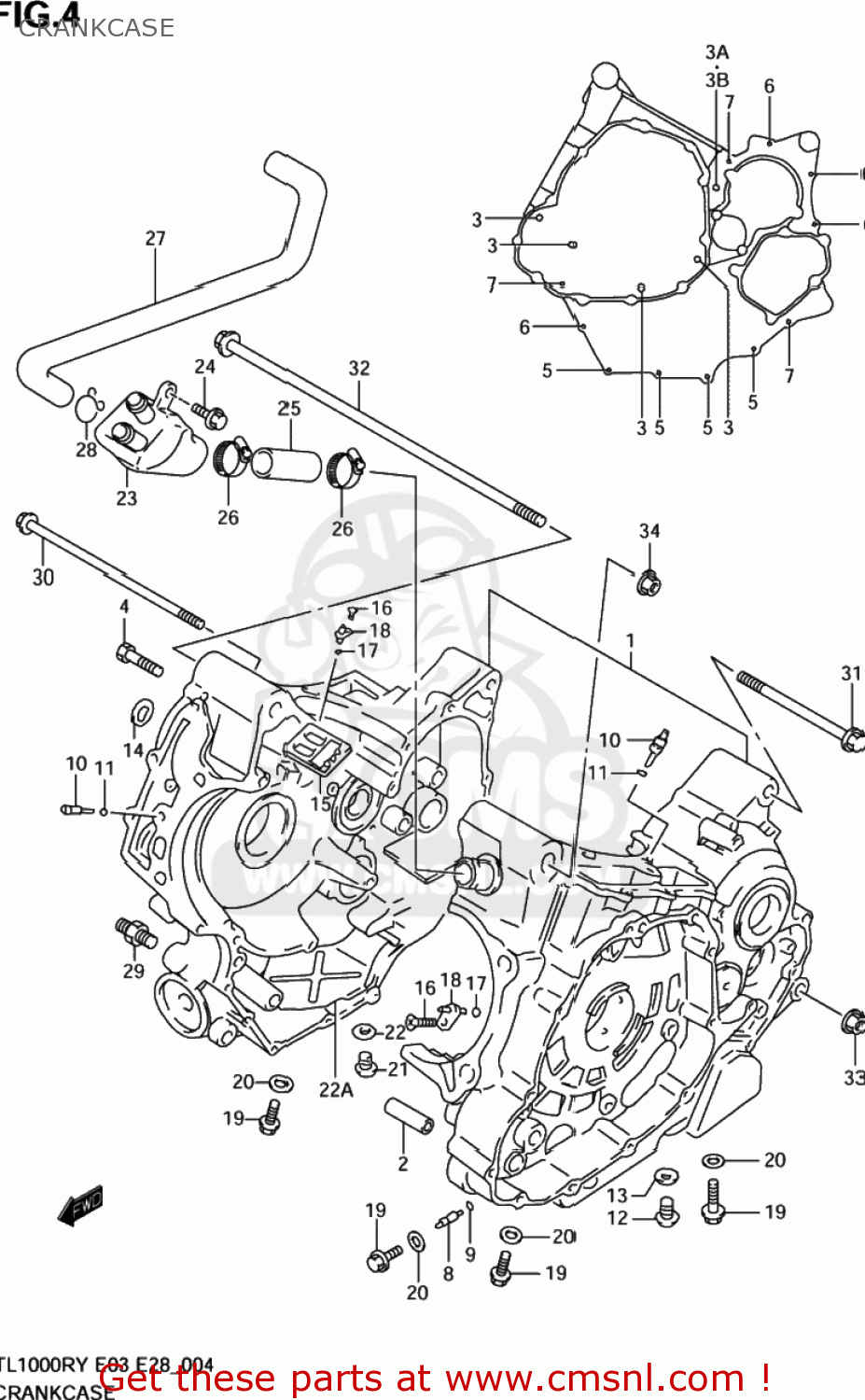

Crankcase diagram TL1000R 2003 (K3) USA (E03)
CRANKCASE TL1000R 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130502873
ref: 1
CRANKCASE SET
€ 1,699.50
2
1131933E00
ref: 2
PIN,CRANKCASE
€ 4.00
3
0712008903
ref: 3
07120-0890B
BOLT
€ 4.50
3A
0910608136
ref: 3A
BOLT(8X125)
€ 6.00
3B
0832201083
ref: 3B
08322-0108A
WASHER
€ 1.50
4
0910608142
ref: 4
BOLT(8X110)
€ 5.50
5
0155006353
ref: 5
01550-0635A
BOLT
€ 2.50
6
0155006703
ref: 6
01550-0670B
BOLT
€ 2.50
7
0155006853
ref: 7
01550-0685B
BOLT
€ 2.50
8
0949328010
ref: 8
JET,AIR(14)
€ 10.50
9
0928004004
ref: 9
O RING(D:1.2,ID:4)
€ 2.00
10
0949320014
ref: 10
JET,OIL GALLERY
€ 8.00
11
0928004004
ref: 11
O RING(D:1.2,ID:4)
€ 2.00
12-1
0924714001
ref: 12-1
09247-14002
PLUG
€ 5.00
12-2
0924714002
ref: 12-2
PLUG(MAGNETO)
€ 5.00
13
0916814002
ref: 13
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
14
0928012009
ref: 14
O RING(D:1.9,ID:12.6)
€ 2.50
15
1315002F00
ref: 15
VALVE ASSY,BREATHER
€ 40.50
16
0912506086
ref: 16
SCREW(6X12)
€ 2.00
17
0928004004
ref: 17
O RING(D:1.2,ID:4)
€ 2.00
18
1139002F00
ref: 18
JET,PISTON COOLING
€ 21.50
19
0155008123
ref: 19
01550-0812A
BOLT
€ 3.50
20
0916808015
ref: 20
GASKET(8.2X14X1).6 (NAS)
€ 2.50
21
0924816012
ref: 21
PLUG,16X8
€ 4.50
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
€ 2.00
22A
1132402F10
ref: 22A
SEPARATOR,OIL
€ 7.00
23-1
1133002F01
ref: 23-1
TANK,OIL RETURN
€ 72.00
23-2
1133002F10
ref: 23-2
TANK,OIL RETURN
€ 64.00
24
0155006163
ref: 24
01550-0616A
BOLT
€ 2.50
25-1
1133302F00
ref: 25-1
HOSE,OIL RETURN
€ 7.50
25-2
1133302F10
ref: 25-2
11333-02F00
HOSE, OIL RETU
€ 7.50
26
0940228511
ref: 26
CLAMP
€ 8.50
27
1133202FA0
ref: 27
HOSE,BREATHER
€ 18.00
28-1
0940115101
ref: 28-1
CLIP
€ 2.00
28-2
0940115101
ref: 28-2
CLIP
€ 2.00
28-3
0940115404
ref: 28-3
CLIP
€ 2.50
29-1
3782033D00
ref: 29-1
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
29-2
3782033D10
ref: 29-2
SWITCH ASSY,OIL PRESSURE
€ 29.00
30
0910310145
ref: 30
BOLT(10X205)
€ 13.00
31
0910310146
ref: 31
BOLT(10X155)
€ 8.50
32
0910312052
ref: 32
BOLT(12X200)
€ 11.50
33
0915910058
ref: 33
09159-10115
NUT
€ 4.00
34
0831931123
ref: 34
08319-3112B
NUT
€ 3.00
