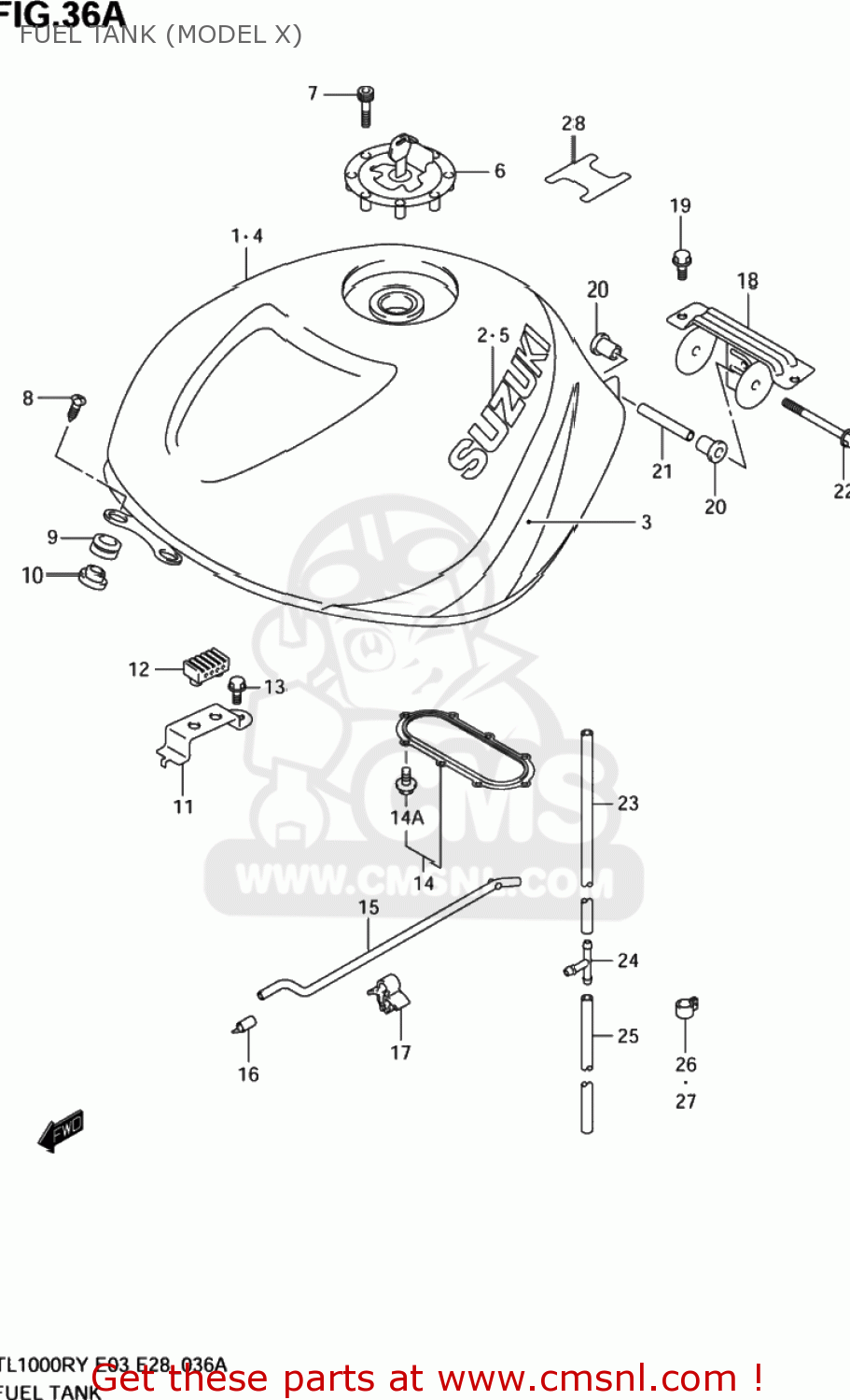

FUEL TANK (MODEL X)

ref

part #

description

quantity

1-1

4410002FE0L99
ref: 1-1

TANK ASSY,FUEL

€ 498.50

1-2

4410002FG0L99
ref: 1-2

TANK ASSEMBLY,FUEL

€ 0.00

2

6811112C000JW
ref: 2
68111-12C30-0JW

EMBLEM,FUEL TANK

€ 21.00

3

6811002FA01LE
ref: 3
68110-02FA1-1LE

TAPE SET,FUEL TANK (BLUE)

€ 38.50

4-1

4410002FC0163
ref: 4-1

TANK ASSY,FUEL(YELLOW)

€ 438.00

4-2

4410002FC033J
ref: 4-2

TANK ASSEMBLY,FUEL

€ 438.00

4-3

4410002FD0163
ref: 4-3

TANK ASSY,FUEL(YELLOW)

€ 0.00

4-4

4410002FD033J
ref: 4-4

TANK ASSEMBLY,FUEL

€ 0.00

5-1

6811112C0020G
ref: 5-1
68111-12C30-20G

EMBLEM,FUEL TANK

€ 19.50

5-2

6811112C00Y2D
ref: 5-2
68111-12C30-Y2D

EMBLEM,FUEL TANK

€ 18.00

6-1

4420033870
ref: 6-1

CAP SET,FUEL TANK

€ 253.50

6-2

4420033890
ref: 6-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

7

0910605017
ref: 7

BOLT(5X20)

€ 3.00

8

0913906029
ref: 8

SCREW(6X25)

€ 5.00

9

0932009009
ref: 9

CUSHION

€ 5.00

10

0916906062
ref: 10

WASHER

€ 3.00

11

4453102FA0
ref: 11

BRACKET,FUEL TANK SIDE CUSHION

€ 8.50

12

4514931300
ref: 12

CUSHION,SEAT(40X20X15)

€ 2.00

13

0155006163
ref: 13
01550-0616A

BOLT

€ 2.50

14

4459002840
ref: 14

PACKING SET,FUEL PUMP (NAS)

€ 51.50

14A

1521102F00
ref: 14A
09103-05017

BOLT,FUEL PUMP

€ 4.00

15

4457433E01
ref: 15

STAY,FUEL TANK

€ 13.50

16

0925105006
ref: 16

CAP,OD:11

€ 5.50

17

0940305310
ref: 17

CLAMP

€ 4.50

18

4455002FA1
ref: 18

BRACKET,FUEL TANK RR

€ 27.00

19

0155008163
ref: 19
01550-0816A

BOLT

€ 3.00

20

4454102F00
ref: 20

CUSHION,FUEL TANK RR

€ 27.50

21

4456133E10
ref: 21

SPACER,FUEL TANK RR

€ 19.00

22

0155008953
ref: 22
01550-0895A

BOLT

€ 3.50

23

4442302F01
ref: 23

HOSE,FUEL TANK DRAIN

€ 12.00

24

0936708005
ref: 24

3 WAY

€ 4.00

25

0935270103600
ref: 25

HOSE(7X10.2X600)

€ 8.00

26

0940314408
ref: 26

CLAMP

€ 6.00

27

0940324302
ref: 27

CLAMP

€ 0.00

28

4426102F00
ref: 28

LABEL,FUEL TANK INNER

€ 4.00

all assemblies
