MUFFLER
TL1000R 2003 (K3) USA (E03)

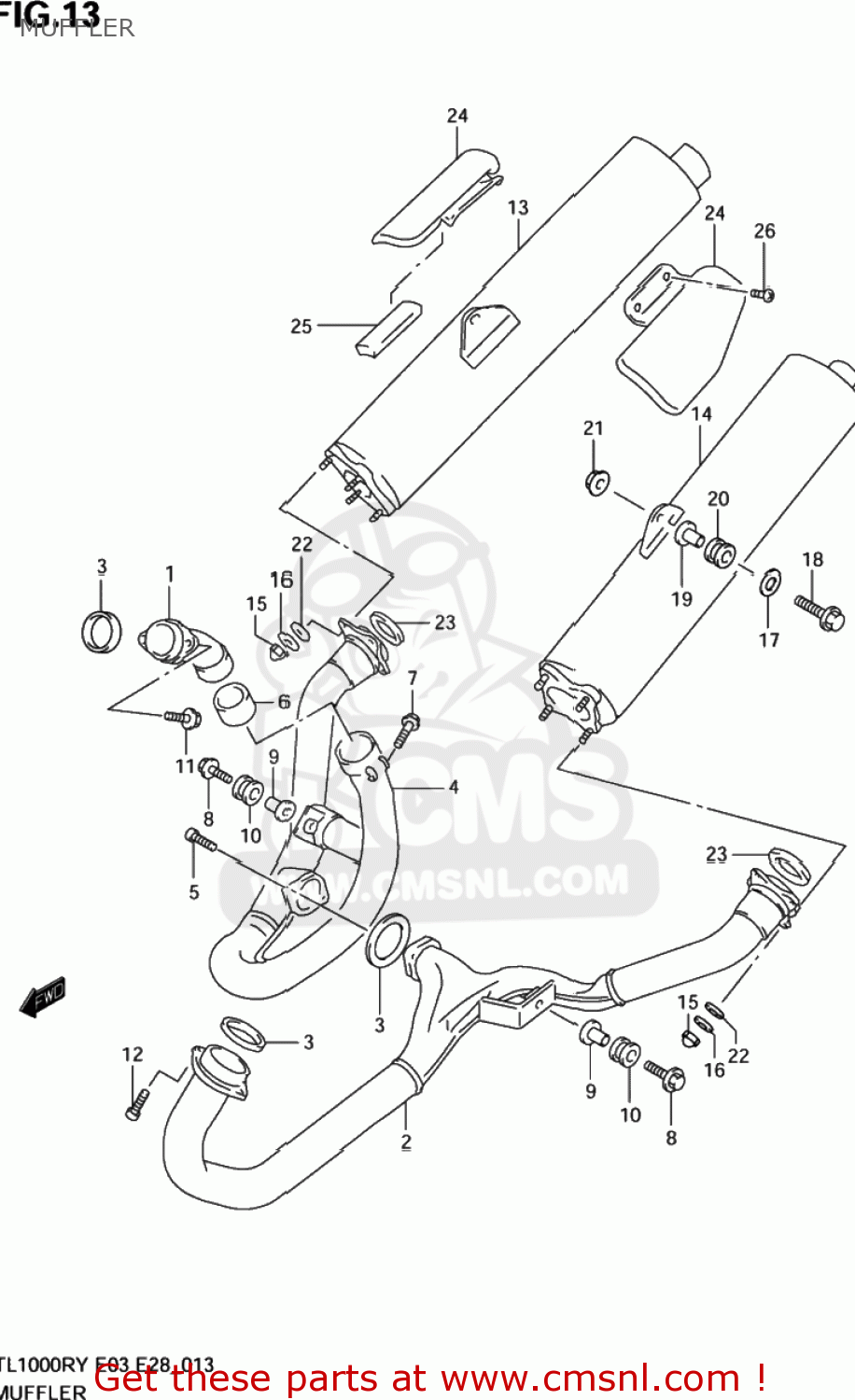

Muffler diagram TL1000R 2003 (K3) USA (E03)
MUFFLER TL1000R 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415002F00
ref: 1
PIPE,EXHAUST,R
€ 99.50
2
1416002FA0
ref: 2
PIPE,EXHAUST,L
€ 531.50
3
1418131D00
ref: 3
GASKET,EXHAUST PIPE (NAS)
€ 9.50
4
1421002FA0
ref: 4
PIPE,EXHAUST JOINT,R
€ 543.50
5
1411873G01
ref: 5
BOLT,EXH MANF
€ 7.50
6
1477102F00
ref: 6
CONNECTOR,EXHAUST,R
€ 19.50
7
0155008403
ref: 7
01550-0840A
BOLT
€ 3.50
8
0911808152
ref: 8
09118-08152-A05
BOLT 8X45
€ 5.00
9
0918008152
ref: 9
SPACER(8.6X12X24.2)
€ 6.00
10
0932012048
ref: 10
CUSHION
€ 5.00
11
0155008257
ref: 11
BOLT
€ 2.50
12
0910608104
ref: 12
09106-08165
BOLT
€ 5.00
13
1431002FA0H01
ref: 13
BODY,MUFFLER,R
€ 833.00
14
1434002FA0H01
ref: 14
BODY,MUFFLER,L
€ 833.00
15-1
0915908101
ref: 15-1
09159-08116
NUT
€ 7.50
15-2
0915908115
ref: 15-2
09159-08116
NUT,MUFFLER JOINT
€ 7.50
16
0916008059
ref: 16
WASHER(8.5X18X1.6)
€ 2.00
17
0916008140
ref: 17
09160-08146
WASHER (8.5X33X1.6)
€ 3.00
18
0155008457
ref: 18
BOLT
€ 4.00
19
0918008156
ref: 19
SPACER(8.6X12X27.1)
€ 6.50
20
0932012049
ref: 20
CUSHION
€ 9.00
21
0836125088
ref: 21
08361-2508A
NUT
€ 2.50
22
0928008012
ref: 22
O RING(D:1.9,ID:7.8)
€ 4.00
23
1418102F00
ref: 23
GASKET,MUFFLER JOINT (NAS)
€ 7.00
24-1
1478002FA0
ref: 24-1
PROTECTOR,MUFFLER,R
€ 91.00
24-2
1479002FA0
ref: 24-2
PROTECTOR,MUFFLER,L
€ 94.50
25
1478502FA0
ref: 25
CUSHION,MUFFLER COVERER
€ 9.00
26
0913906091
ref: 26
SCREW(6X12)
€ 4.00
