CHAIN CASE
TS250 1976 (A) USA (E03)

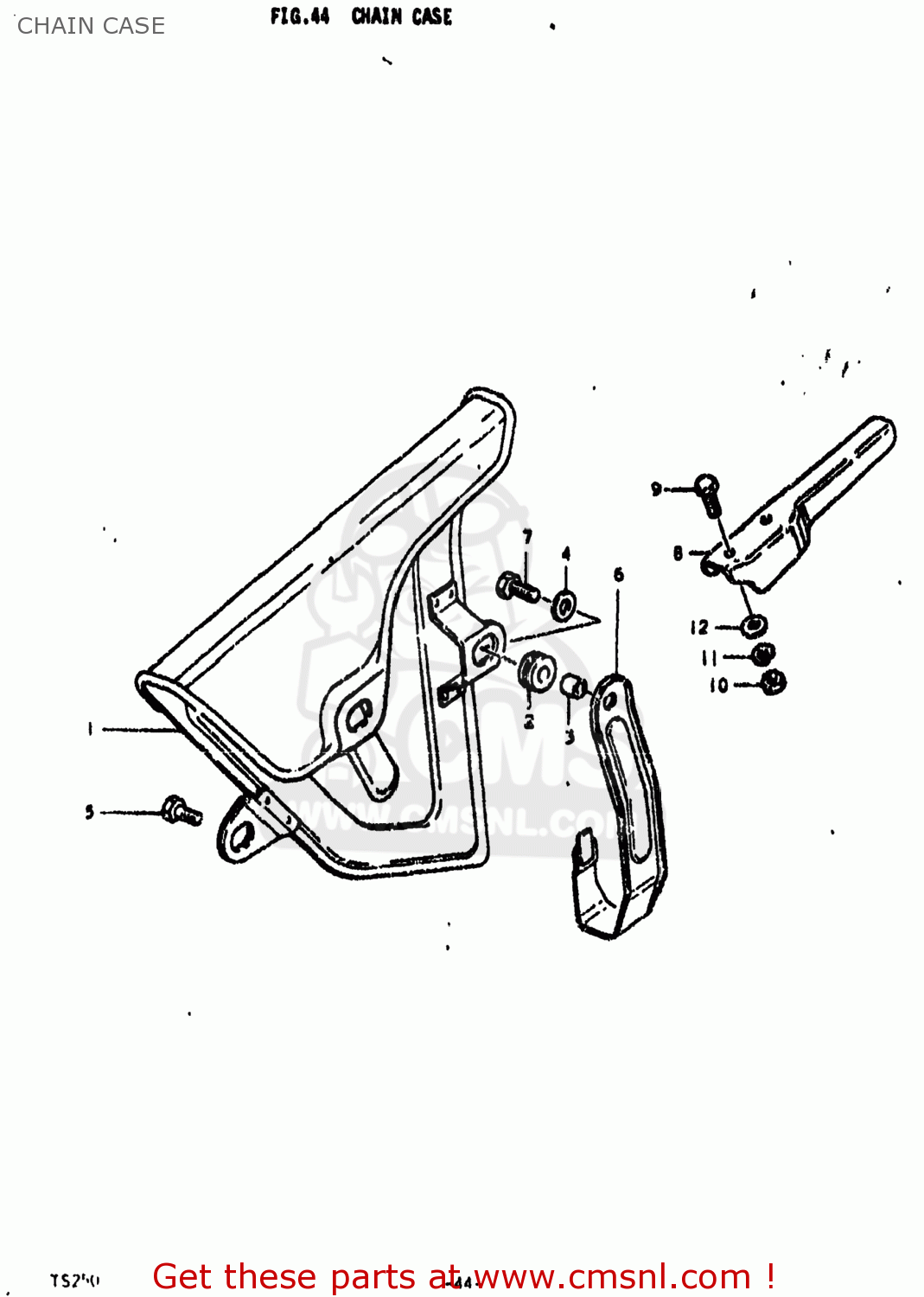

Chain case diagram TS250 1976 (A) USA (E03)
CHAIN CASE TS250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6131016400
ref: 1-1
CASE,CHAIN
€ 50.50
1-2
6131030600019
ref: 1-2
61310-30600-126
CASE,CHAIN
€ 51.00
2
0932008007
ref: 2
09320-08021
CUSHION
€ 4.00
3
0918007005
ref: 3
09180-06259
SPACER (7X9X7)
€ 2.50
4
0916006027
ref: 4
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
5
0111206128
ref: 5
01500-06127
BOLT
€ 2.00
6
6134016400
ref: 6
GUIDE,DRIVE CHAIN
€ 6.00
7
0912806008
ref: 7
SCREW(6X14)
€ 2.00
8
6133130000
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.50
9
0111206108
ref: 9
01500-06107
BOLT
€ 2.00
10
0831111068
ref: 10
08310-00067
NUT
€ 2.50
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
0832221068
ref: 12
08322-01067
WASHER
€ 2.00
