ELECTRICAL (1)
TS250 1976 (A) USA (E03)

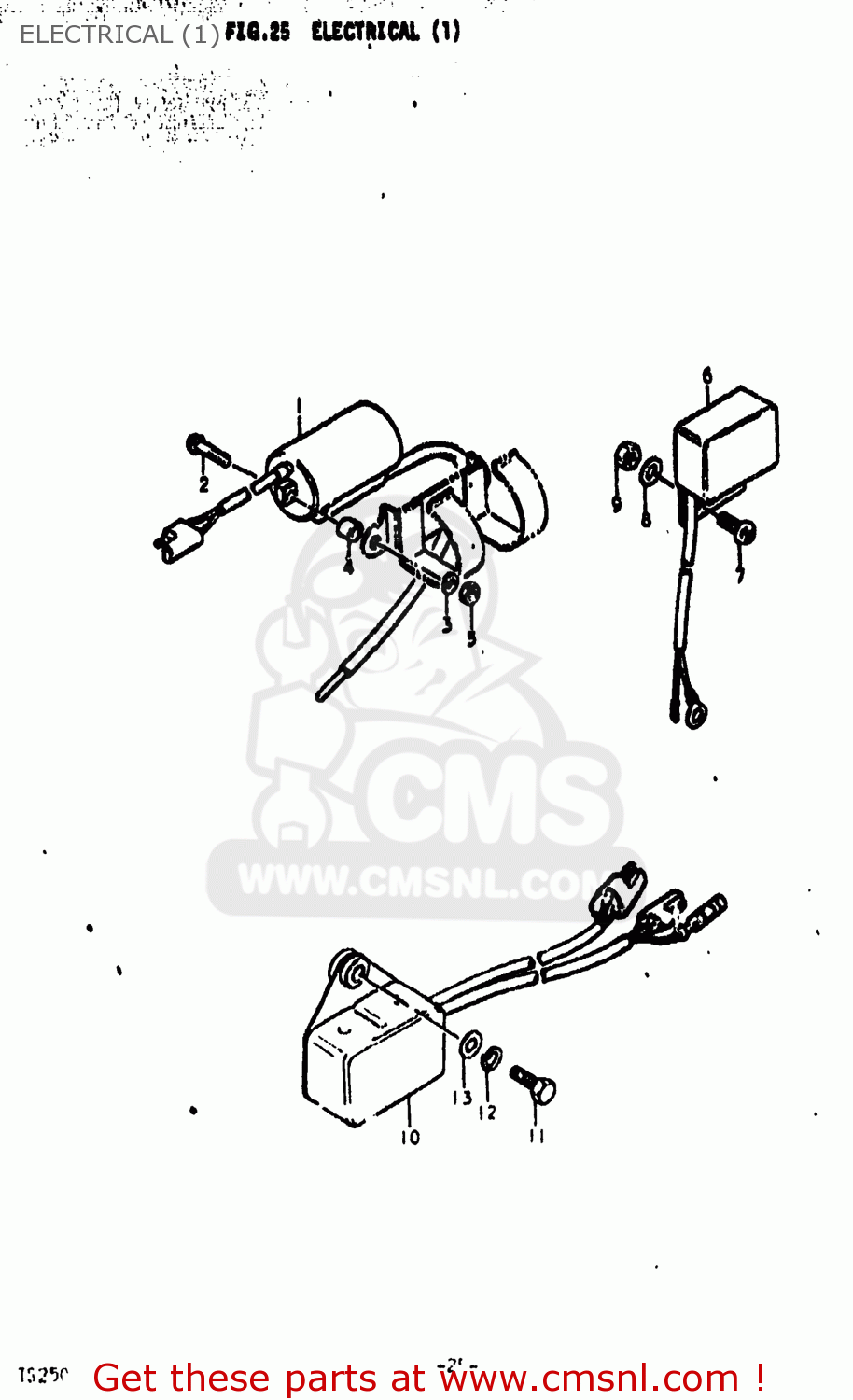

Electrical (1) diagram TS250 1976 (A) USA (E03)
ELECTRICAL (1) TS250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341030020
ref: 1
33410-14120
COIL ASSEMBLY,IGNITION
€ 100.00
2-1
0211205308
ref: 2-1
02112-0530A
SCREW
€ 1.50
2-2
0211205208
ref: 2-2
02112-05207
SCREW 5X20
€ 3.00
3
0832121058
ref: 3
08321-0105A
LOCK WASHER
€ 2.00
4
0918005008
ref: 4
SPACER
€ 1.50
5
0831111058
ref: 5
08310-00057
NUT
€ 2.50
6
3250025600
ref: 6
REGULATOR ASSEMBLY
€ 176.50
7
0211206128
ref: 7
02112-06127
SCREW 6X12
€ 2.00
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0831111068
ref: 9
08310-00067
NUT
€ 2.50
10
3190030020
ref: 10
CDI UNIT ASSY
€ 410.50
11
0912806006
ref: 11
09128-06057
BOLT(6X20)
€ 2.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
