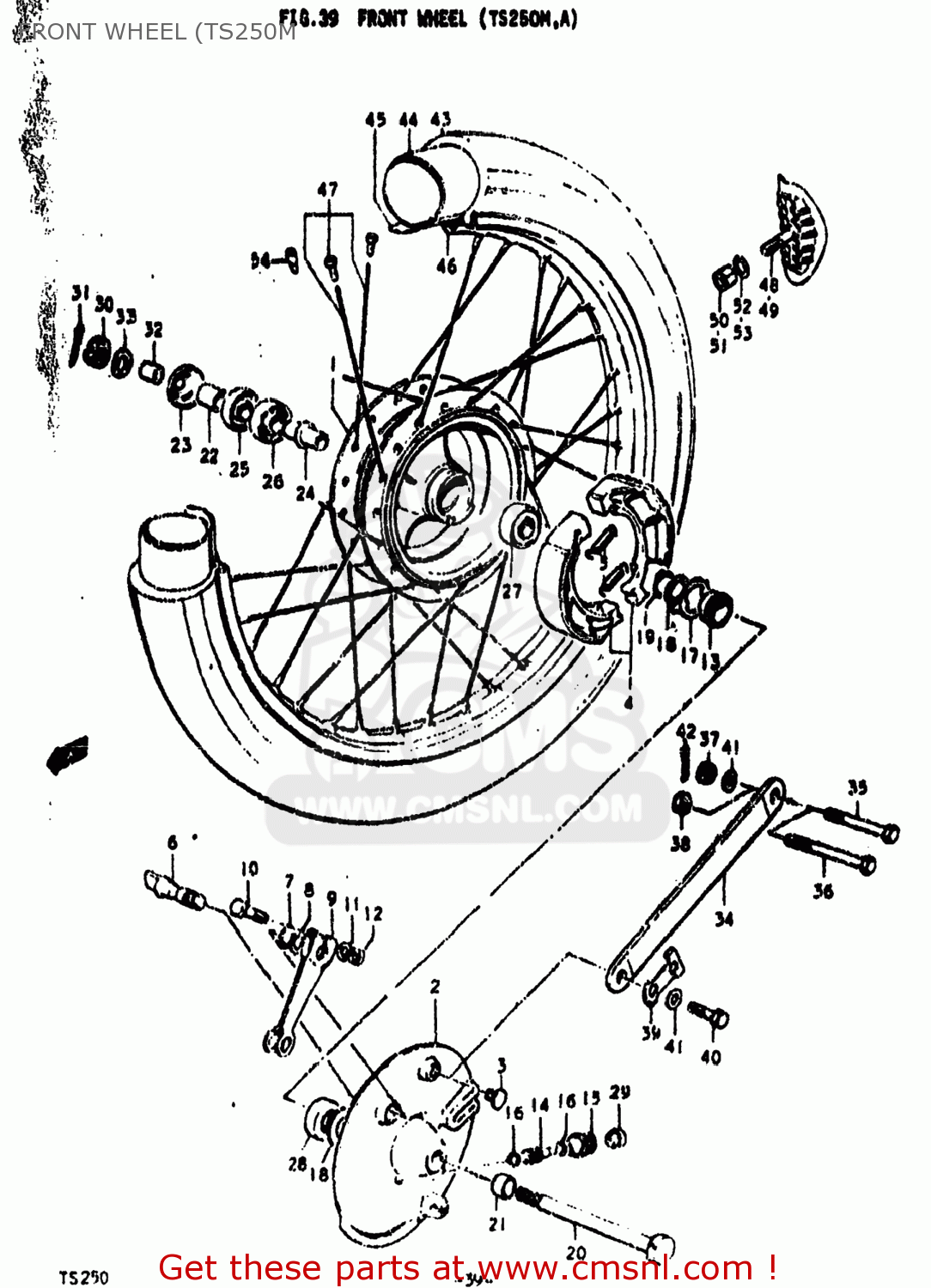

FRONT WHEEL (TS250M

ref

part #

description

quantity

1

5411030000
ref: 1

HUB,FRONT

€ 166.00

2

5420030830
ref: 2
54210-30003

PANEL,FRONT HUB

€ 52.50

3

0925008005
ref: 3

CAP(OD:20)

€ 2.50

4

5441008002
ref: 4
64400-02830

SHOE,BRAKE

€ 35.00

5

5542030000
ref: 5

SPRING,BRAKE SHOE

€ 3.50

6

5444008001
ref: 6
54440-08004

CAM,FRONT BRAKE

€ 19.00

7

0928015001
ref: 7
09280-15003

O-RING,BOSS

€ 2.00

8

0916015001
ref: 8
09160-15048

WASHER (15X24X1.6)

€ 2.50

9

5445130000
ref: 9
54451-30001

LEVER,FRONT BRAKE CAM

€ 28.00

10

0111206408
ref: 10
01500-0640B

BOLT

€ 2.00

11

0832221068
ref: 11
08322-01067

WASHER

€ 2.00

12

0831111068
ref: 12
08310-00067

NUT

€ 2.50

13

5461130301
ref: 13
54611-30302

GEAR,SPEEDOMETER

€ 24.50

14

5462130300
ref: 14

PINION,SPEEDOMETER

€ 13.00

15

5463211020
ref: 15
54632-49200

BUSHING,SPEEDOMETER PINION

€ 6.50

16

0916005001
ref: 16
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

17

5466011030
ref: 17
54660-11031

DRIVER,SPEEDOMETER GEAR

€ 31.00

18

0916022001
ref: 18

WASHER(22.5X27X1)

€ 2.00

19

0833111229
ref: 19
08331-3122A

CIRCLIP

€ 2.00

20

5471133002
ref: 20
54711-3300V

AXLE,FRONT

€ 41.00

21

0918015037
ref: 21

SPACER

€ 2.50

22

0918015018
ref: 22

SPACER

€ 6.00

23

5489233000
ref: 23

DUST SEAL,FRONT HUB DRUM

€ 4.00

24

5473008100
ref: 24

SPACER,FRONT HUB BEARING

€ 7.50

25

0928422001
ref: 25

OIL SEAL

€ 4.00

26

0811360020
ref: 26

BEARING

€ 14.00

27

0814362020
ref: 27
08143-62027

BEARING

€ 12.50

28

0928526001
ref: 28
09285-26003

OIL SEAL

€ 22.00

29

0928906001
ref: 29

SEAL,OIL(6X10X3)

€ 4.00

30

0831431128
ref: 30
08314-3112A

NUT 12MM

€ 2.00

31

0411130308
ref: 31
04111-3030A

COTTER PIN

€ 1.50

32

0918015035
ref: 32

SPACER

€ 3.00

33

0832221128
ref: 33
08322-01127

WASHER

€ 2.00

34

5431130700
ref: 34

NO PRODUCT DESCRIPTION AVAILABLE

€ 6.00

35

0910108008
ref: 35

BOLT

€ 1.50

36

0910008086
ref: 36

BOLT

€ 1.50

37

0831441088
ref: 37
08314-4008B

NUT 8MM

€ 2.50

38

0831911088
ref: 38
08319-2108A

NUT

€ 1.50

39

5331216501
ref: 39

MUD FLAP,FRONT FENDER,LEFT

€ 3.50

40

0910008013
ref: 40

BOLT(8X19.5)

€ 0.00

41

0832211088
ref: 41
08322-01087

WASHER

€ 2.00

41

0832211088
ref: 41
08322-01087

WASHER

€ 2.00

42

0411120158
ref: 42
04111-2015A

PIN

€ 1.50

43

5510030600
ref: 43

TIRE,FRONT

€ 49.00

44

5520016510
ref: 44

TUBE

€ 32.50

45

5526116510
ref: 45
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

46-1

5531130700
ref: 46-1

RIM,FRONT WHEEL

€ 83.50

46-2

5531130600
ref: 46-2

RIM,FRONT WHEEL

€ 141.00

46-3

5531130610
ref: 46-3
55311-30600

RIM,FRONT WHEEL

€ 141.00

46-3

5531130610
ref: 46-3
55311-30600

RIM,FRONT WHEEL

€ 141.00

47-1

5530030809
ref: 47-1

SPOKE SET,FRONT

€ 47.00

47-2

5530030850
ref: 47-2

SPOKE SET,FRONT

€ 0.00

48

6527030000
ref: 48
65270-43D00

STOPPER,BEAD

€ 30.50

49

6527028600
ref: 49

STOPPER,BEAD

€ 26.50

50

0915908016
ref: 50

NUT

€ 2.00

51

0831211088
ref: 51
08310-00087

NUT

€ 2.00

52

0832221086
ref: 52
08322-0108A

WASHER

€ 1.50

53

0832211088
ref: 53
08322-01087

WASHER

€ 2.00

54

5541130000
ref: 54

BALANCER,WHEEL (50G)

€ 4.50

54

5541130000
ref: 54

BALANCER,WHEEL (50G)

€ 4.50
