SPEEDOMETER - TACHOMETER
TS250 1976 (A) USA (E03)

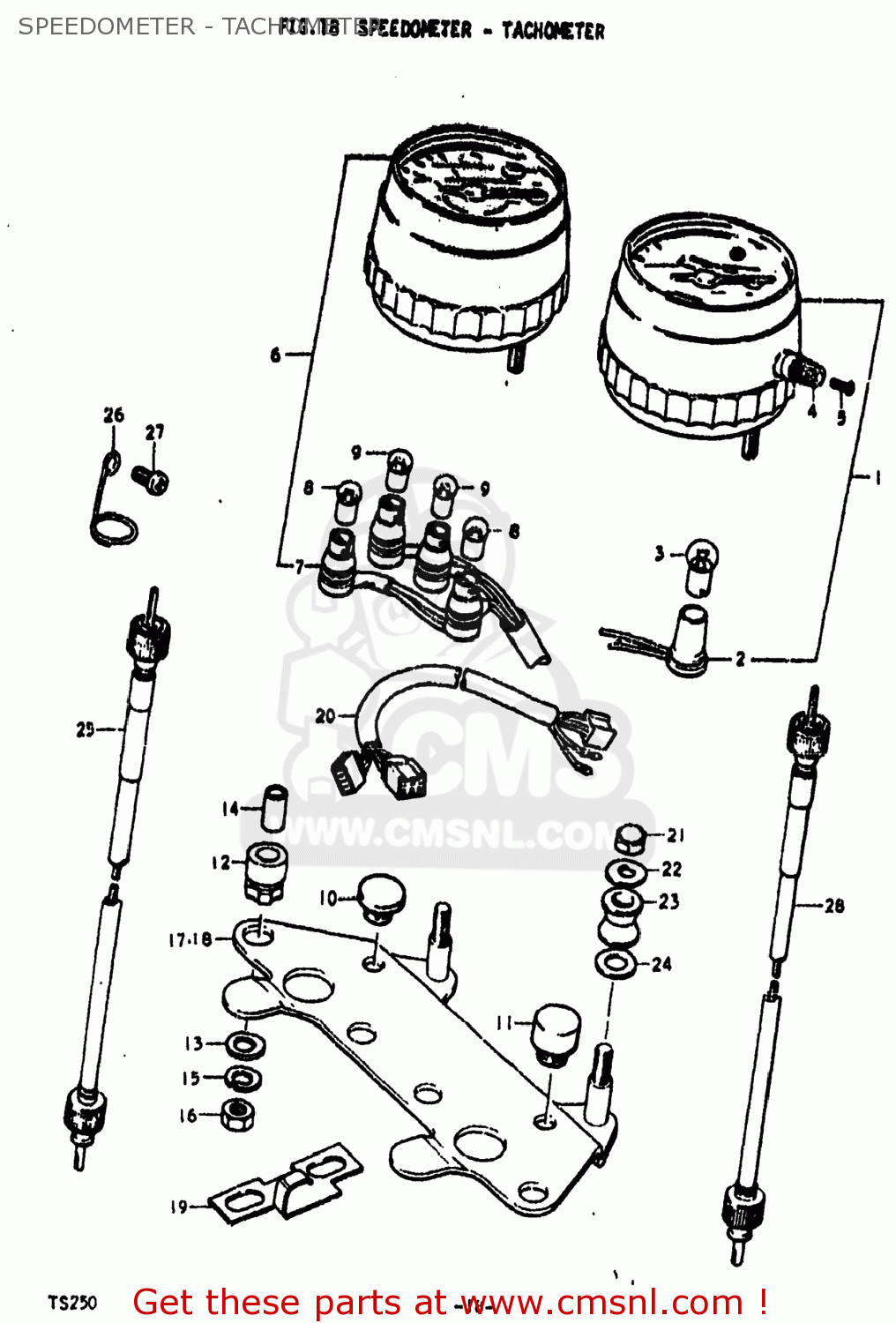

Speedometer - tachometer diagram TS250 1976 (A) USA (E03)
SPEEDOMETER - TACHOMETER TS250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
3410030601
ref: 0
SPEEDOMETER ASSEMBLY
€ 143.50
1-1
3410030621
ref: 1-1
SPEEDOMETER ASSEMBLY
€ 104.00
1-2
3410130600
ref: 1-2
SPEEDOMETER ASSEMBLY
€ 115.00
2-1
3417318620
ref: 2-1
SOCKET,METER
€ 0.00
2-2
3417030320
ref: 2-2
SOCKET,METER
€ 0.00
3
0947106002
ref: 3
BULB(6V/3W)
€ 2.50
4
3498030610
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
5
3498133600
ref: 5
09139-02003
ROTOR,SPEED
€ 2.00
6-1
3420030621
ref: 6-1
34200-30621-999
TACHOMETER ASSEMBLY
€ 79.00
6-2
3420130321
ref: 6-2
34200-30621-999
METER,TACHOMETER
€ 79.00
7-1
3417030020
ref: 7-1
SOCKET,METER
€ 0.00
7-2
3417032021
ref: 7-2
SOCKET,METER
€ 16.00
8
0947106002
ref: 8
BULB(6V/3W)
€ 2.50
8
0947106002
ref: 8
BULB(6V/3W)
€ 2.50
9
0947106001
ref: 9
BULB(6V1.7W,STANLEY,A61A)
€ 2.50
9
0947106001
ref: 9
BULB(6V1.7W,STANLEY,A61A)
€ 2.50
10
3495516420
ref: 10
CUSHION,METER NO.1
€ 4.00
11
3495616420
ref: 11
CUSHION,METER
€ 3.00
12
3495716420
ref: 12
CUSHION,METER
€ 5.00
13
0916006007
ref: 13
09160-06084
WASHER
€ 2.00
14-1
3497216420
ref: 14-1
SPACER,METER
€ 2.00
14-2
3497232020
ref: 14-2
SPACER,METER
€ 2.00
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16
0831111068
ref: 16
08310-00067
NUT
€ 2.50
17
3495030621
ref: 17
BRACKET,METER
€ 17.50
18
3495032020
ref: 18
BRACKET,METER
€ 11.50
19
3496130320
ref: 19
COVER,METER,UNDER
€ 5.50
20
3417530700
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 27.50
21
0831311067
ref: 21
08313-10067
NUT
€ 2.00
22
0916006007
ref: 22
09160-06084
WASHER
€ 2.00
23
3495615100
ref: 23
CUSHION
€ 4.00
24
0832221088
ref: 24
08322-01087
WASHER
€ 2.00
25
3494030031
ref: 25
34940-29902
CABLE ASSEMBLY,TACHOMETER
€ 39.00
26
3494930000
ref: 26
34949-30002
CLIP,TACHOMETER CABLE
€ 15.50
27
0211206108
ref: 27
02112-06107
SCREW
€ 1.50
28
3491030031
ref: 28
34910-18990
CABLE ASSEMBLY,SPEEDOMETER
€ 29.00
