HEADLAMP
TS250 1976 (A) USA (E03)

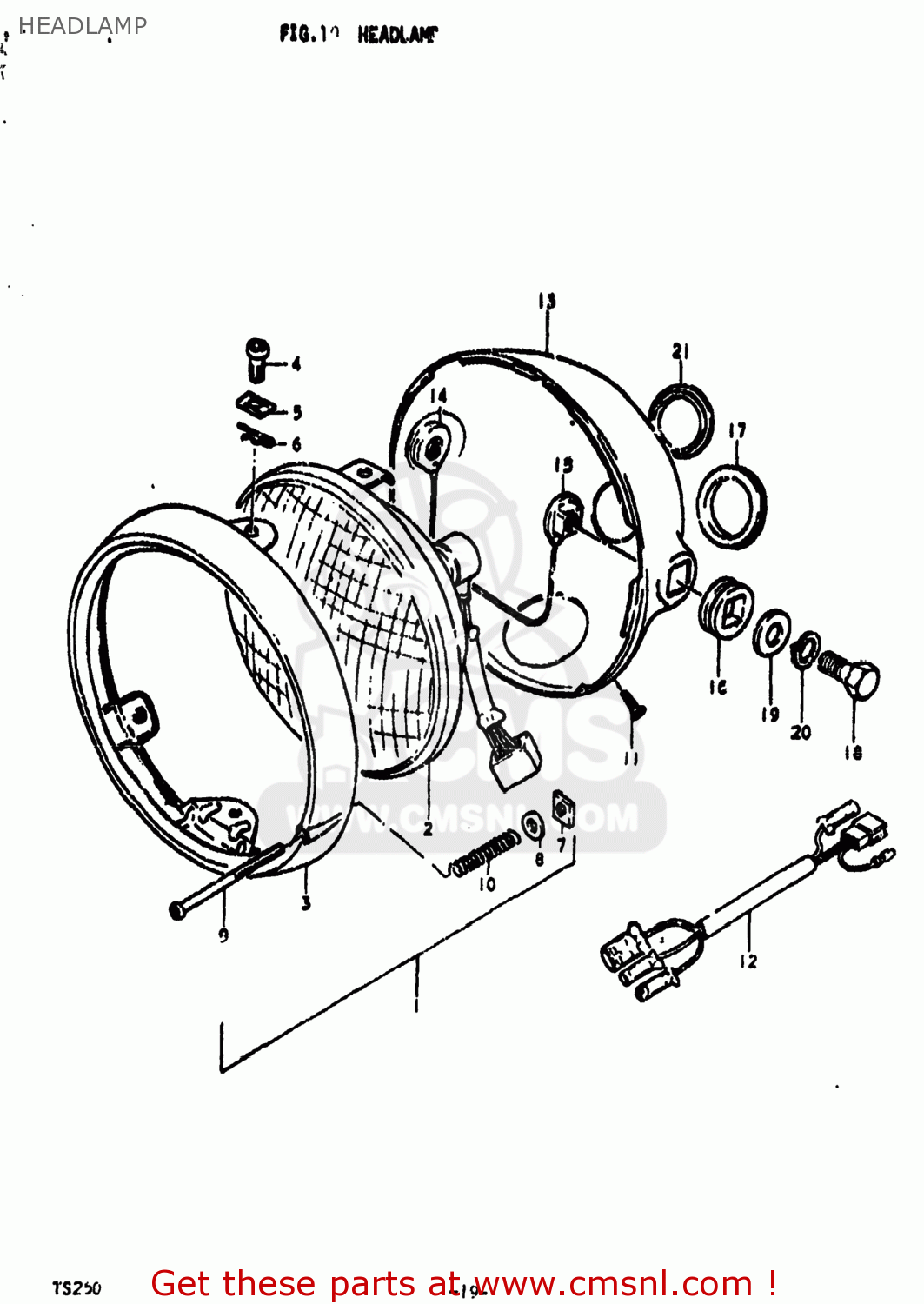

Headlamp diagram TS250 1976 (A) USA (E03)
HEADLAMP TS250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510027630
ref: 1-1
HEADLAMP ASSEMBLY
€ 54.50
1-2
3510027631
ref: 1-2
HEADLAMP ASSEMBLY
€ 62.00
2-1
3512127630
ref: 2-1
LAMP UNIT
€ 42.00
2-2
3512127631
ref: 2-2
LAMP UNIT
€ 74.50
3
3511127630
ref: 3
RIM,HEADLAMP
€ 29.50
4-1
3513619610
ref: 4-1
SCREW,LENS
€ 0.00
4-2
0211105087
ref: 4-2
02112-05087
SCREW
€ 2.00
5
3513512610
ref: 5
35155-48510
NUT,ADJUSTING
€ 2.00
6
3513727620
ref: 6
CUSHION,HEADLAMP
€ 2.00
7
3515527630
ref: 7
35135-45600
NUT,HEADLAMP ADJUSTER
€ 3.00
8-1
0832221048
ref: 8-1
08322-01047
WASHER
€ 2.00
8-2
3515727630
ref: 8-2
WASHER
€ 2.50
9
3515127630
ref: 9
35151-45230
SCREW,HEADLAMP ADJUST
€ 3.50
10
3515427630
ref: 10
SPRING,HEADLAMP ADJUST
€ 3.50
11
0223105128
ref: 11
02122-05127
SCREW(5X12)
€ 2.50
12
3685230000
ref: 12
WIRE
€ 8.00
13-1
5181030000
ref: 13-1
HOUSING,HEADLAMP
€ 72.00
13-2
5181027300126
ref: 13-2
51810-27300-737
HOUSING COMP,HEADLAMP
€ 54.00
13-3
5181027300291
ref: 13-3
51810-27300-737
HOUSING COMP,HEADLAMP
€ 54.00
14-1
5182127301
ref: 14-1
SPACER, HOUSING RH
€ 9.00
14-1
5182127300
ref: 14-1
SPACER, HOUSING RH
€ 9.00
14-2
5182127301
ref: 14-2
SPACER, HOUSING RH
€ 9.00
14-2
5182127301
ref: 14-2
SPACER, HOUSING RH
€ 9.00
14-2
5182127301
ref: 14-2
SPACER, HOUSING RH
€ 9.00
14-2
5182127301
ref: 14-2
SPACER, HOUSING RH
€ 9.00
15-1
5182227300
ref: 15-1
SPACER, HOUSING LH
€ 9.00
15-1
5182227300
ref: 15-1
SPACER, HOUSING LH
€ 9.00
15-2
5182227301
ref: 15-2
SPACER, HOUSING LH
€ 9.00
15-2
5182227301
ref: 15-2
SPACER, HOUSING LH
€ 9.00
16-1
5182727300
ref: 16-1
CUSHION,HEADLAMP HOUSING
€ 3.00
16-1
5182727300
ref: 16-1
CUSHION,HEADLAMP HOUSING
€ 3.00
16-2
5182727301
ref: 16-2
51827-27302
CUSHION,HEADLAMP HOUSING
€ 3.00
17
5184531031
ref: 17
GROMMET,HEADLAMP HOUSING
€ 4.00
17
5184531031
ref: 17
GROMMET,HEADLAMP HOUSING
€ 4.00
18-1
0112208208
ref: 18-1
01500-08207
BOLT
€ 3.00
18-2
0122108207
ref: 18-2
01204-08207
BOLT
€ 3.00
19
0832211088
ref: 19
08322-01087
WASHER
€ 2.00
20
0832121088
ref: 20
08321-01087
LOCK WASHER
€ 2.00
21
0925040001
ref: 21
CAP
€ 2.50
