FUEL TANK
TS250 1976 (A) USA (E03)

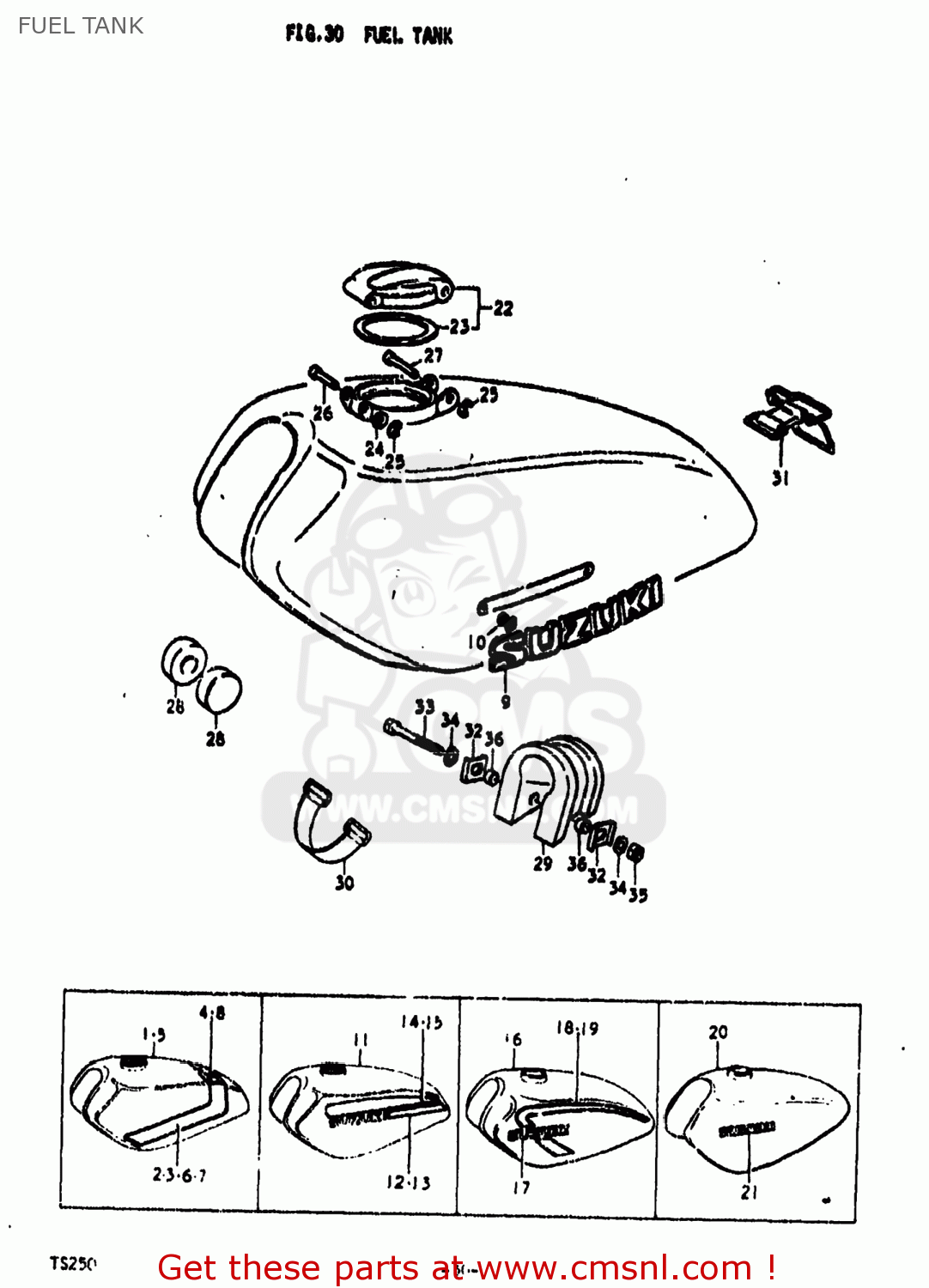

Fuel tank diagram TS250 1976 (A) USA (E03)
FUEL TANK TS250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4411030610709
ref: 1
TANK ASSEMBLY,FUEL
€ 89.00
2
6811530600719
ref: 2
68100-30830-719
TAPE,FUEL TANK
€ 17.50
3
6812530600719
ref: 3
68100-30830-719
TAPE,FUEL TANK
€ 17.50
4
6811830000719
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
4411030610714
ref: 5
TANK ASSEMBLY,FUEL
€ 89.00
6
6811530600722
ref: 6
68100-30830-722
TAPE,FUEL TANK
€ 15.00
7
6812530600722
ref: 7
68100-30830-722
TAPE,FUEL TANK
€ 15.00
8
6811830000722
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
6811128600
ref: 9
EMBLEM
€ 7.50
10
0914804005
ref: 10
NUT
€ 2.50
11
4411030300293
ref: 11
TANK ASSEMBLY,FUEL
€ 89.00
12
6811130300742
ref: 12
68111-28400-742
EMBLEM
€ 7.00
13
6812130300742
ref: 13
68121-28400-742
EMBLEM,FUEL TANK
€ 7.50
14
6811530300002
ref: 14
68100-30840-002
TAPE,FUEL TANK
€ 17.00
15
6812530300002
ref: 15
68100-30840-002
TAPE,FUEL TANK
€ 17.00
16
441103063060B
ref: 16
TANK ASSEMBLY,FUEL
€ 158.50
17
6811126610019
ref: 17
68111-27610-019
EMBLEM
€ 7.50
18
6811530610996
ref: 18
68100-30850-996
TAPE,FUEL TANK
€ 20.50
19
6812530610996
ref: 19
68100-30850-996
TAPE,FUEL TANK
€ 20.50
20
4411030641293
ref: 20
44110-30641-737
TANK ASSEMBLY,FUEL
€ 158.50
21
6811125610538
ref: 21
EMBLEM,FUEL TANK
€ 10.00
22
4420033011
ref: 22
44200-330V1
CAP ASSEMBLY,FUEL TANK
€ 122.00
23
4424833011
ref: 23
GASKET (NAS)
€ 17.50
24
4423833010
ref: 24
WASHER
€ 4.00
25
0938302003
ref: 25
E RING
€ 2.00
26
4423933010
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
27
4423333010
ref: 27
PIN,FUEL TANK C
€ 2.50
28
0932910007
ref: 28
CUSHION
€ 3.00
29
4454130000
ref: 29
CUSHION,FUEL TANK,REAR
€ 8.00
30
0946200064
ref: 30
BAND
€ 9.50
31
0946200007
ref: 31
BAND
€ 5.00
32
4454930000
ref: 32
CLIP
€ 2.50
33
0111206508
ref: 33
01500-06507
BOLT
€ 3.00
34
0832211068
ref: 34
08322-0106B
WASHER 6MM
€ 2.00
35
0831111068
ref: 35
08310-00067
NUT
€ 2.50
36
0918006032
ref: 36
09180-06246
SPACER (6.1X8X5.2)
€ 2.50
